AVS Electronics ONE PA - Sensor Coverage and Detection; Coverage Patterns

- 20 -
.
2,20 m
.
.
E
N
G
Receiving channels

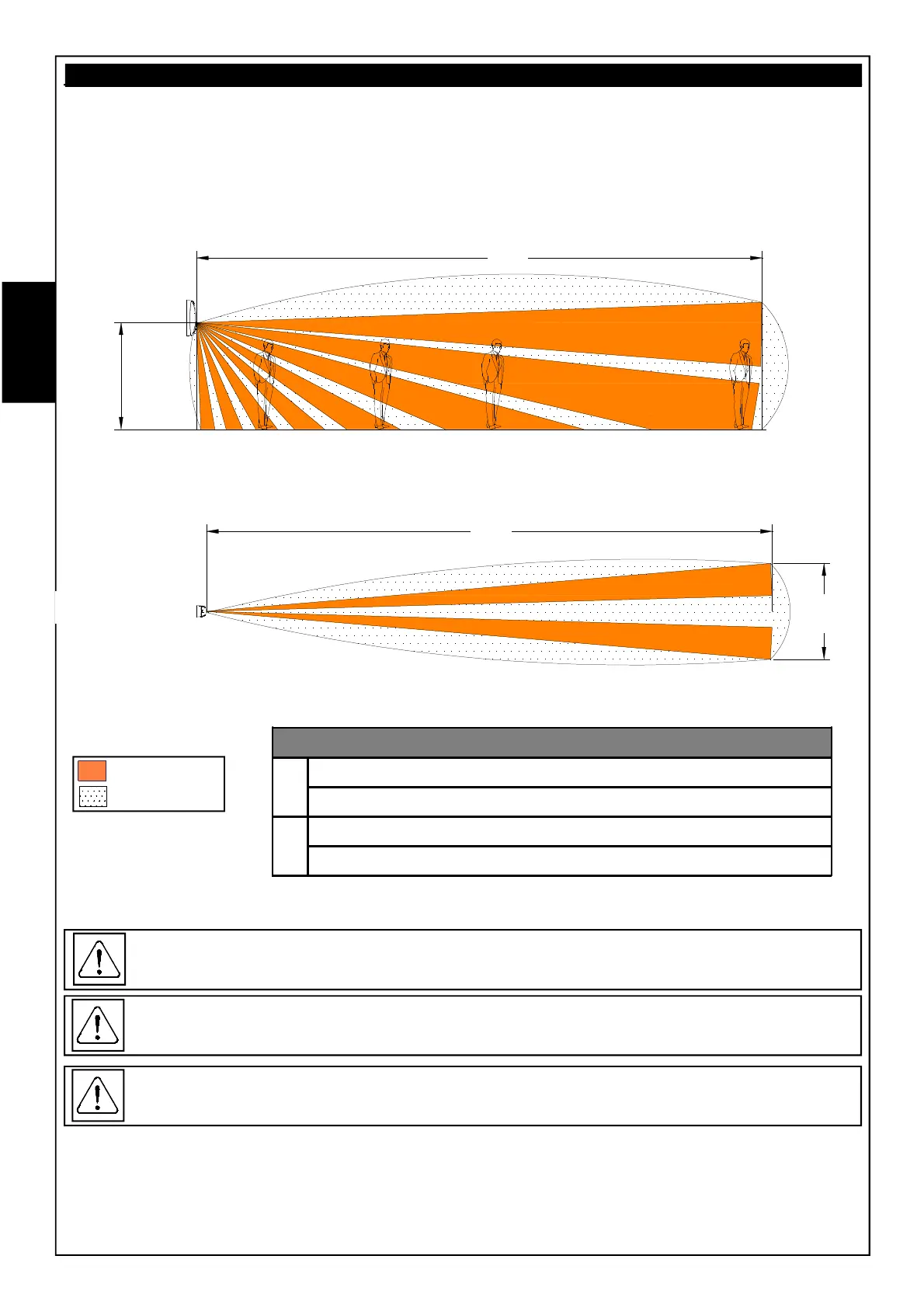

The sensors have a lens that provides curtain coverage of a maximum of 12 metres for the One DT and OnE DT HP
sensors and 8 metres for the OnE PA, OnE PA HP and OnE PA WS sensors with an angle of detection of about 10°.
The special shape of the lens also protects the area below (as shown in the figure).
The reference to the microwave section in the drawings is to the OnE DT and OnE DT HP models
The range of the infrared section could be significantly different from that shown as a function of the
ambient temperature.
The OnE DT and OnE DT HP models are recommended for outdoor protection.
Avoid:
• subjecting the receiving channels to high sources of heat such as radiators, windows, etc.
• placing the pyroelectric sensor in direct sunlight
• hanging objects that could swing back and forth in the field of protection
• touching the pyroelectric sensor with your fingers
INFRARED
MICROWAVE
P
P
L
COVERAGE
P
12 metres for OnE DT and OnE DT HP
8 metres for OnE PA, OnE PA HP and OnE PA WS
L
2 metres for OnE DT and OnE DT HP
1,8 metres for OnE PA, OnE PA HP and OnE PA WS
Side wiev
Sensor
Overhead wiev
Sensor
