AVS Electronics ONE PA - One WS

- 58 -
E
S
P

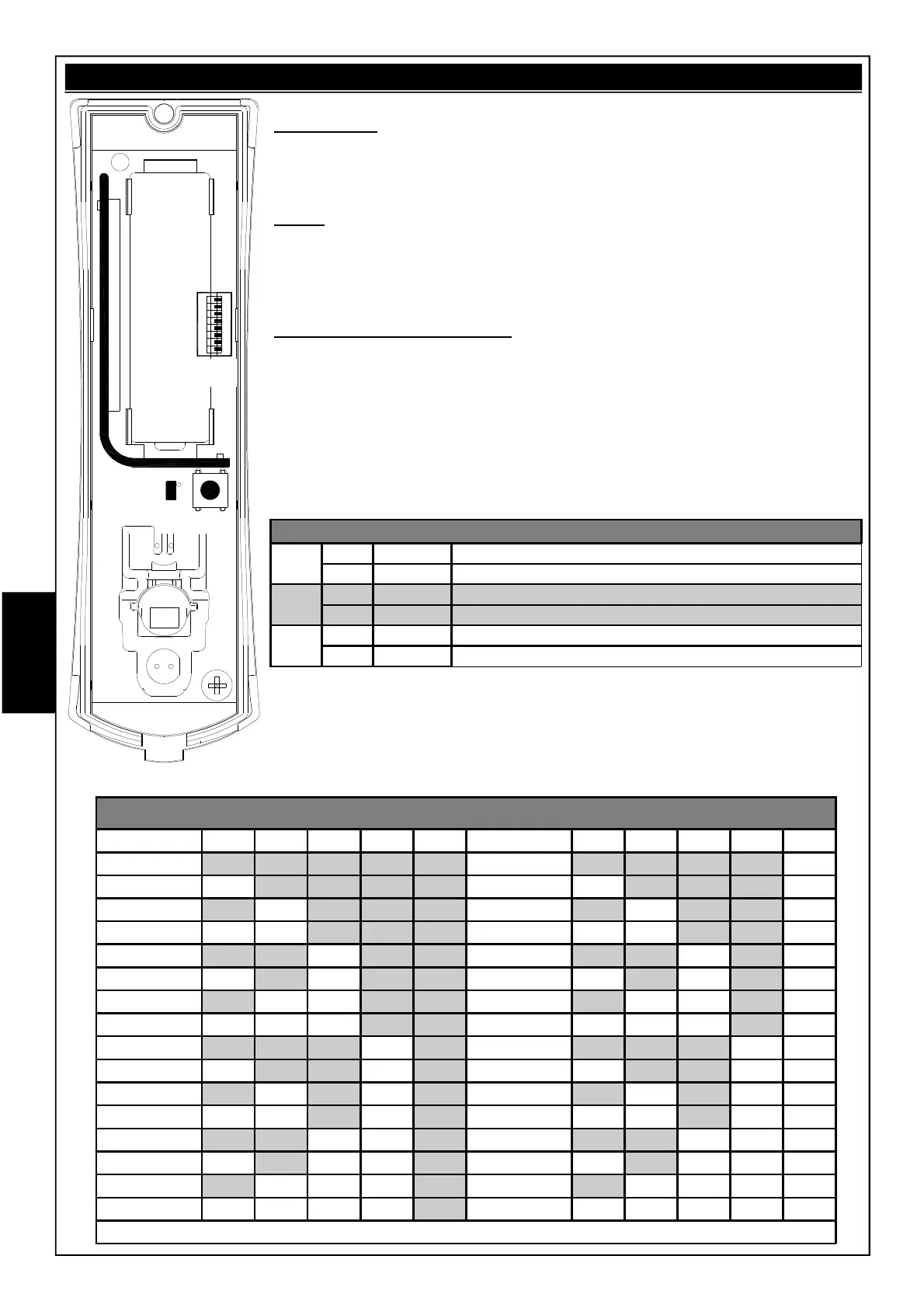

SW1 - DIRECCIÓN SENSOR
Sensor DIP1 DIP2 DIP3 DIP4 DIP5 Sensor DIP1 DIP2 DIP3 DIP4 DIP5
1
ON ON ON ON ON
17
ON ON ON ON OFF
2
OFF ON ON ON ON
18
OFF ON ON ON OFF
3
ON OFF ON ON ON
19
ON OFF ON ON OFF
4
OFF OFF ON ON ON
20
OFF OFF ON ON OFF
5
ON ON OFF ON ON
21
ON ON OFF ON OFF
6
OFF ON OFF ON ON
22
OFF ON OFF ON OFF
7
ON OFF OFF ON ON
23
ON OFF OFF ON OFF
8
OFF OFF OFF ON ON
24
OFF OFF OFF ON OFF
9
ON ON ON OFF ON
25
ON ON ON OFF OFF
10
OFF ON ON OFF ON
26
OFF ON ON OFF OFF
11
ON OFF ON OFF ON
27
ON OFF ON OFF OFF
12
OFF OFF ON OFF ON
28
OFF OFF ON OFF OFF
13
ON ON OFF OFF ON
29
ON ON OFF OFF OFF
14
OFF ON OFF OFF ON
30
OFF ON OFF OFF OFF
15
ON OFF OFF OFF ON
31
ON OFF OFF OFF OFF
16
OFF OFF OFF OFF ON
32
OFF OFF OFF OFF OFF
Por DEFAULT, los sensores se suministran con los conectores DIP 1 a 5 en OFF (Sensor 32)
ON
1 2 3 4 5 6 7 8
SW1
TAMPER
L1
OnE WS
Alimentación:
OnE WS es suministrado con batería de litio 3.6 V 2,2Ah (Mod. AA).
Led L1
Parpadea aprox. 60 segundos a la primera alimentación y a cada transmisión de alarma
(tamper, antimask, supervivencia, etc.) efectuada por el sensor.
Consumo reducido (DIP 6: OFF).
En respuesta a una transmisión de una alarma, el sensor sigue analizando el ambiente
que protege, pero no realiza ninguna transmisión adicional si no después de un período
de aproximadamente 3 minutos en el que no detecta nada.
SW1 - FUNCIONES
DIP 6
ON DEFAULT
Consumo Normal (stand-by: 5 segundos)
OFF
Consumo Reducido (stand-by: 3 minutos + led desactivado)
DIP 7
ON Sensibilidad reducida
OFF DEFAULT Sensibilidad normal
DIP 8
ON
Habilita Tamper Acelerómetro
OFF DEFAULT
Deshabilita Tamper Acelerómetro
