Front and Rear Panel
1. Front panel
2. Rear panel

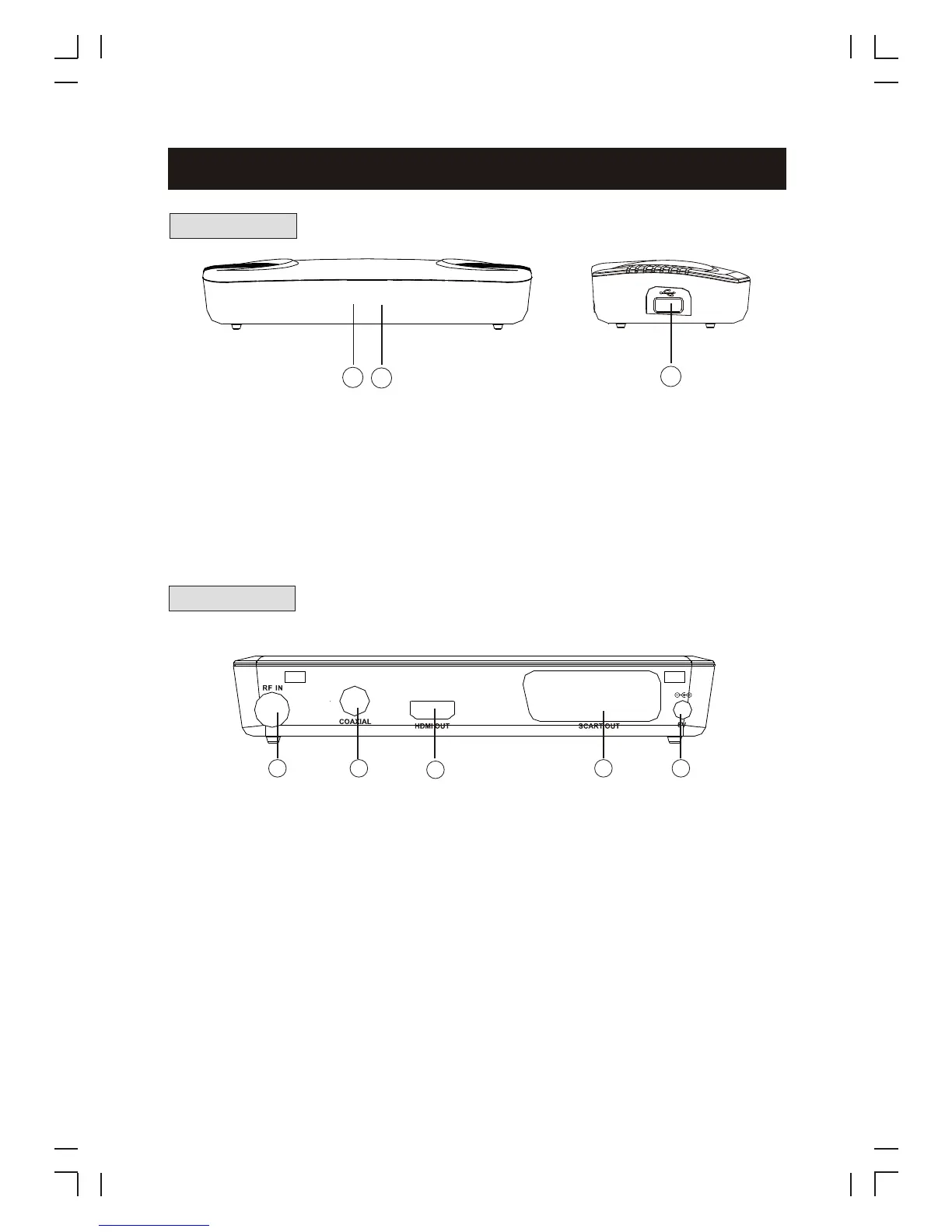

1.STANDBY INDICATOR: Used to visually show power state of the set top box, the green
LED will be light if turned on the set top box and the red LED will be light if the set top box
entered standby mode.
2. REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.
3. USB JACK(Optional): Used to connect to an external USB 2.0 device.
Note: Not all receivers have the USB Jack.
2
3
1
1. RF IN : This socket connects to your external aerial.
2. COAXIAL: This socket connects to a coaxial socket on your surround sound system.
3. HDMI OUT This socket connects to HDMI in device.
4. SCART OUT: This socket connects to your TV.
5. DC IN 5V: Used to connect the 5V DC adapter.*1
Note:
*1. If an external hard disk is connected to the USB port, suggest to use the adapter
which supply DC5V/1.5A that is not provided.
1 2
3
4 5
2
