Operation instructions | EOC 1-32 | EOC 2-32 | Ethernet over Coax | Peer to Peer
14 2020-10-09 | Technical improvements, changes in design, printing- and other errors expected.

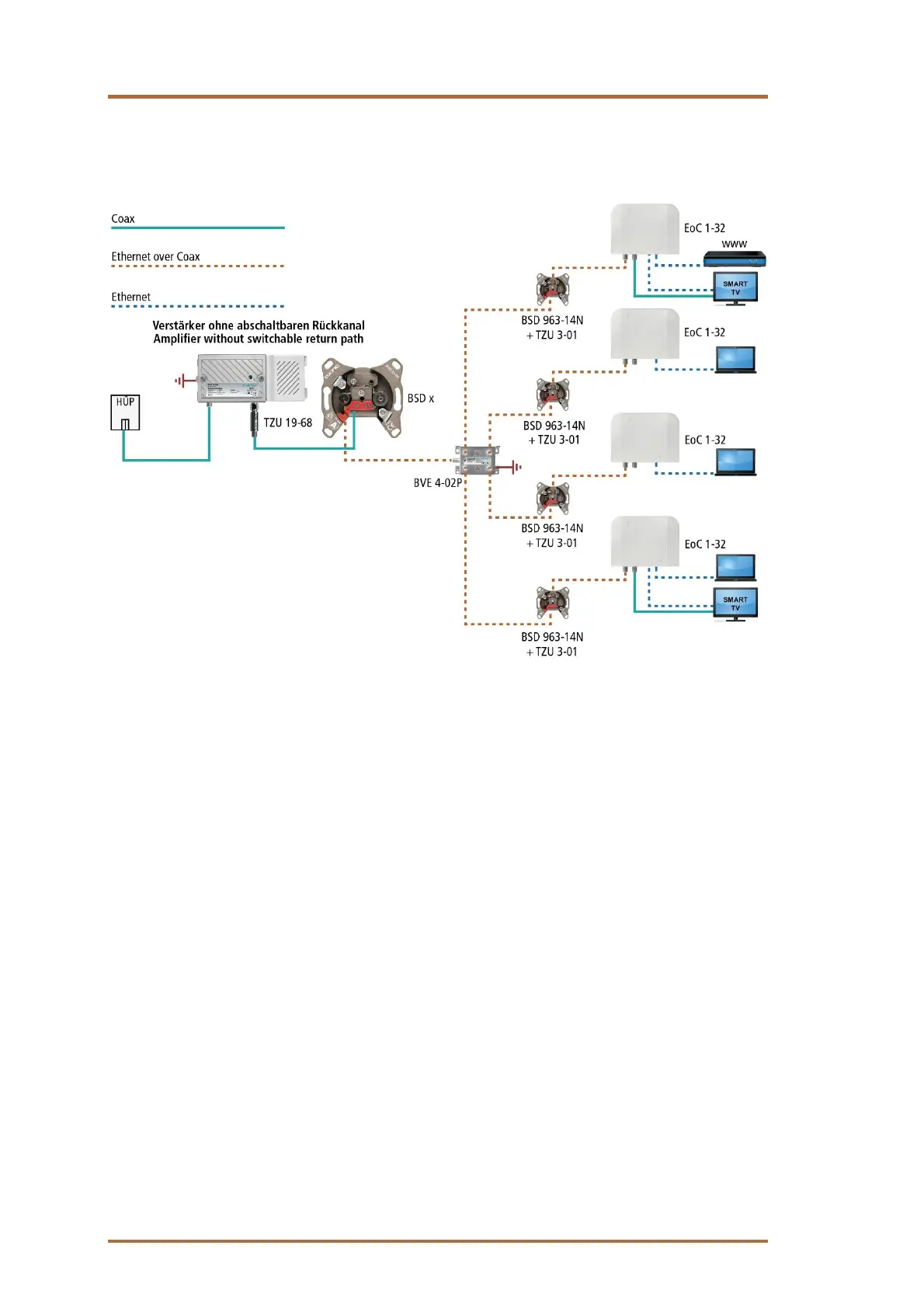

4.2.2. Amplifier without switchable return path
If it is not possible to switch off the return path, a high-pass filter TZU 19-68 and a BSD x antenna wall outlet
must be installed at the output of the amplifier.
Important: The use of a BSD x antenna socket and the high-pass filter TZU 19-68 is mandatory in
order to achieve sufficient blocking depth for the frequency range from 5...204 MHz. Otherwise it
may cause interferences in the cable network.
