AXIS 225FD Installation Guide Page 5
Description
Notes:
• Use cables, cable glands and conduits that are suitable for the installation and that are in
compliance with the IP66 rated, outdoor-proof, vandal resistant design of the AXIS 225FD.
• Conduit dimensions: NTP 3/4" -14 (Pipe thread).
• Use silicon sealant on both the conduit and the plug to prevent moisture from leaking into
the casing.

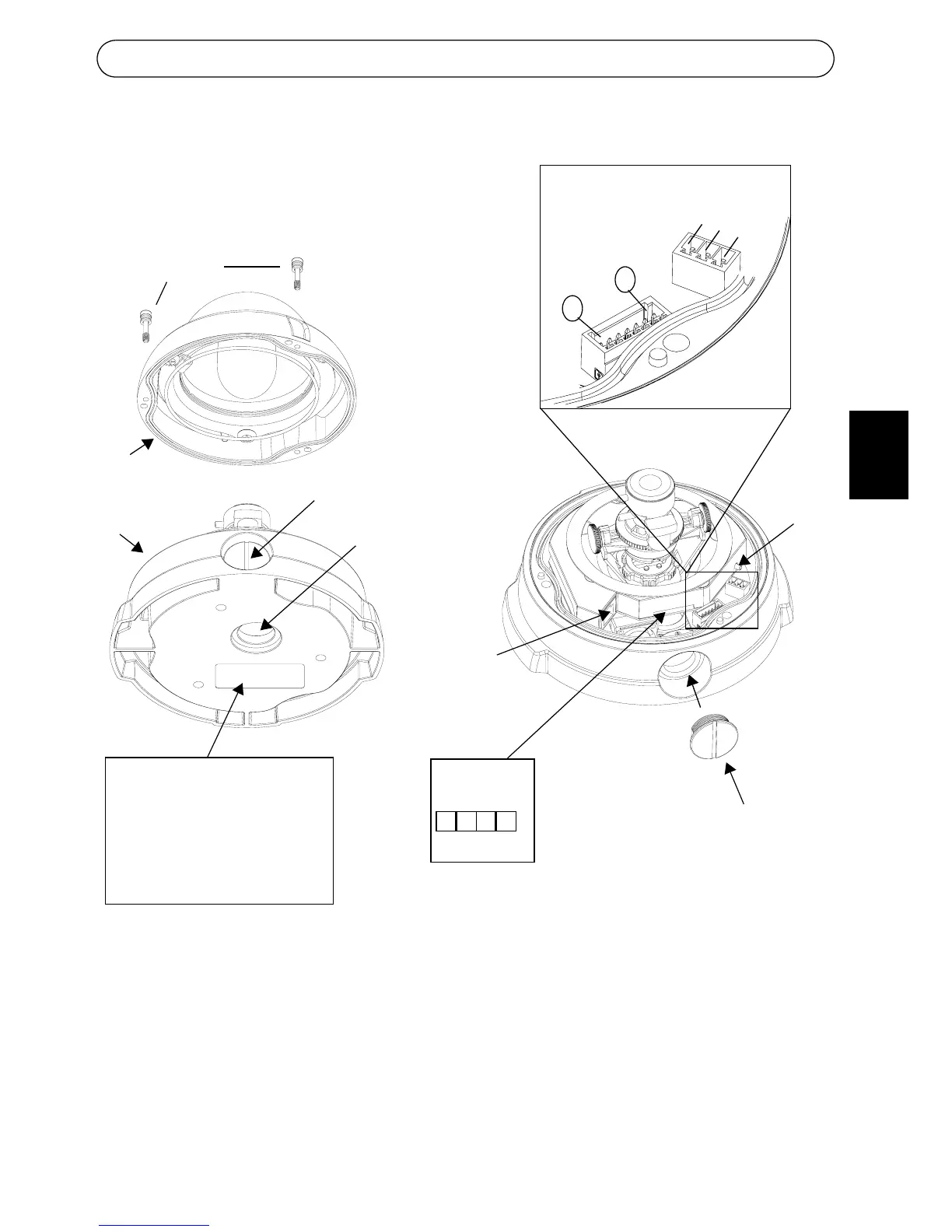

Conduit hole
Conduit hole
Network
connector
Serial number (S/N)
Control
Conduit hole
and plug
LED
indicators
(see table 2)
1
2
3
4
Please make a note of the
The serial number is required
during the installation.
serial number and retain
for future reference.
1
7
button
Power connector block
(see table 1)
I/O terminal
block
G
N
D
+
o
r
AC
A
C
(side)
(bottom)
Tamper-proof
screws
Unit casing
Dome casing
ENGLISH
