26.

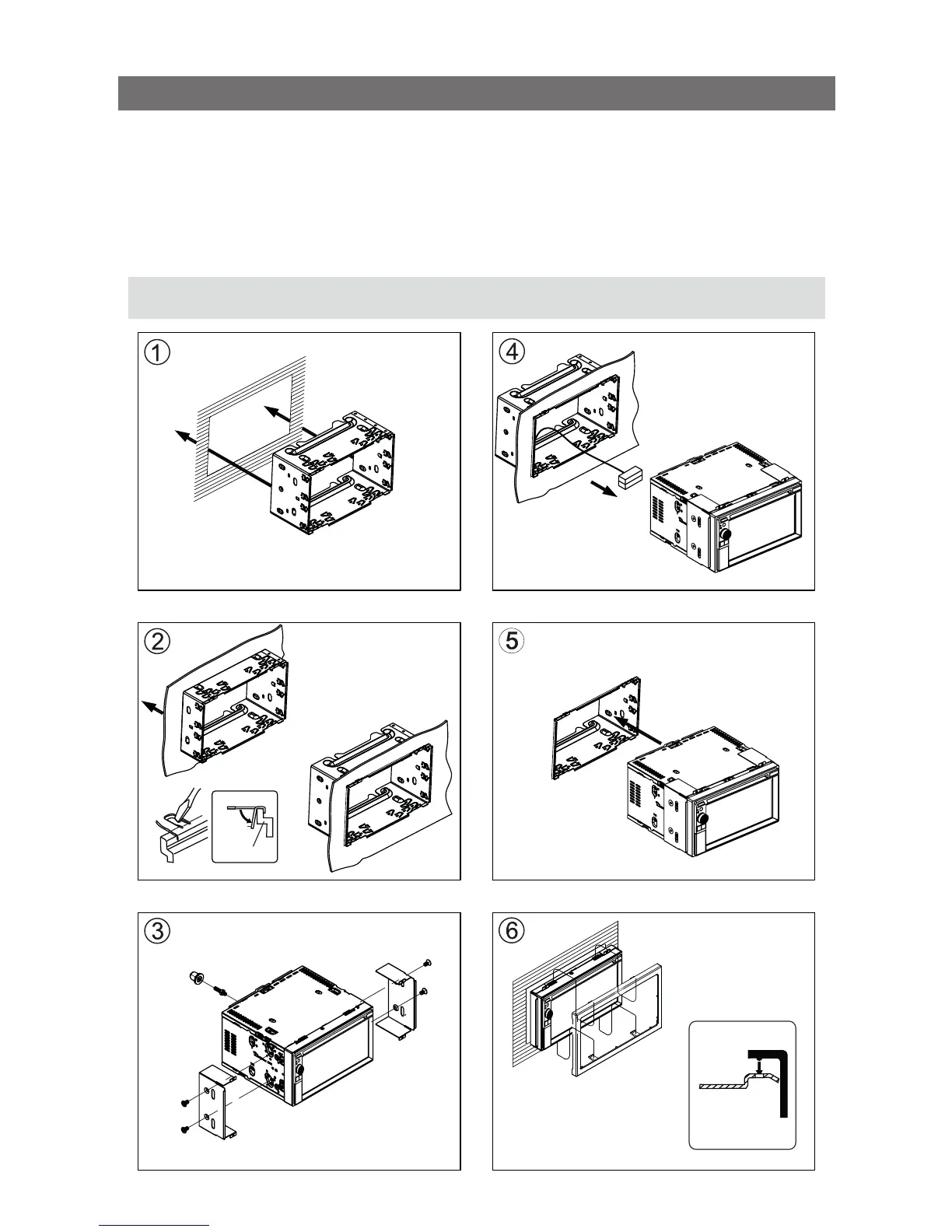

Installation
Using the Cosmetic Trim Ring
One cosmetic trim ring is packaged with the head unit for installation flexibility. This unit will fit into
most import dashes with little or no modification to the dashboard/cavity. Some domestic vehicle
dashes will accept a Double-DIN chassis, but there is usually a small gap between the radio and
dash piece after installation is complete. In this case, use the appropriate trim ring to conceal any
gaps that may be present.
Note:
For proper operation of the CD/DVD player, the chassis must be mounted within
30°
of horizontal.
Make sure the unit is mounted within this limitation.
