Axis Fixed Dome Network Camera AXIS P3301 - Hardware overview

Page 4 AXIS P3301/-V Installation Guide
Hardware overview
Product ID & Serial number (S/N).
The serial number may be
required during the installation.
Dimensions
HxWxD = 94 x 144 x 132mm (3.7" x 5.7" x 5.2")
Weight AXIS P3301 = 425g (0.94 lb) power supply excl.
Weight AXIS P3301-V = 580g (1.28 lb) power supply excl.

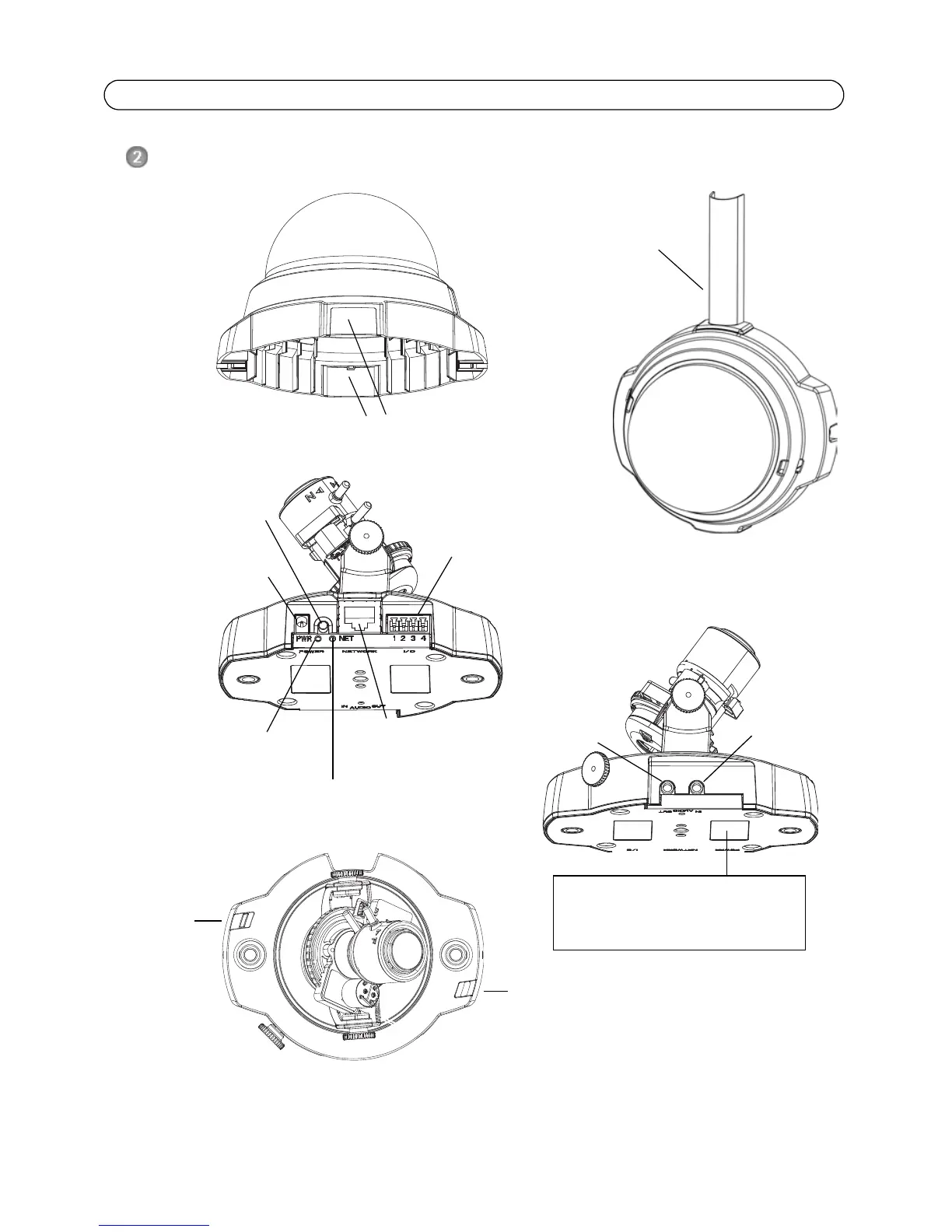

Cover plates
Network
indicator LED
Status
indicator
LED
Control button
Power connector
see page 13
Network
connector
see page 13
Power
indicator LED
Audio out
Audio in
Microphone
16mm cable conduit
(not supplied) fitted
to AXIS P3301-V
I/O terminal
connector
see page 13
