AXIS M1011/M1011-W/M1031-W Installation Guide Page 13
ENGLISH

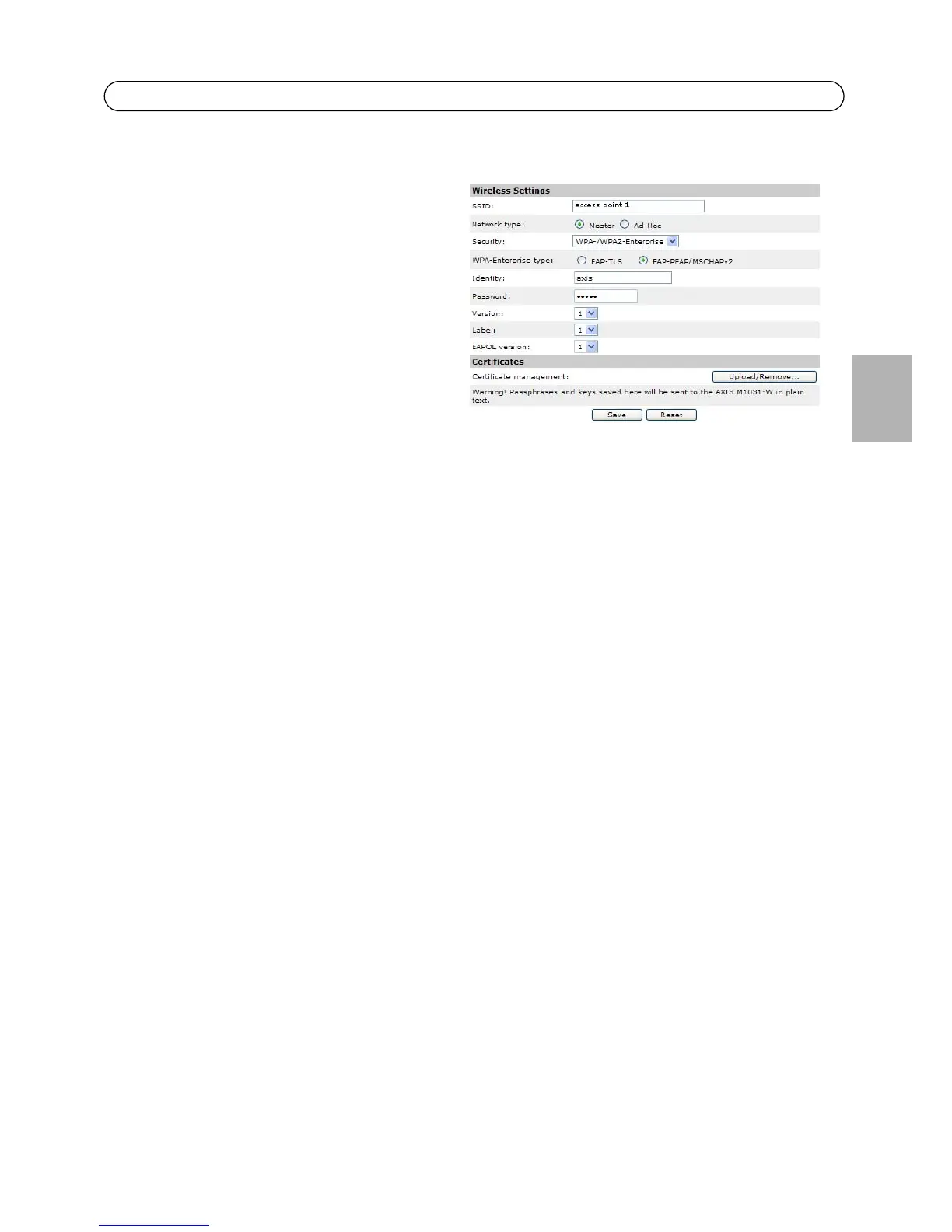

EAP-PEAP/MSCHAPv2
• Identity - Enter the user identity to
present to the network
• Password - Enter the password to
present to the network
• Version - Select the PEAP version used
at the access point
• Label - Select the label used by the
access point
• EAPOL version - Select version (1 or 2)
depending on the version used at the
access point
Certificates - Upload a CA certificate to present to the access point for authentication
WEP
Authentication - Select Open or Shared Key, depending on the method used by your access
point. Not all access points have this option, in which case they probably use Open System,
which is sometimes known as SSID Authentication.
Key length - This sets the length of the key used for the wireless encryption, 64 or 128 bit. The
encryption key length may also be shown as 40/64 and 104/128.
Key type - The available key types depend on the selected access point. The following options
are available in the camera:
• Manual - Allows you to manually enter the hex key.
• ASCII - The string must be exactly 5 characters for 64-bit WEP and 13 characters for 128-
bit WEP.
• Passphrase - In 64-bit WEP, the Passphrase generates 4 different keys. For 128-bit WEP,
only 1 key is generated, which is then replicated for all 4 keys. Key generation is not stan-
dardized and can differ from brand to brand. Check that the generated keys are identical to
those in your access point - if not, they must be entered manually.

Axis M1011 Specifications

General

Product color	White
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	94 g
Dimensions (WxDxH)	58.9 x 94.9 x 34.2 mm
