Page 4 AXIS M1011/M1011-W/M1031-W Installation Guide

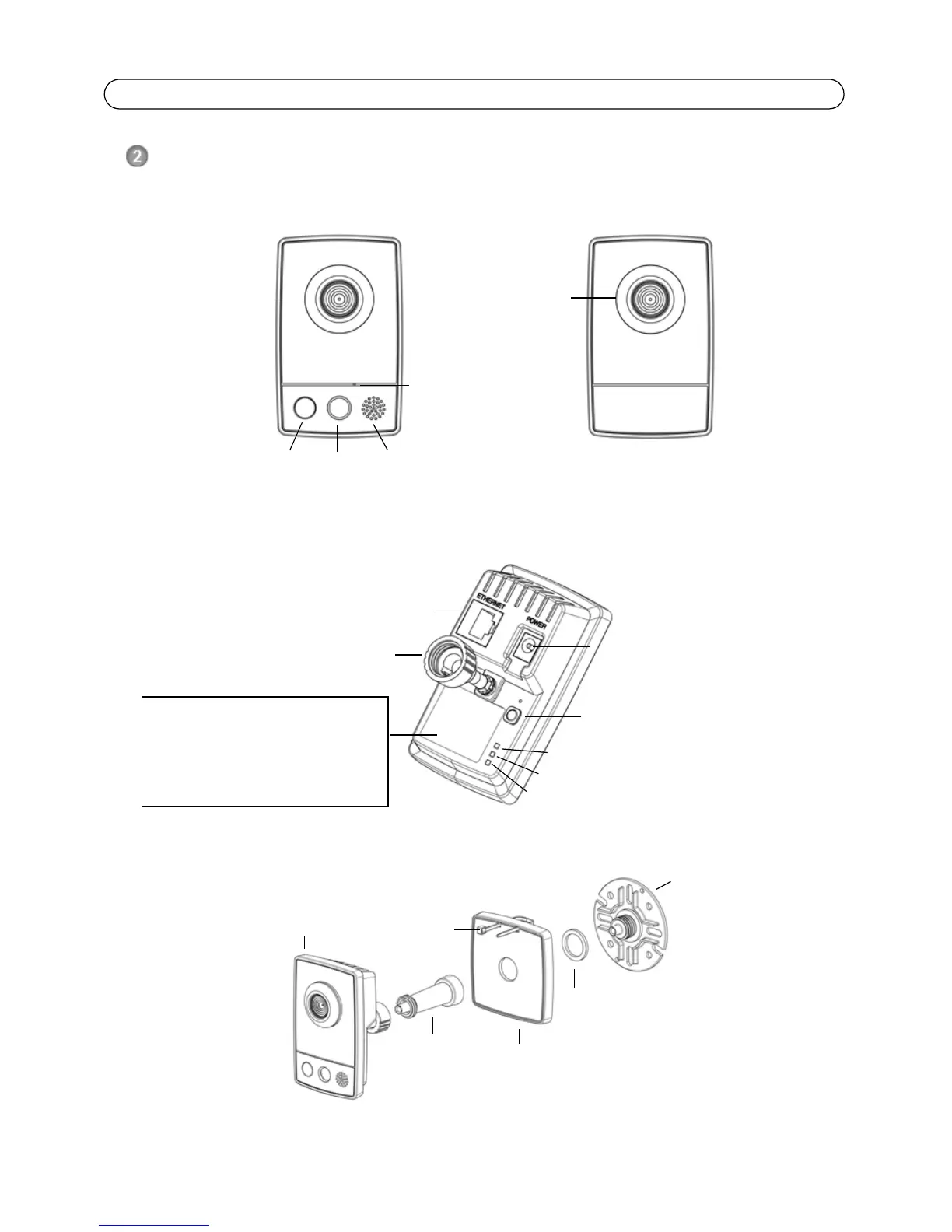

Hardware overview
Please refer to page 16 for details on the connectors and LED indicators.
Product number (P/N) &
The serial number may be
required during the installation.
Power connector
Control button
Network connector
Power Indicator LED
Network Indicator LED
Lock ring
Microphone
Light PIR
Wireless Indicator LED
(activated on wireless models only)
Lens with
Speaker
AXIS M1031-W
AXIS M1011/-W
Rear view
Status Indicator
LED
Lens with
Status Indicator
LED
(both models)
Cable tie
Base plate
Rubber washer
Stand
Extension
section
Network camera
Front view
Assembly
sensor
(optional)
Serial number (S/N).
