Axis M1011 User Manual

AXIS M1011/M1011-W/M1031-W Installation Guide Page 5
ENGLISH
Install the hardware
Mount the camera
AXIS M1011/M1011-W/M1031-W is shipped with the stand and extension section mounted.
Disassemble the stand and, depending on the intended installation, follow these instructions for
wall mounting or shelf mounting.
Wall mounting
1. Unscrew the extension section to release the base plate
from the stand.
2. Using the supplied screws, fix the base plate to a flat
(horizontal or vertical) surface.
3. Attach the stand and optionally the extension section.
4. Attach the camera, adjust the angle and tighten the lock
ring.
5. The stand is equipped with a cable tie to secure the cables
once connected.
Shelf mounting
1. Position the clamp and tighten the fixing screw securely.
2. Attach the lock ring on the camera to the clamp.
3. Adjust the camera angle and tighten the lock ring.
Connect the cables
1. Connect the camera to the network using a shielded net-
work cable.
AXIS M1011-W/M1031-W: If connecting to a wireless net-
work, the wired connection is temporary in order to config-
ure the camera’s wireless settings. See page 11 for more
information.
2. Connect the supplied indoor power adaptor to the power connector on the camera.
3. Check that the indicator LEDs indicate the correct conditions. See the table on page 16 for
further details. Note that some LEDs can be disabled and may be unlit.
4. Proceed to Assign an IP address, on page 6.
!
IMPORTANT!
AXIS M1011/M1011-W/M1031-W is not approved for outdoor use - the product
may be installed in indoor environments only.

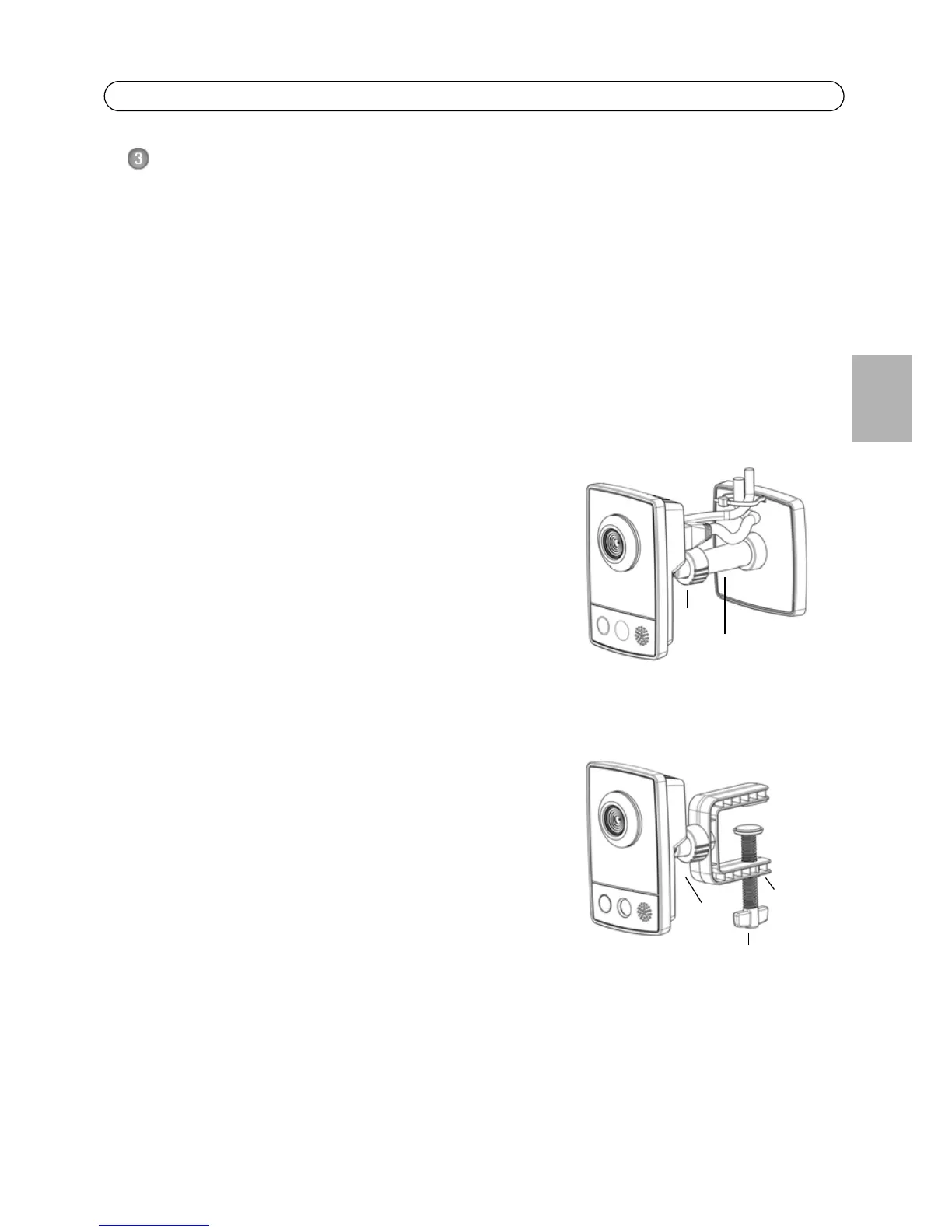

Lock
ring
Extension
section
Stand
AXIS M1031-W Wall mount
AXIS M1031-W Shelf mount
Clamp
Lock
ring
Fixing screw
(optional)

Axis M1011 Specifications

General

Product color	White
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Weight	94 g
Dimensions (WxDxH)	58.9 x 94.9 x 34.2 mm
