AXIS M7001 - Product Description
Overview
LED indicators
The LED indicators can be disabled, see page 32. Disabling the LEDs can be useful in covert surveillance situations.
LED Color Indication
Network Green Steady for connection to a 100 Mbit/s network. Flashes for network activity.
Amber Steady for connection to 10 Mbit/s network. Flashes for network activity.
Unlit No network connection
Status Green Steady green for normal operation.
Amber Steady during startup, during reset to factory default or when restoring settings.
Red Slow flash for failed upgrade.
Power Green Normal operation.
Amber Flashes green/amber during firmware upgrade.

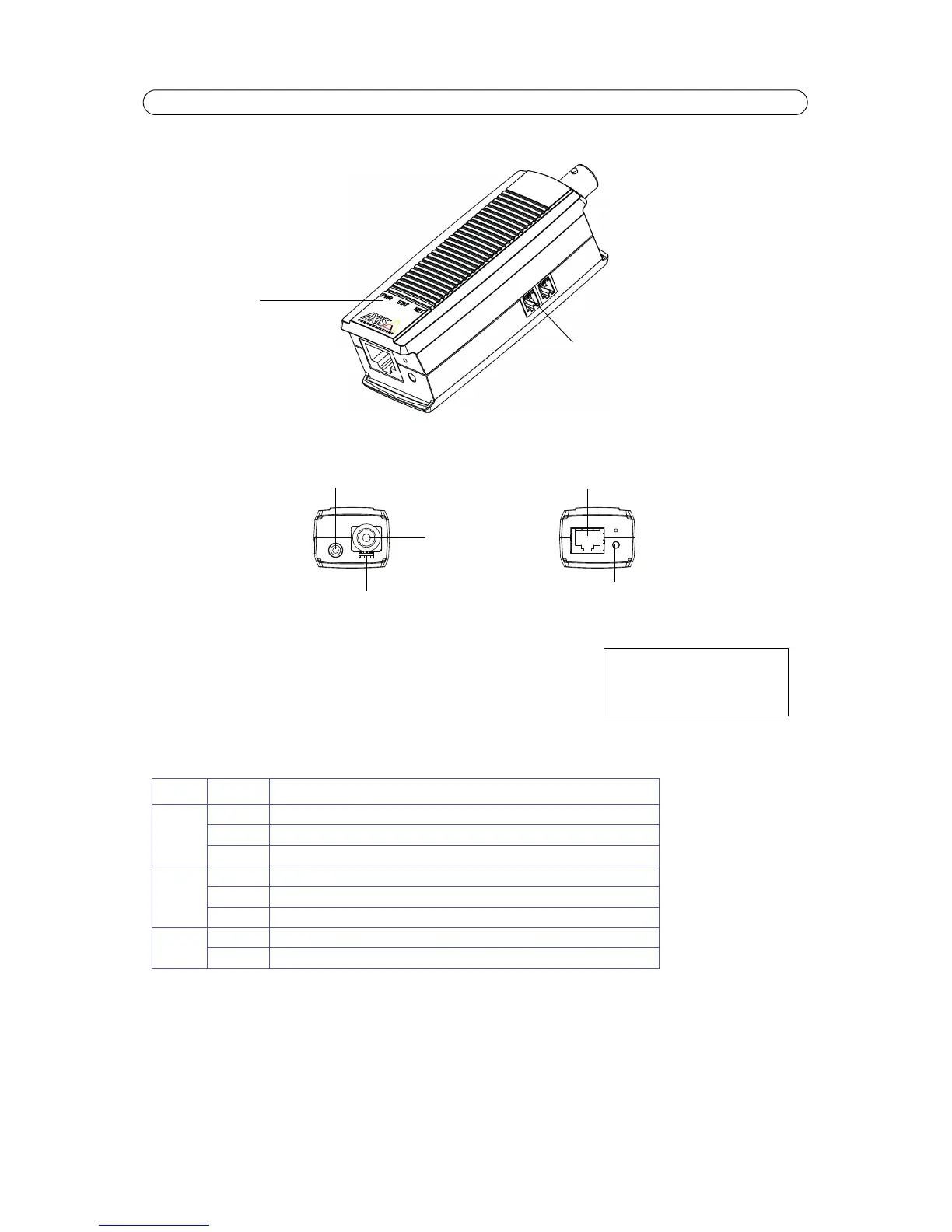

LED indicators for
power, status and network
Control button
RS-422/RS-485 connector
BNC connector
Network connector (PoE class 2)
Product ID & Serial number (S/N).
The serial number may be
required during the installation.
Product label includes:
2.5 mm tele plug connector
75 Ohm
termination switch

Axis M7001 Specifications

General

Cable length	1.5 m

Weight and Dimensions

Weight	82 g
Dimensions (WxDxH)	37.4 x 101 x 30.1 mm
