AXIS M7014/M7010 Installation Guide Page 13
ENGLISH

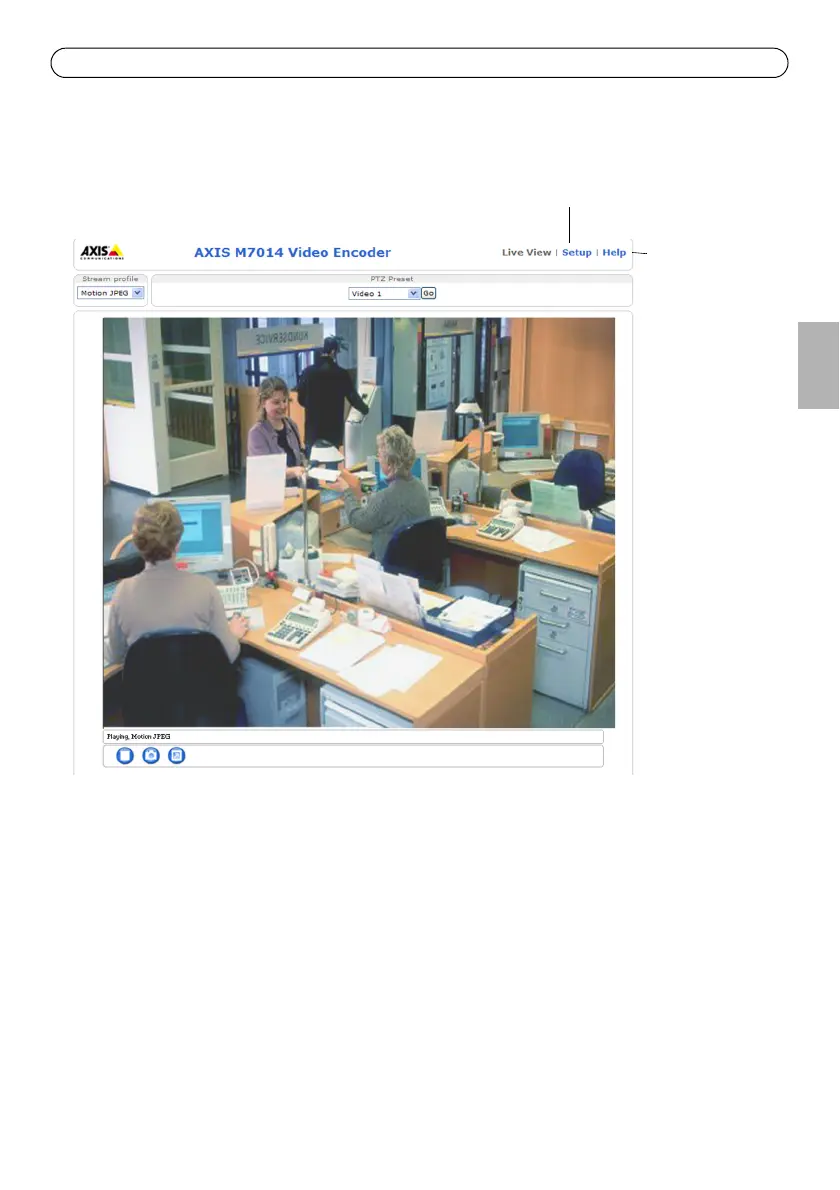

7. The Live View page of the AXIS M7014/M7010 is displayed. The Setup link leads to menus
which allow you to customize the encoder.
Notes:
• HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between web
browsers and servers. The HTTPS certificate controls the encrypted exchange of information.
• The default administrator user root cannot be deleted.
• If the password for root is lost or forgotten, the AXIS M7014/M7010 must be reset to the factory default
settings. See page 17.
Setup - Provides all the tools for configuring the encoder
to requirements.
Help - Displays
online help on all
aspects of using the
encoder.

Axis M7014 Specifications

General

Motion JPEG frame rate	15 fps
Maximum video resolution	720 x 576 pixels
PTZ control	Yes
Flash memory	128 MB
Image settings	Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation
Internal memory	512 MB
Angle of rotation	270 °
Built-in processor	ARTPEC-4
Security algorithms	802.1x RADIUS
Supported network protocols	IPv4/v6, HTTP, HTTPS, IEEE 802.1X QoS 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
BNC input ports	4
I/O terminal ports	-
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Power requirements	8-20 V DC
Power consumption (typical)	7 W
Certification	EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-1, EN61000-6-2, EN 60950-1, C-tick AS/NZS CISPR 22, FCC Part 15 B B, ICES-003 B, VCCI B, KCC B, UL/IEC/EN 60950-1

Weight and Dimensions

Weight	570 g
Dimensions (WxDxH)	172 x 109 x 37 mm
