Axis P1368-E - Page 27

AXIS P1368-E Network Camera
EN
1

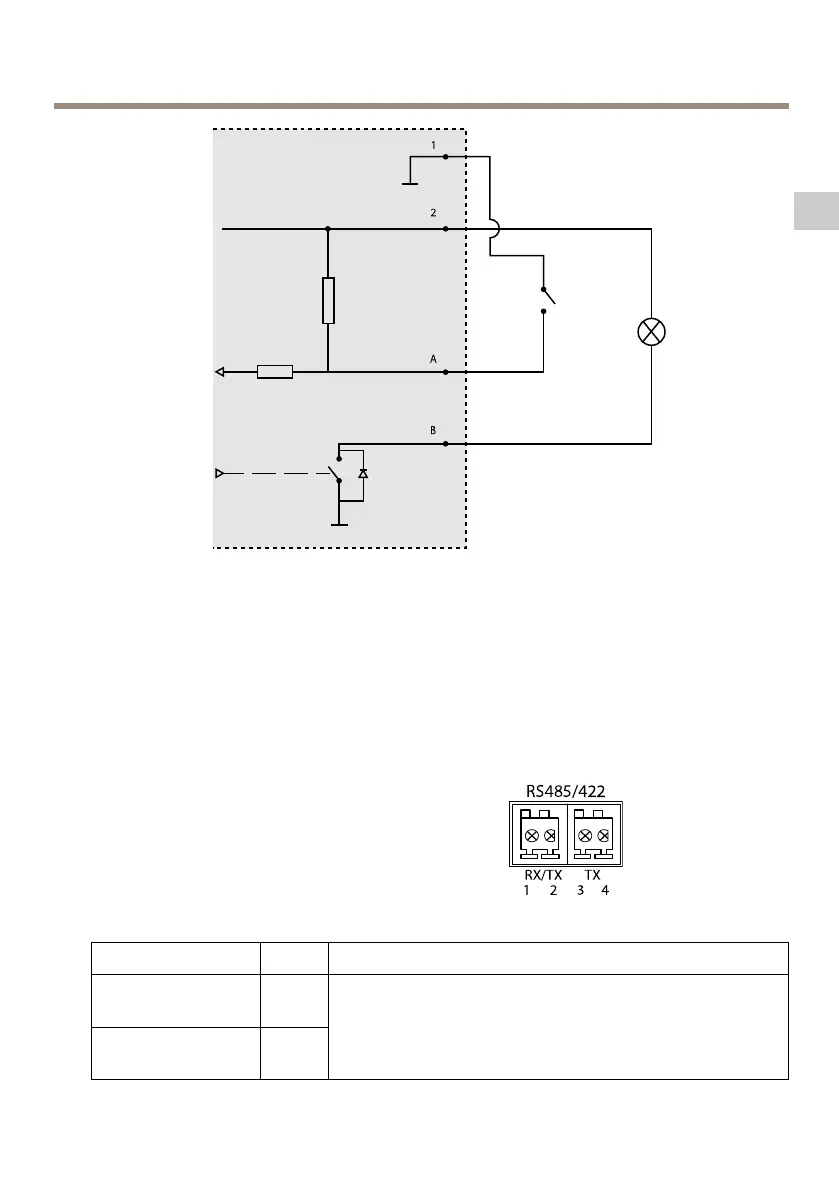

0 V DC (-)
2
DC output 12 V, max 50 mA
A
I/O congured as input
B
I/O congured as output
RS485/RS422 connector
Two 2-pin terminal blocks for RS485/RS422 serial interface used to control auxiliary equipment
such as pan-tilt devices.
The serial port can be congured to support:
• Two-wire RS485 half duplex
• Four-wire RS485 full duplex
• Two-wire RS422 simplex
• Four-wire RS422 full duplex point to point
communication
Function Pin Notes
RS485B alt
RS485/422 RX(B)
1
RX pair for all modes (combined RX/TX for 2-wire RS485)
RS485A alt
RS485/422 RX(A)
2
27
