Axis P3344-VE - Hardware Overview; Camera Unit

Page 6 AXIS P33-VE Series Network Camera Installation Guide

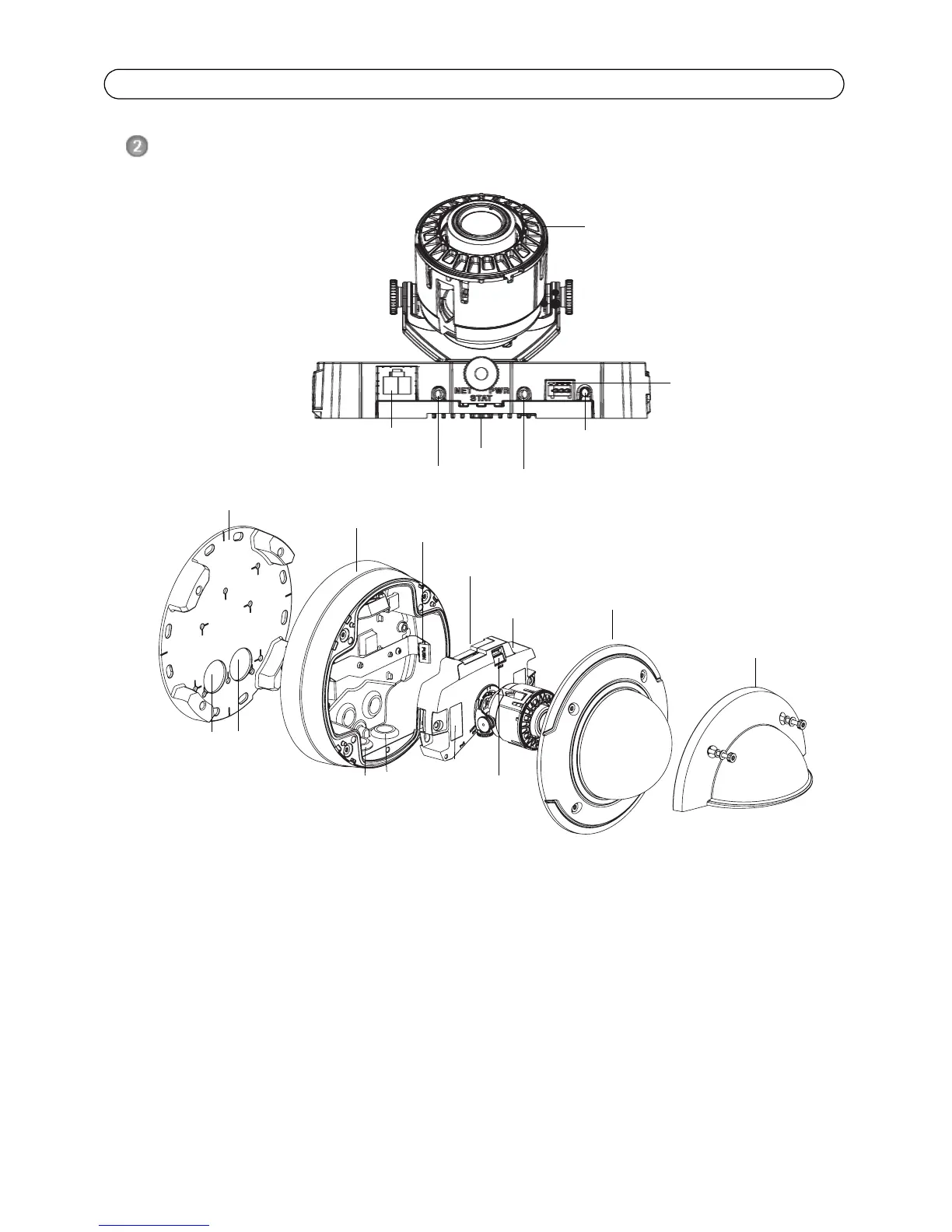

Hardware overview
Caution!
The heater in the camera unit may be hot.
Dimension (HxW)
AXIS P3343-VE/AXIS P3344-VE = 110 x 179 mm (4.3 x 7.105")
AXIS P3346-VE = 117 x 179 mm (4.59” x 7.05”)
AXIS P3367-VE = 117 x 179 mm (4.59” x 7.05”)
Weight
AXIS P3343-VE/AXIS P3344-VE = 1.4 kg (3.09 lb.)
AXIS P3346-VE = 1.6 kg (3.5 lb)
AXIS P3367-VE = 1.6 kg (3.5 lb)
Fan output
connector
Unit casing
Camera unit
Dome cover
Holes for cables
routed through the wall
Side holes with
Network connector
LED indicators
Control button
Camera unit
Audio in
(PoE)
Audio out
SD memory card slot
Serial no.
Heater
Weather shield
Spring
routed along the wall
for cablesgaskets
I/O connector
Mounting bracket
