Axis P3365-VE - Hardware Overview; Connectors and Buttons

AXISP3365-VEFixedDomeNetworkCamera
HardwareOverview
HardwareOverview

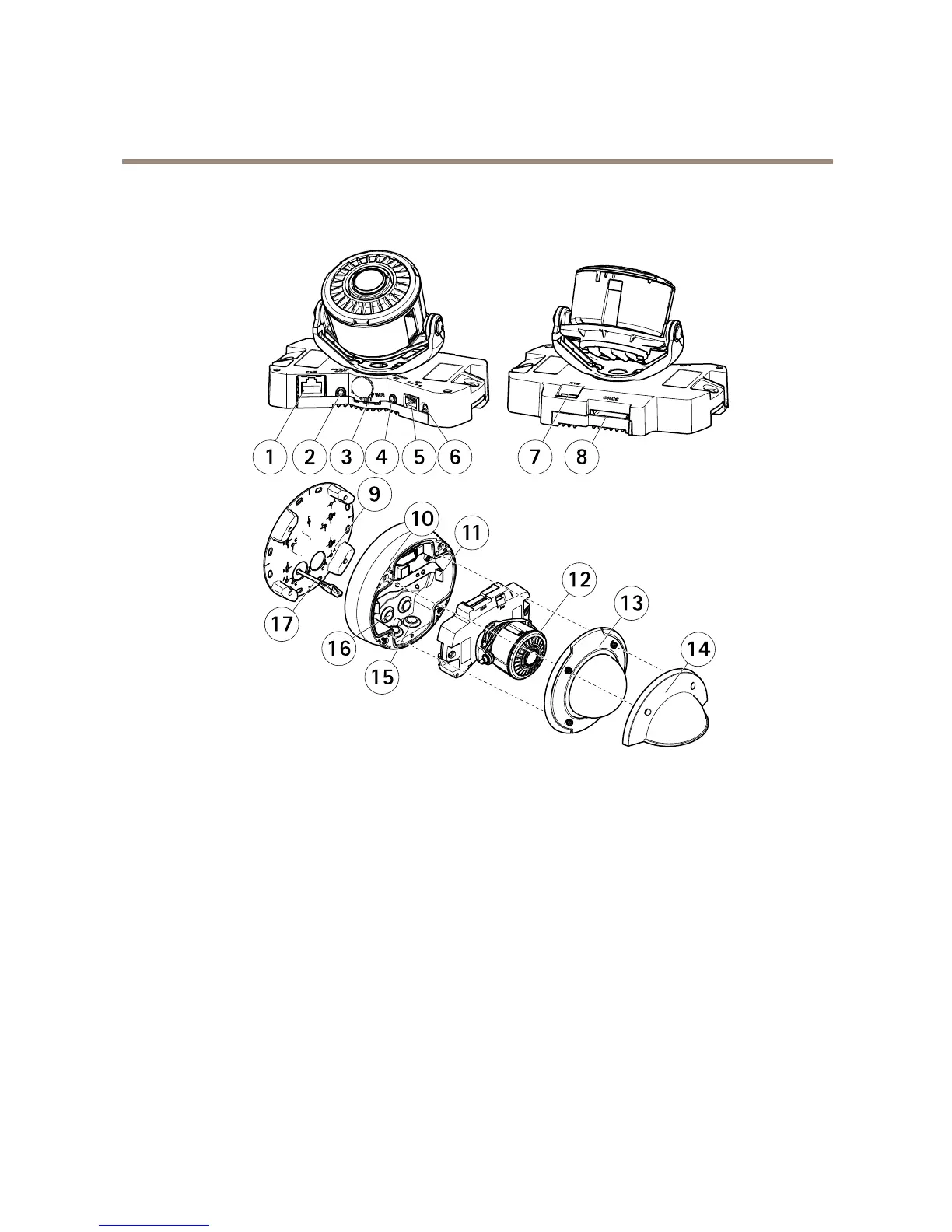

1 2 3 4 5 6 7 8
17
9
10
11
12
13
14
15
16
1
Networkconnector
2
Audioout
3
LEDindicators(network,status,power)
4
Audioin
5
I/Oconnector
6
Controlbutton
7
Fanconnector
8
SDcardslot
9
Mountingbracket
10
Unitcasing
11
Spring
12
Cameraheater
13
Domecover
14
Weathershield
15
Bottomholes
16
Sideholes
17
Networkcable
ConnectorsandButtons
Fortechnicalspecications,seepage68.
