Seite 38
AXIS P7224 Installationsan
leitung

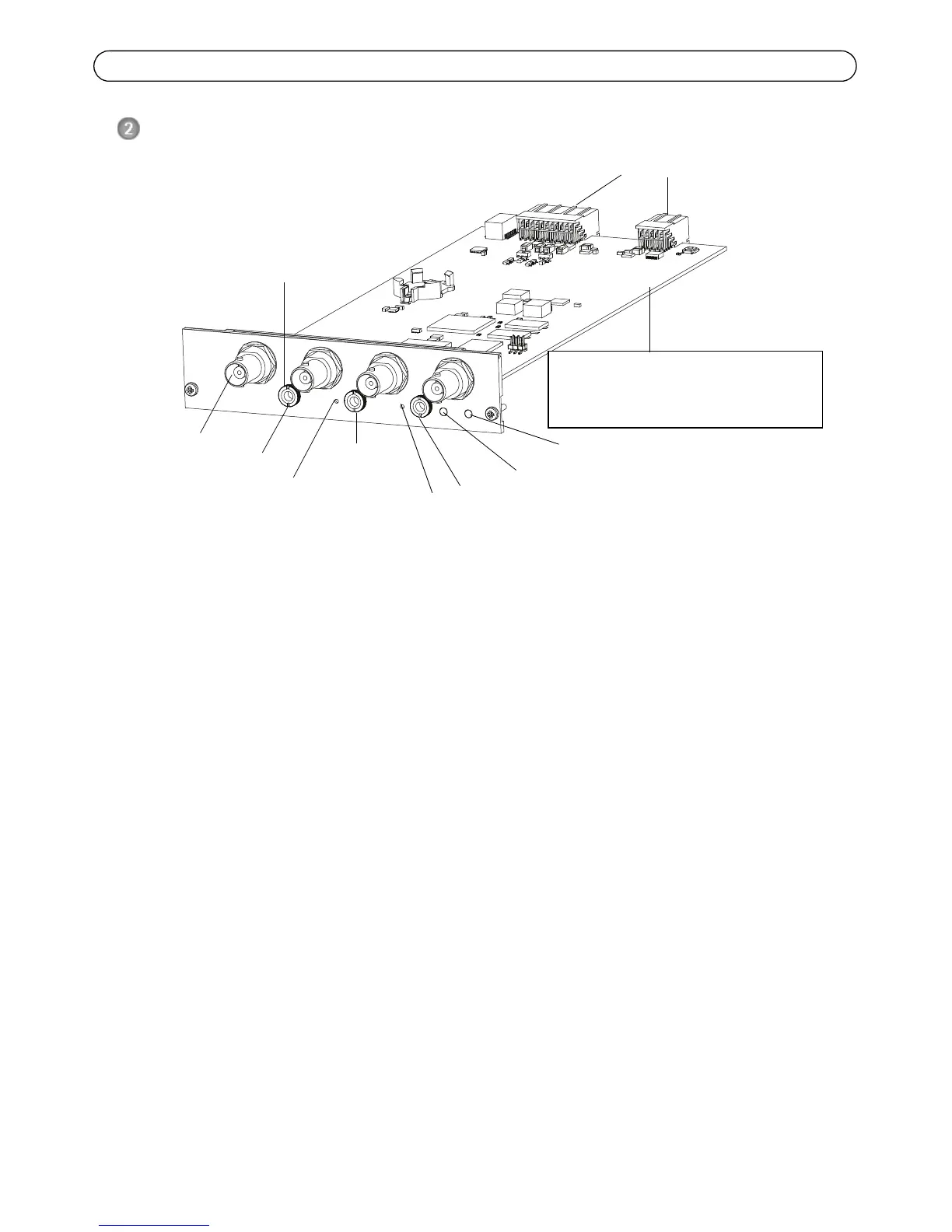

Hardwareübersicht
Abmessungen
30 x 129 x 255 mm (einschließlich Anschlüsse)
Bestellnummer (P/N)
und Seriennummer (S/N).
Die Seriennummer w
ird
für die Installation
benötigt.
Audioanschluss-Mutter
Audio-Eingang 1
Audio-Eingang 2
Audio-Ausgang 1
Status-LED
Netz-LED
Reset-Taste
Steuertast
e
4 Videoeingänge
Busanschlüsse
37
39
Table of Contents
Electromagnetic Compatibility (EMC)
2
Equipment Modifications
2
Battery Replacement
3
Installation Steps
5
Package Contents
5
Installation Guide
5
Hardware Overview
6
Install the Hardware
7
Assign an IP Address
8
AXIS IP Utility
9
AXIS Camera Management - Multiple Products/Large Installations
10
Automatic Discovery
10
Set the Password
11
Other Methods of Setting the IP Address
13
Set the IP Address with Arp/Ping
14
Unit Connectors
15
Pin Assignments for the I/O Connector of the AXIS 291 1U Video Server Rack
16
Led Indicators
17
Resetting to the Factory Default Settings
18
Further Information
18
Mesures de Sécurité
20
Remplacement des Piles
20
Procédure D'installation
21
Contenu de L'emballage
21
Vue D'ensemble du Matériel
22
Installation du Matériel
23
Attribution D'une Adresse IP
24
AXIS IP Utility
25
Configuration du Mot de Passe
27
Autres Méthodes de Configuration de L'adresse IP
29
Configuration de L'adresse IP À L'aide D'arp/Ping
30
Connecteurs de L'appareil
31
Affectation des Broches
32
Voyants Lumineux
33
Rétablissement des Paramètres D'usine Par Défaut
34
Plus D'informations
34
Installieren der Hardware
39
Zuweisen einer IP-Adresse
40
AXIS IP Utility
41
Festlegen des Kennworts
43
Andere Methoden zum Festlegen der IP-Adresse
45
Zuweisen der IP-Adresse Per Arp/Ping
46
LED-Anzeigen
49
Wiederherstellen der Werkseitigen Standardeinstellungen
50
Weitere Informationen
50
Sostituzione Della Batteria
52
Procedure DI Installazione
53
Contenuto Della Confezione
53
Panoramica Dell'hardware
54
Installazione Dell'hardware
55
Assegnazione DI un Indirizzo IP
56
AXIS IP Utility
57
Impostazione Della Password
59
Altri Metodi DI Assegnazione Dell'indirizzo IP
61
Assegnazioni Dei Pin
64
Indicatori LED
65
Ripristino Delle Impostazioni Predefinite
65
Ulteriori Informazioni
66
Medidas Preventivas
68
Sustitución de la Batería
68
Pasos para la Instalación
69
Contenido del Paquete
69
Presentación del Hardware
70
Instalación del Hardware
71
Asignación de la Dirección IP
72
Configuración de la Contraseña
75
Otros Métodos para Configurar la Dirección IP
77
Configuración de la Dirección IP con Arp/Ping
78
Indicadores LED
81
Más Información
82
