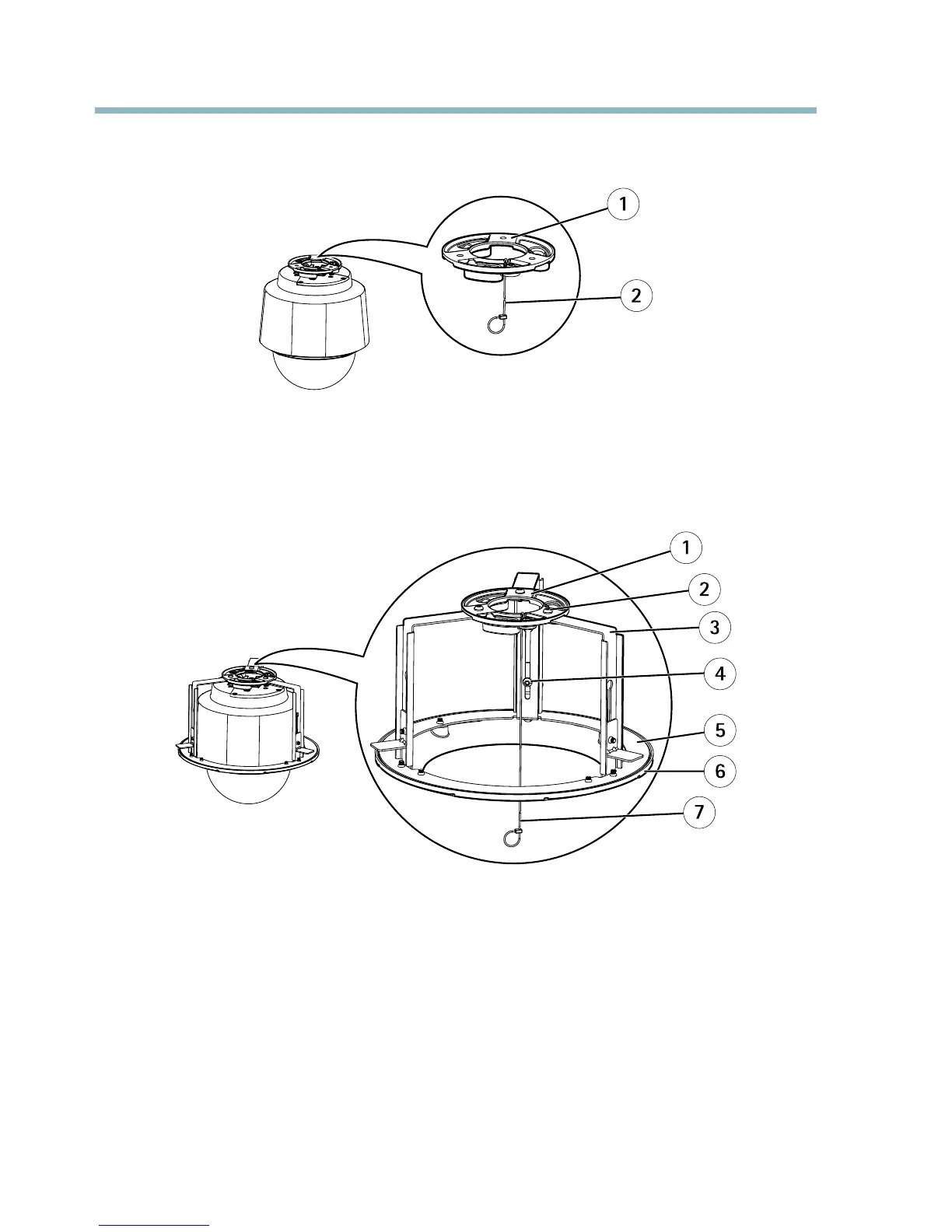

AXISQ60Series
HalterungfürMassivdecken
1
2
1
Montageplatte
2
Sicherheitsdraht
Hängedeckenmontage
1
2
3
4
5
6
7
1
Montageplatte
2
MontagenplatteschraubeT20(3x)
3
Halterungsarm
4
HalterungsarmschraubeT20(3x)undUnterlegscheibe(3x)
5
Halterungsring
6
Klemmansch
7
Sicherheitsdraht
58
