Install the Counterweights
1. Unscrew the bottom cover screws and remove the top cover, see illustration on page 15.
2. Attach the counterweights to the bottom cover using the supplied screws and washers (torque 4 Nm).
Apply Loctite 243

threadlocker on the screws.
3. Secure the counterweights using the supplied grub screws (torque 4 Nm).
1
5
4
2
3
2

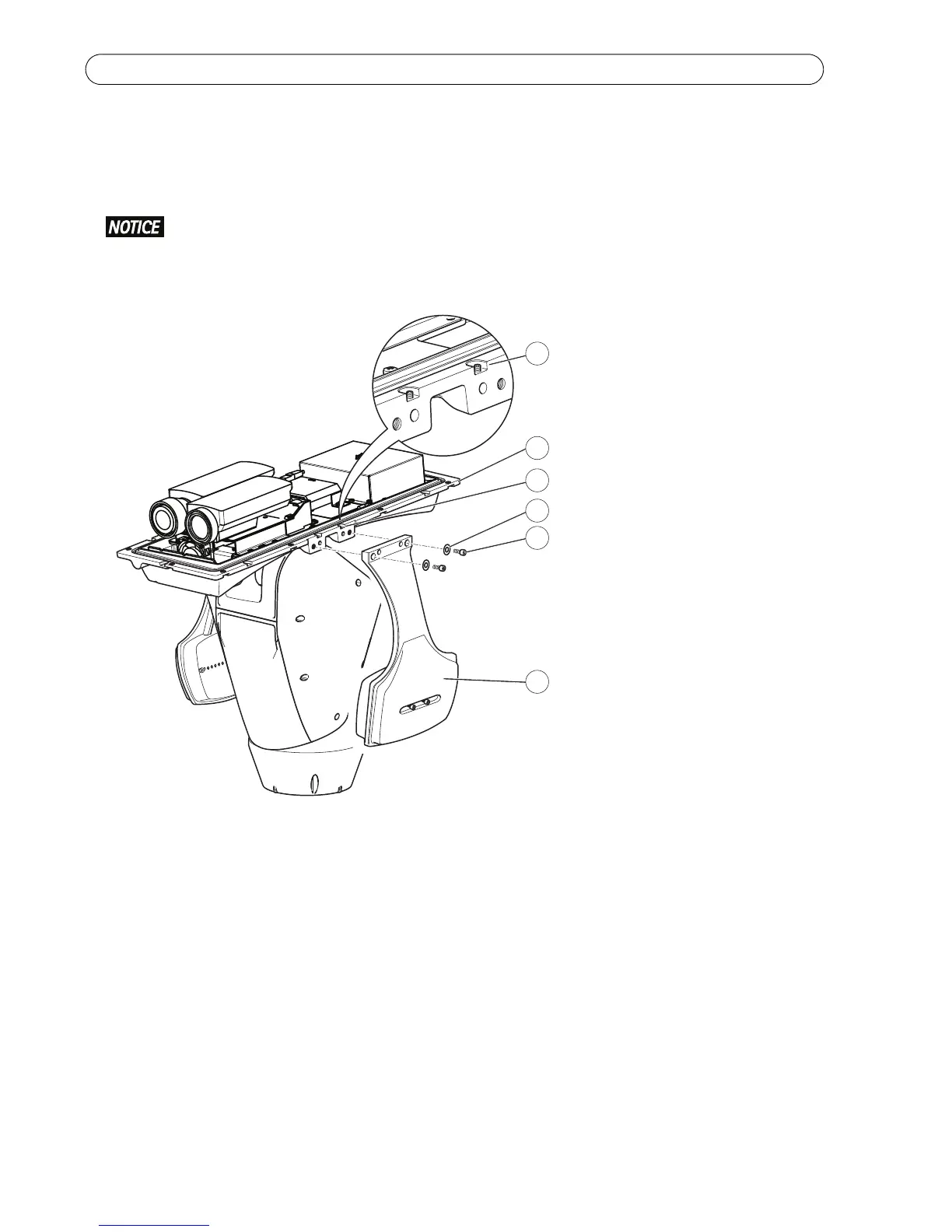

1Bottom cover
2Grub screw (4x)
3Washer (4x)
4Screw (4x)
5 Counterweight (2x)
