Axis Video Server User Manual

10
Axis video server - Product description

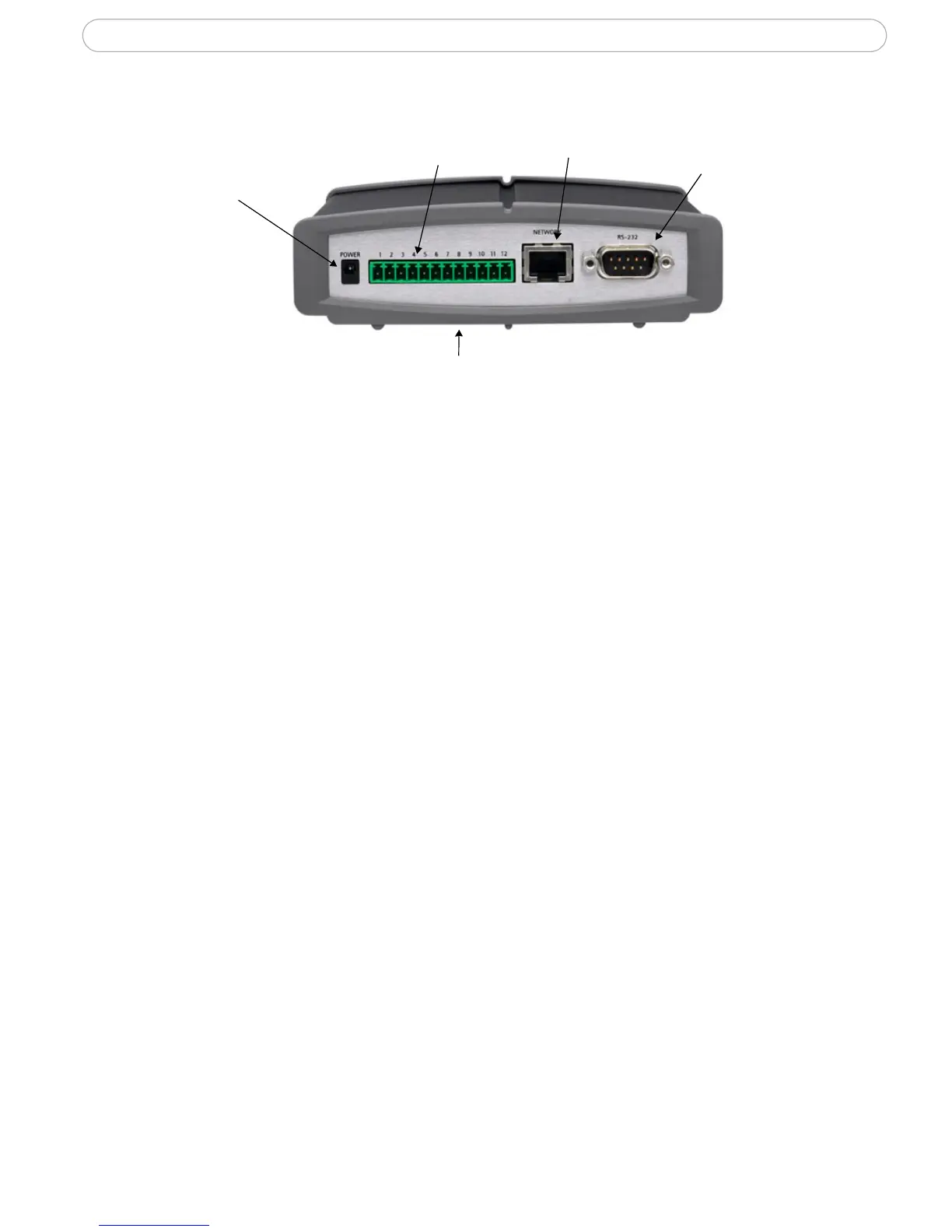

Rear panel - all models
Power adapter
connector
12-pin I/O terminal
connector
RS-232
connector
Network
connector
Serial number on underside label
Power adapter connector - For connection of the power adapter.
I/O terminal connector - The I/O terminal connector provides the physical interface to 4
digital transistor outputs, 4 digital inputs and an RS-485 interface. See
Unit connectors, on
page 57 for more information.
Note: The I/O terminal connector also provides an auxiliary connection point for DC
power.
Network connector - The Axis video server connects to the network via a standard
network cable, and automatically detects the speed of the local network segment
(10BaseT/100BaseTX Ethernet).
RS-232 connector - A 9-pin D-SUB connector providing an RS-232 serial connection.
Typically used for connecting Pan/Tilt/Zoom devices. See
Unit connectors, on page 57 for
more information.

Axis Video Server Specifications

General

Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Video Compression	H.264, MJPEG, MPEG-4
Network Interface	10/100 Mbps Ethernet
Dimensions	Varies by model
Weight	Varies by model
