8
Axis video server - Product description
Overview - AXIS 242S IV
The AXIS 242S IV provides support for Intelligent Video (IV) modules, and is equipped
with a DSP (Digital Signal Processor) dedicated to processing advanced intelligent video
algorithms.
IV modules (IVMs) are uploaded to the video server, and each module provides its own
configuration page. See
page 34 for more information.
The AXIS 242S IV provides 1 BNC input and 1 matching loop-through output. S-Video
(Y/C) is accommodated directly via the supplied connector.
The AXIS 242S IV also provides Line In and Mic In connectors. These are used for audio
analysis purposes only.

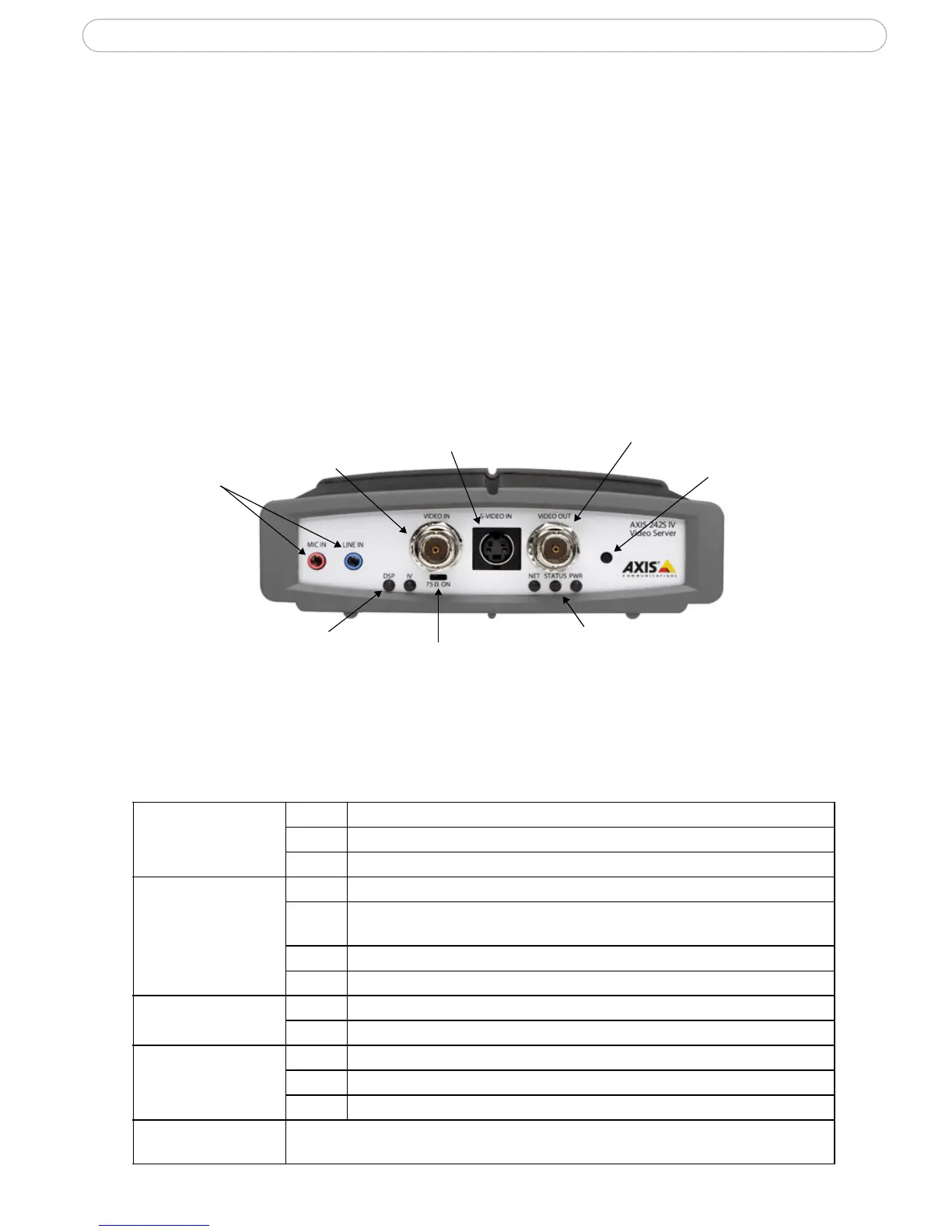

Video input
Control button
Mic In & Line In
Video output
S-Video (Y/C) input
DIP switch
DSP & IV LED indicators
Front panel - AXIS 242S IV
LED indicators for Network, Status & Power
LED indicators - all models
After completion of the startup and self-test routines, the multi-colored LED indicators
signal the following conditions:
Unlit No connection.
Green Steady for connection to a 100 Mbit/s network. Flashes for network activity.
Amber Steady for connection to a 10 Mbit/s network. Flashes for network activity.
Unlit When configured for “no flash” on access.
Green Steady for normal operation. Can be configured to flash green at intervals
whenever the unit is accessed. See the online help for more information.
Amber Steady during startup, reset to factory default or when restoring settings.
Red Slow flash for failed firmware upgrade.
Green Normal operation.
Amber Flashes green/amber during firmware upgrade.
Unlit No IV module loaded.
Amber Flashes during IV module upload
Green Steady when IV module loaded.
Module.-specific operation. See the documentaion for the IV module.
Network
Status
Power
DSP
(AXIS 242S IV only)
IV
(AXIS 242S IV only)
