Axis video server - Unit connectors

Unit connectors

The following connectors are described in this section:

• The D-Sub connector, on page 57

• The I/O terminal connector, on page 58

• COM ports RS-232 and RS-485, on page 59

• The S-Video connector (AXIS 242S IV only), on page 59

• Y/C to BNC cable (AXIS 241S/SA only), on page 60

The D-Sub connector

The Axis video server provides one 9-pin D-Sub connector, providing the physical

interface for an RS-232 port, used for connecting accessory equipment; such as standalone

PTZ devices for the remote control of connected video cameras.

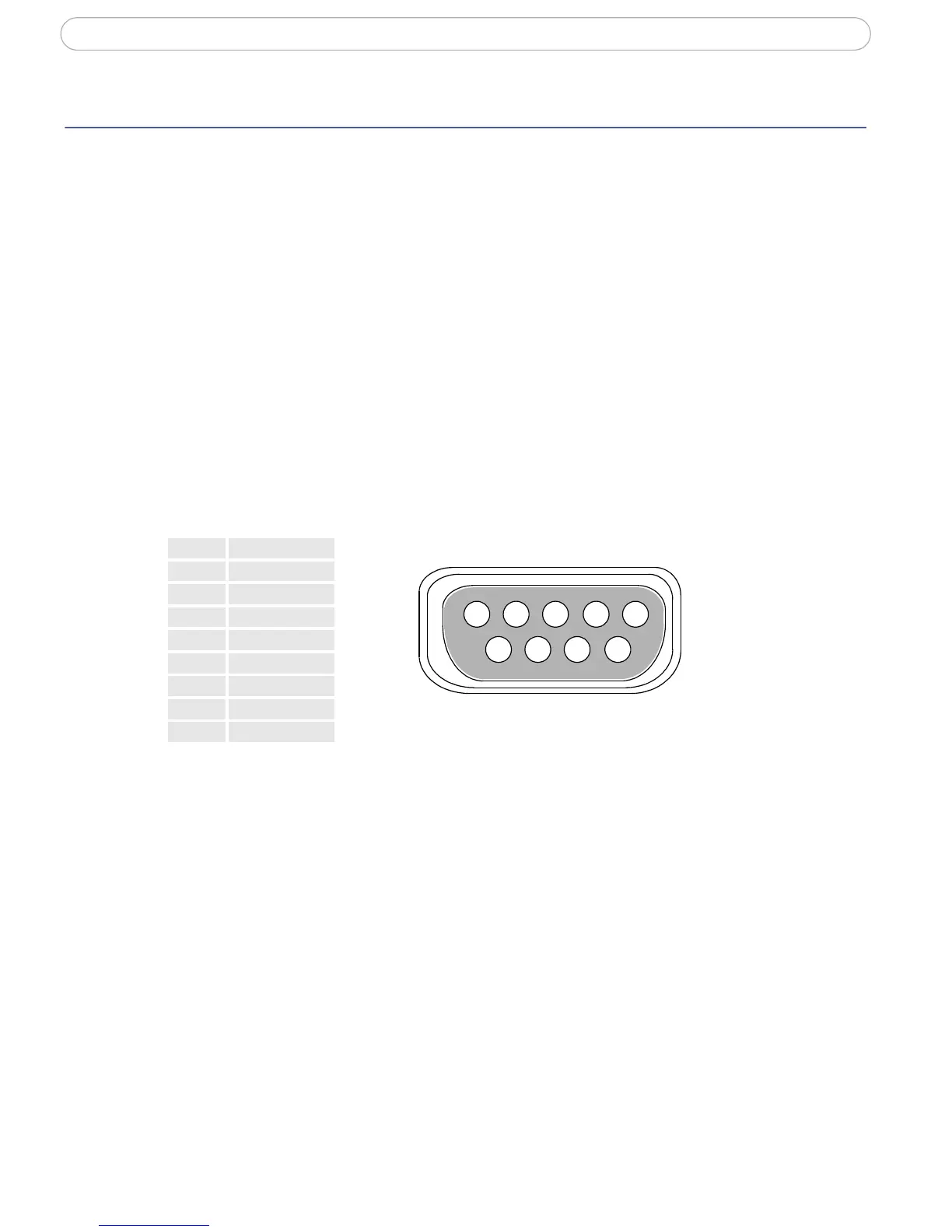

Pin assignment table and pinout of the RS-232 connector:

Pin Function

1 CD

2 - RXD

3 - TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

54321

6789
