维修手册
专案名称：
AxpertVM1KW/VM2KW
专案编号：
S1701112
修订版次：
00 PAGE 16/30
V-RDP-004-73 A

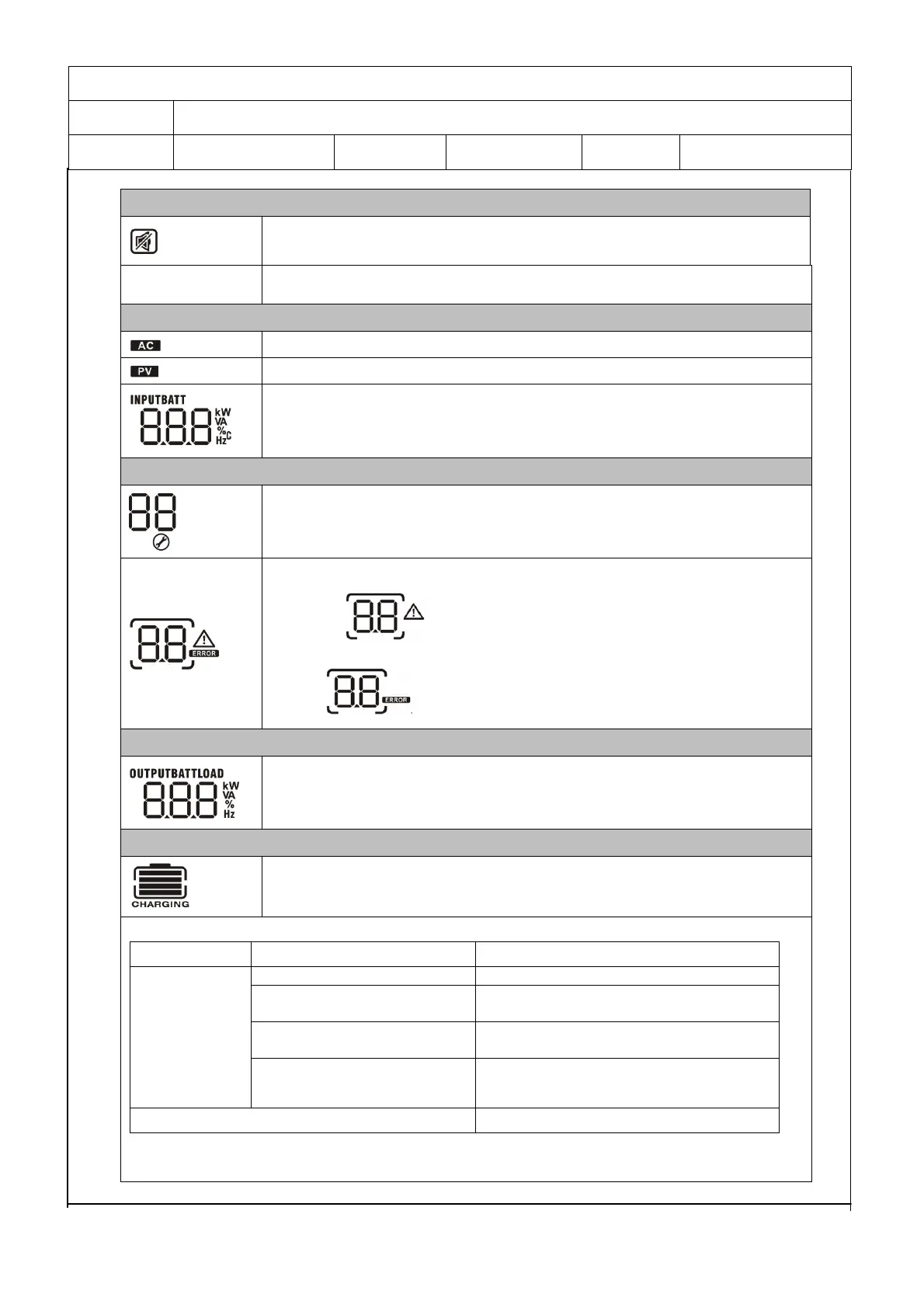

Mute Operation
Indicates unit alarm is disabled.
Icon Function description
Input Source Information
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, battery voltage
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning:
flashing with warning code.
Fault:
lighting with fault code
Output Information
Indicate output voltage, output frequency, load percent, load in VA and
load in Watt.
Battery Information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
In AC mode, it will present battery charging status.
Status Battery voltage LCD Display
Constant
Current mode
/ Constant
Voltage mode
<2V/cell 4 bars will flash in turns.
2 ~ 2.083V/cell
Bottom bar will be on and the other three
bars will flash in turns.
2.083 ~ 2.167V/cell
Bottom two bars will be on and the other
two bars will flash in turns.
> 2.167 V/cell
Bottom three bars will be on and the top
bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
