9. Assembling guide
9.1 The VM 1K assembly
Note:
(1)
Before take apart inverter, please confirm all power cords are disconnected!
(2) The guide as below is only for reference, for the figures as below may not be exactly the same
with the version in your hand. Please notice the difference and follow your original version.

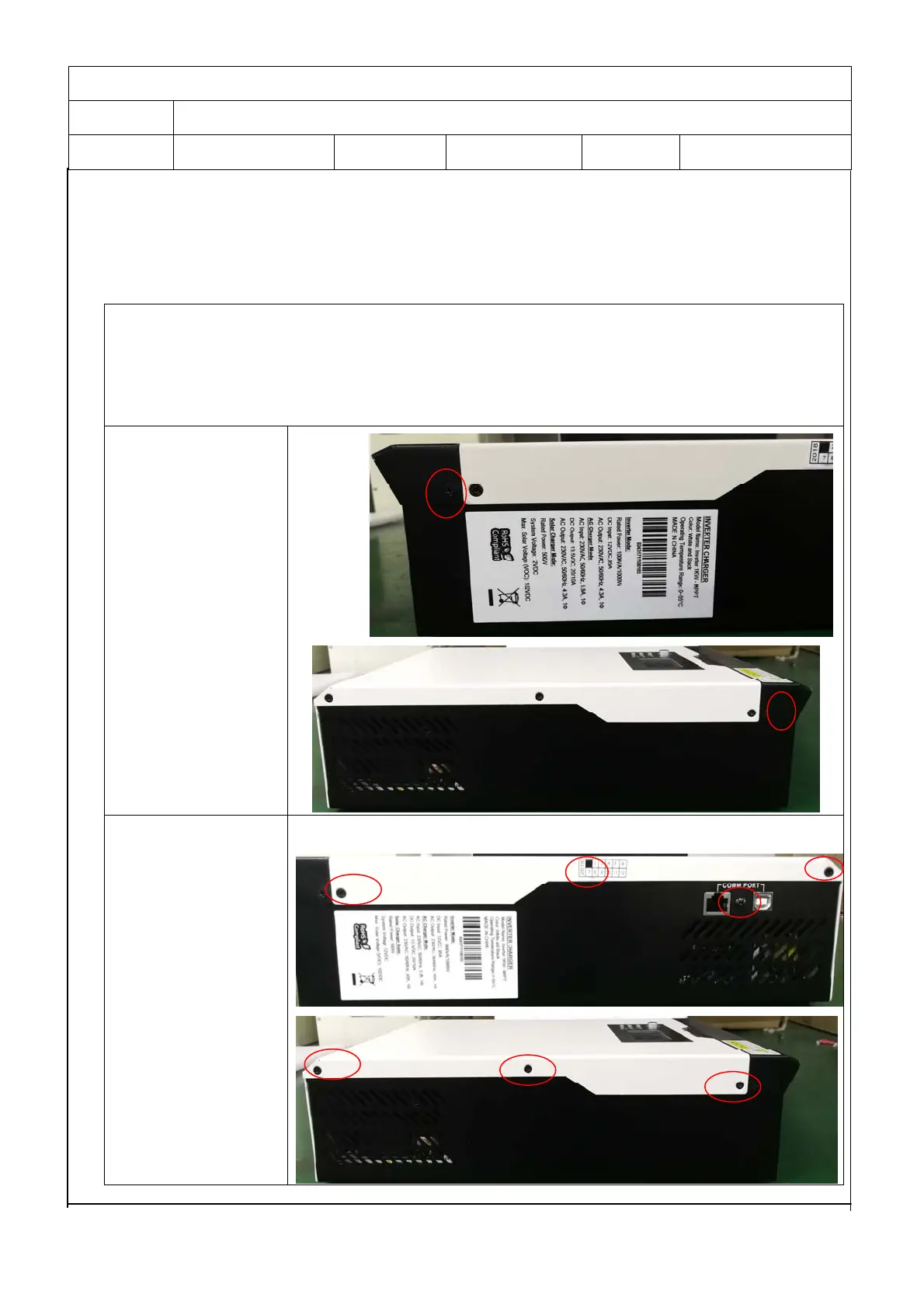

Remove the screws of
the wiring cover.
Remove the screws of
the top cover.
