Axpert VM-1000 - Page 27

维修手册
专案名称：
AxpertVM1KW/VM2KW
专案编号：
S1701112
修订版次：
00 PAGE 27/30
V-RDP-004-73 A

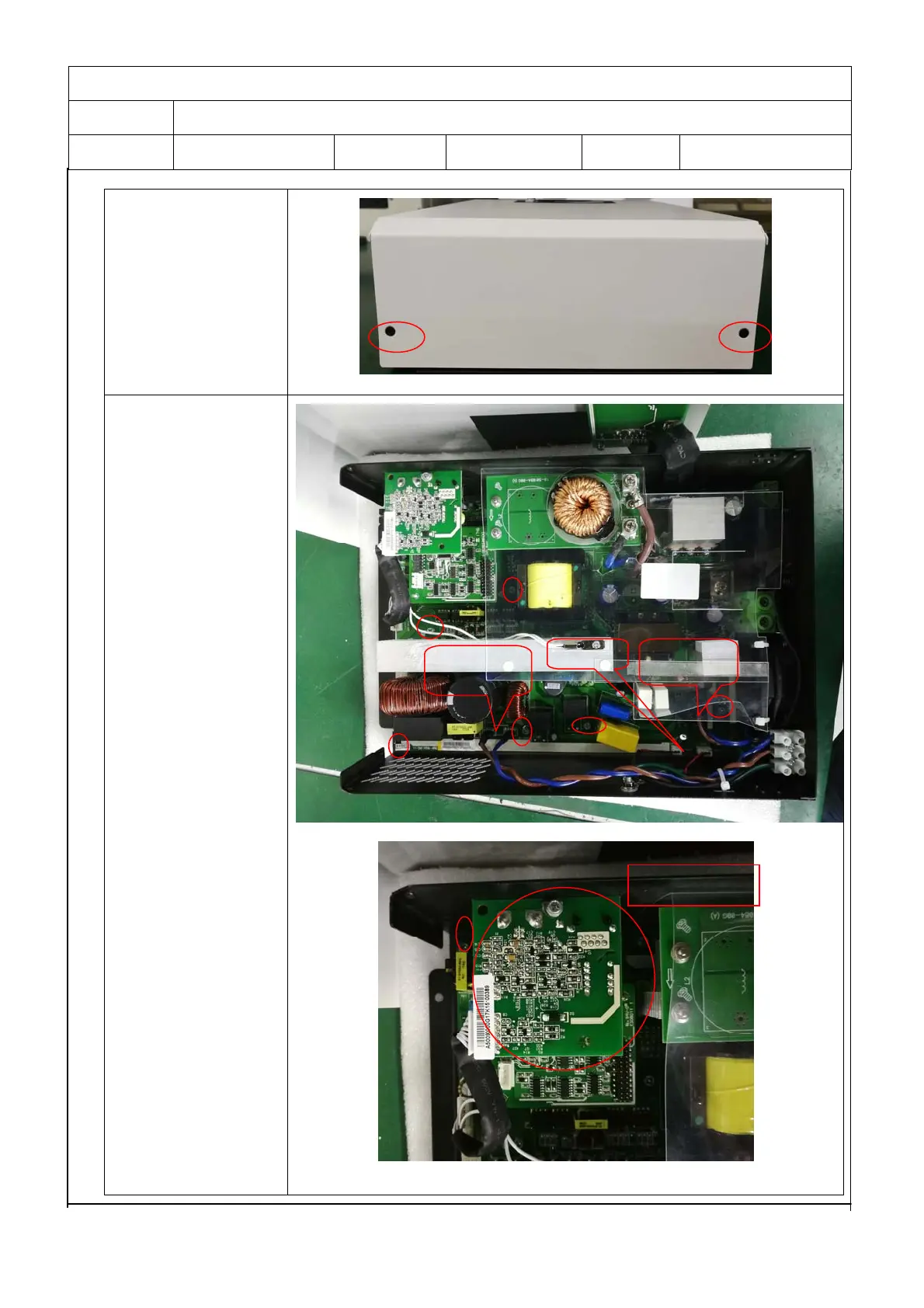

1．Open the top cover.
You can see unit
inside.
2. Remove the plastic
rivet on the air flow
paper to take out the
paper and Cut the
cable tie.
3. Remove Comm
board and LCD,LED;
Unplug the ac input,
output plug and fan.
4. Screw down the
screw, then the main
board.
COMM Board
AC OUT
AC IN
FAN
