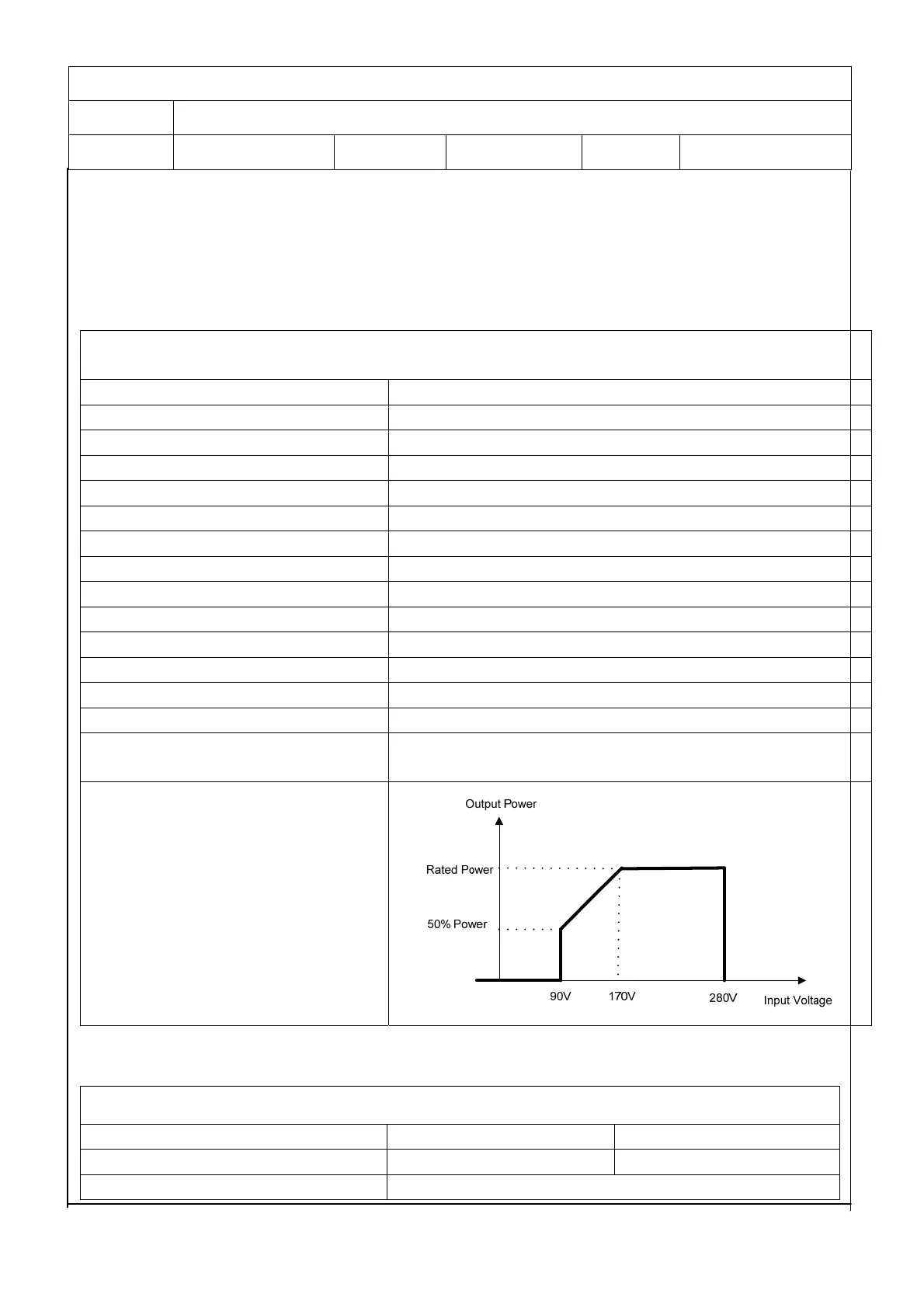

8. Electrical specification
8.1 Table 1 Line Mode Specifications
Line Mode (Utility Bypass Mode)
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
230Vac
Low Loss Voltage
170Vac±7V(UPS); 90Vac±7V(Appliances)
Low Loss Return Voltage
180Vac±7V(UPS); 100Vac±7V (Appliances)
High Loss Voltage
280Vac±7V
High Loss Return Voltage
270Vac±7V
Max AC Input Voltage
300Vac
Nominal Input Frequency
50Hz / 60Hz (Auto detection, 55Hz as boundary)
Low Loss Frequency
40±1Hz
Low Loss Return Frequency
42±1Hz
High Loss Frequency
65±1Hz
High Loss Return Frequency
63±1Hz
Output Short Circuit Protection
Circuit Breaker
Efficiency
>95% (Rated R load, battery full charged)
Transfer Time 10ms typical, 12ms maximum @50Hz (UPS);
20ms typical, 25ms maximum @50Hz (Appliances)
Power Limitation
8.2 Table 2 Invert Mode Specifications
Inverter Mode
Axpert Model
VM-2000 VM-1000
Rated Output Power
2KVA/2KW 1KVA/1KW
Output Voltage Waveform
Pure Sine Wave
