4

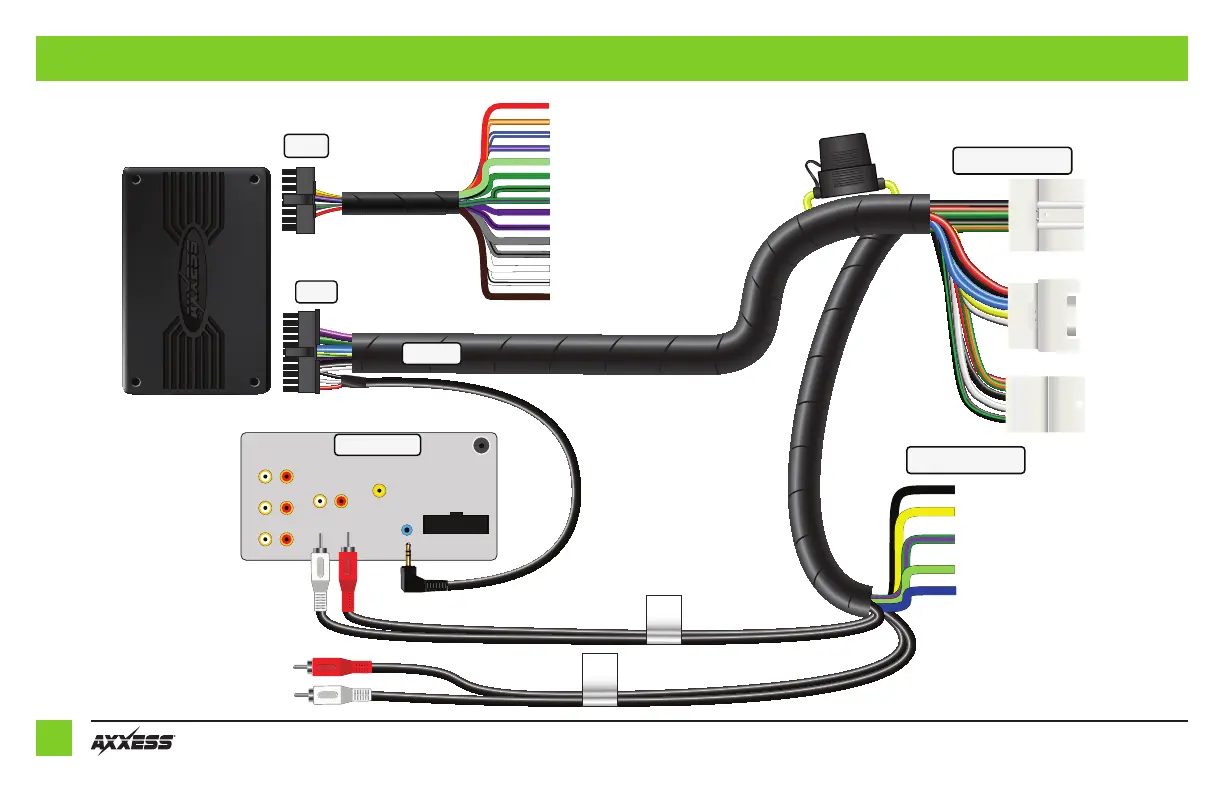

CONNECTIONS: LD-BX-TY2 FOR AMPLIFIED MODELS
Red - Accessory
Orange/White - Illumination
Blue/White - AMP turn on
Blue/Pink - Not Used
Light Green - Not Used
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Not Used
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Light Green - Parking Brake
Blue - Antenna Turn On
Green/Purple - Reverse backup camera
LD-2NAVAMP
16-Pin
Purple -
Rear Right Speaker +
Purple/Black -
Rear Right Speaker -
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Brown - Not Used
28
20
Only one AUX-IN to be
used according to
connector pin type
*
*
*
*
*
Vehicle Connectors
Radio Connections
LD-BX-TY2
22-Pin
AUX-IN
from 20 pin
AUX-IN
from 28 pin
