Model: AMT, HDT - CV3000 Series Control Valves
22
Direct Action type Reverse Action type

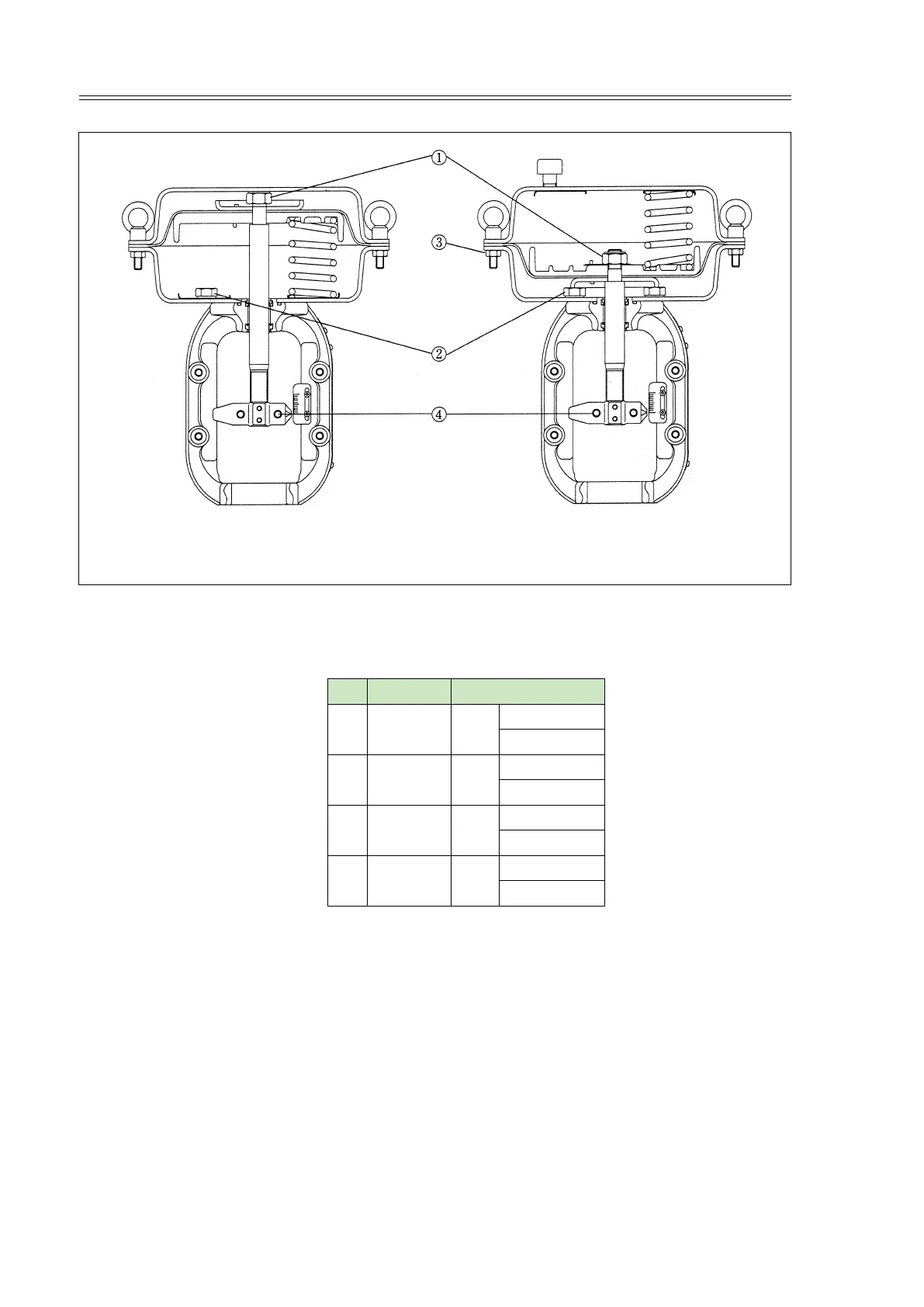

Fig. 4-10 Bolts and Nuts of Actuator
Table 4-5 Tihtening Torques of Bolts and Nuts of Actuator
Unit:(N.m{kgf-cm})
No. Materials PSA1
1 SK5 S45C M14
45-70
{460-710}
2 S30C M12
35-50
{360-510}
3 SUS304 M8
15-20
{150-200}
4 SUS304 M8
10-15
{100-150}
Note: Install the rain cap on the reverse actuator as follows. Drive the cap into the
diaphragm case until the shoulder (brim) of the cap is brought into contact
with the diaphragm case, then drive the cap further into the diaphragm case by
half a turn.
