Model: AMT, HDT - CV3000 Series Control Valves
23
Reverse Action typeDirect Action type

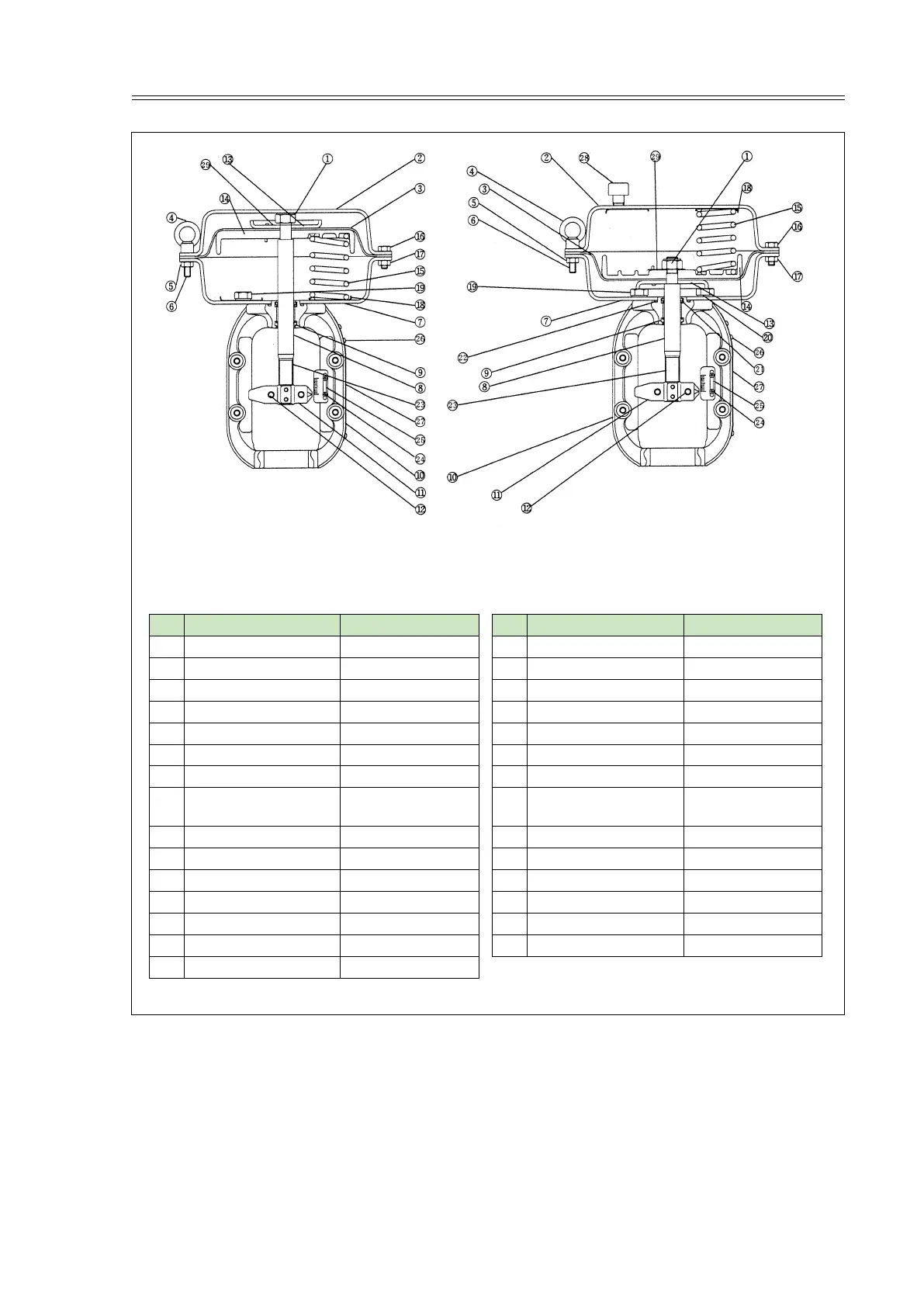

Fig. 4-11 Model PSA Actuator
No. Item Material No. Item Material
1 Nut S45C, SK5 16 Bolt SUS304
2 Diaphragm case(Top) SAPH370 17 nut SUS304
3 Diaphragm EPDM, Polyaimid 18 Spring plate SUS304CP
4 Eyebolt SUS304 19 Bolt S30C
5 Nut SUS304 20 Seal washer NBR, SPCC
6 Bolt SUS304 21 Packing for rod NBR
7 Diaphragm case(Bottom) SAPH370 22 O-Ring NBR
8 Bushing
SPCC, Bronze, PTFE,
Lead
23 Rod SUS304
9 Dust seal NBR 24 Truss screw SUS304, SK5
10 Yoke A216WBC(SCPH2) 25 Scale plate SUS304
11 Stem connector SCS13A 26 Drive screw SUS304
12 Bolt SUS304 27 Nameplate SUS304
13 Diaphragm retainer SS400 28 Rain cap SUS304
14 Diaphragm plate AC4A/AC4C 29 Washer SUS304
15 Spring SWOSM-B, SWOSC-V
