Model: AMT, HDT - CV3000 Series Control Valves
28

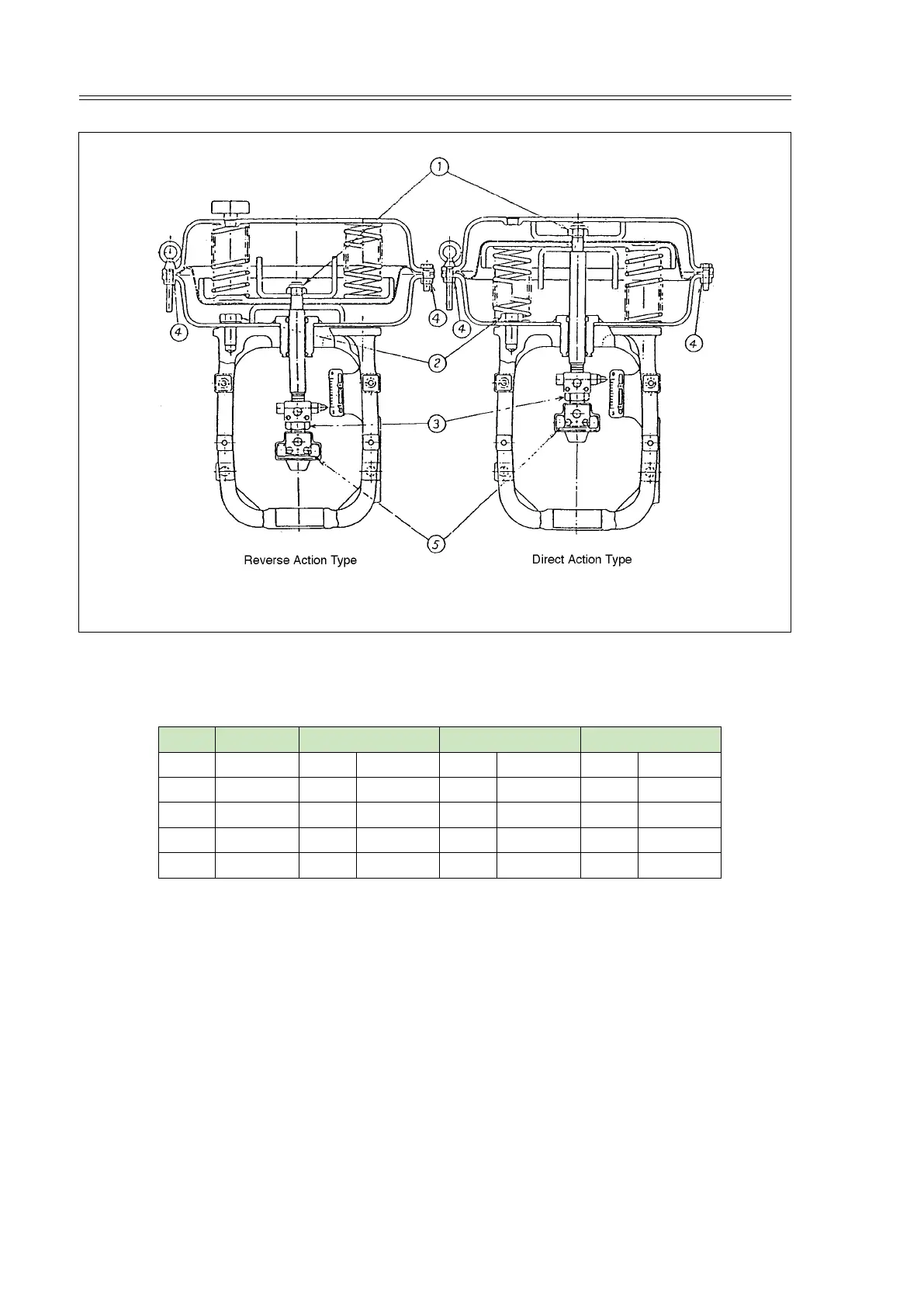

Fig. 4-18 Bolts and Nuts of Actuator
Table 4-6 Tightening Torques of Bolts and Nuts of Actuator
Unit:(N.m{kgf-cm})
No. Materials For HA2 For HA3 For HA4
1 SK5 S45C M10 37{370} M14 105{1,050} M20 310{3,170}
2 S30C M12 42{420} M16 105{1,050} M24 360{3,360}
3 S20C M14 69{690} M18 140{1,450} M30 710{7,160}
4 SUS304 M8 18{185} M8 18{185} M12 63{630}
5 SUS304 M10 56{560} M10 56{560} M12 63{630}
