Model: AMT, HDT - CV3000 Series Control Valves
29
No. Parts Name No. Parts Name
1 Nut 18 Coil Spring
2 Diaphragm Case(Top) 19 Bolt
3 Diaphragm 20 Nut
4 Eye Bolt 21 Spring Plate
5 Nut 22 Bolt
6 Bolt 23 Washer
7 Diaphragm Case(Bottom) 24 Packing
8 Bushing 25 Rod
9 Bearing 26 Lock Nut
10 Dust Seal 27 Trus Screw (Washer, Nut)
11 Pointer 28 Scale Plate
12 Yoke 29 Screw
13 Stem Connector 30 nameplate
14 Bolt 31 Cap
15 Diaphragm Retainer 32 O-Ring
16 Stopper 33 Washer
17 Diaphragm Plate 34 Tapping Screw

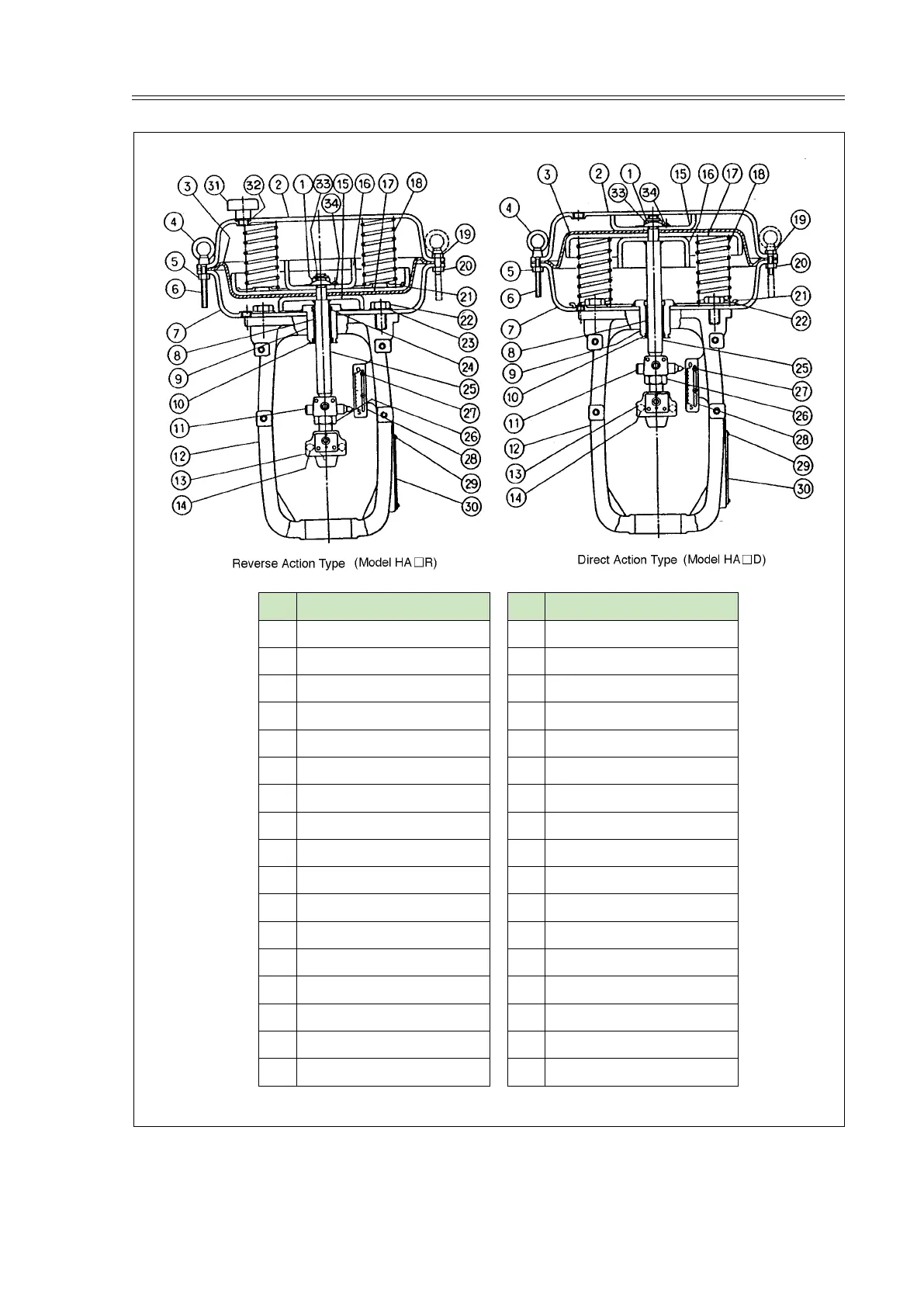

Fig. 4-19 Cut View of Actuator
