Azbil KZ03 Series

Azbil Corporation
2 KZ03 - Pressure Regulator with Air Filter (Airset)

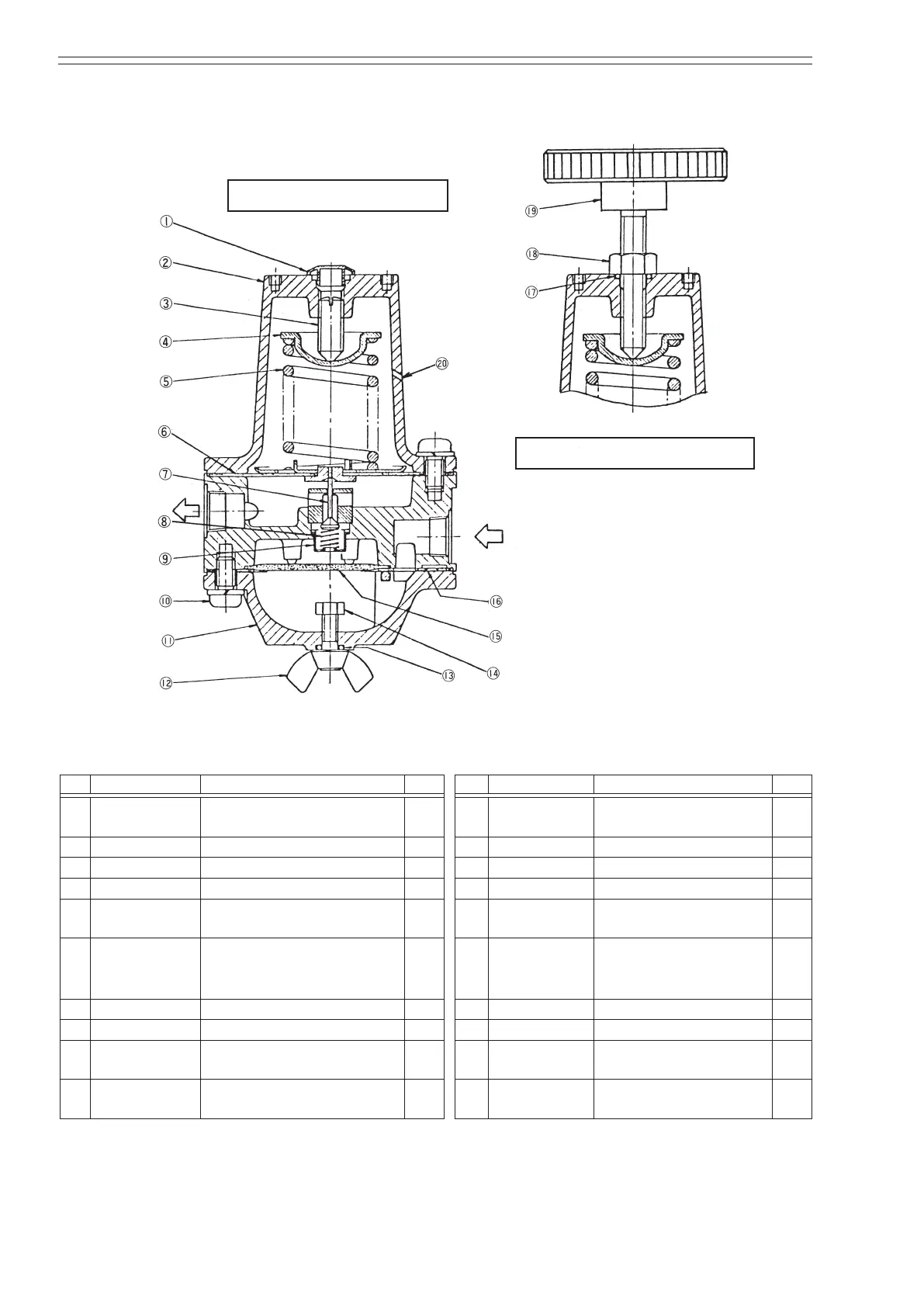

3 : Structure
Primary
Secondary
Fixed air pressure type
Variable air pressure type
No. Parts Material Qty. No. Parts Material Qty.
1 Cap Nylon 6 1 11 Filter cover
Aluminum diecast ADC12
Stainless steel rod SUS304
1
2 Bonnet Aluminum diecast 1 12 Wing bolt Stainless steel rod SUS305 1
3 Setscrew Stainless steel rod 1 13 O-ring BunnaN 1
4 Spring support SPCC 1 14 Hex nut Stainless steel SUS304 1
5
Adjustment
spring
Piano string SWPB 1 15 Filter Sponge Bel-ita
*2
A-3230 1
6 Diaphragm
BunnaN coated Tetrin cloth
*1
Copper Alloyed sheet C3713P
Copper Alloyed rod C3604B D
1 16 Gasket NBR 1
7 Poppet Alloyed steel rod C3604B D 1 17 O-ring BunnaN 1
8 Poppet spring piano string SWPA 1 18 Hex nut Stainless steel SUS304 1
9
Poppet spring
receiver
Stainless steel sheet SUS304 1 19 Set Knob
ABS resin Stainless steel
rod SUS304
10
Screw with
washer
Stainless steel sheet SUS304 10 20 Bleeding Hole ---
*1. uorine rubber for high temperature model
*2. Option: 3µ stainless steel ber
