KZ03 - Pressure Regulator with Air Filter (Airset) 3

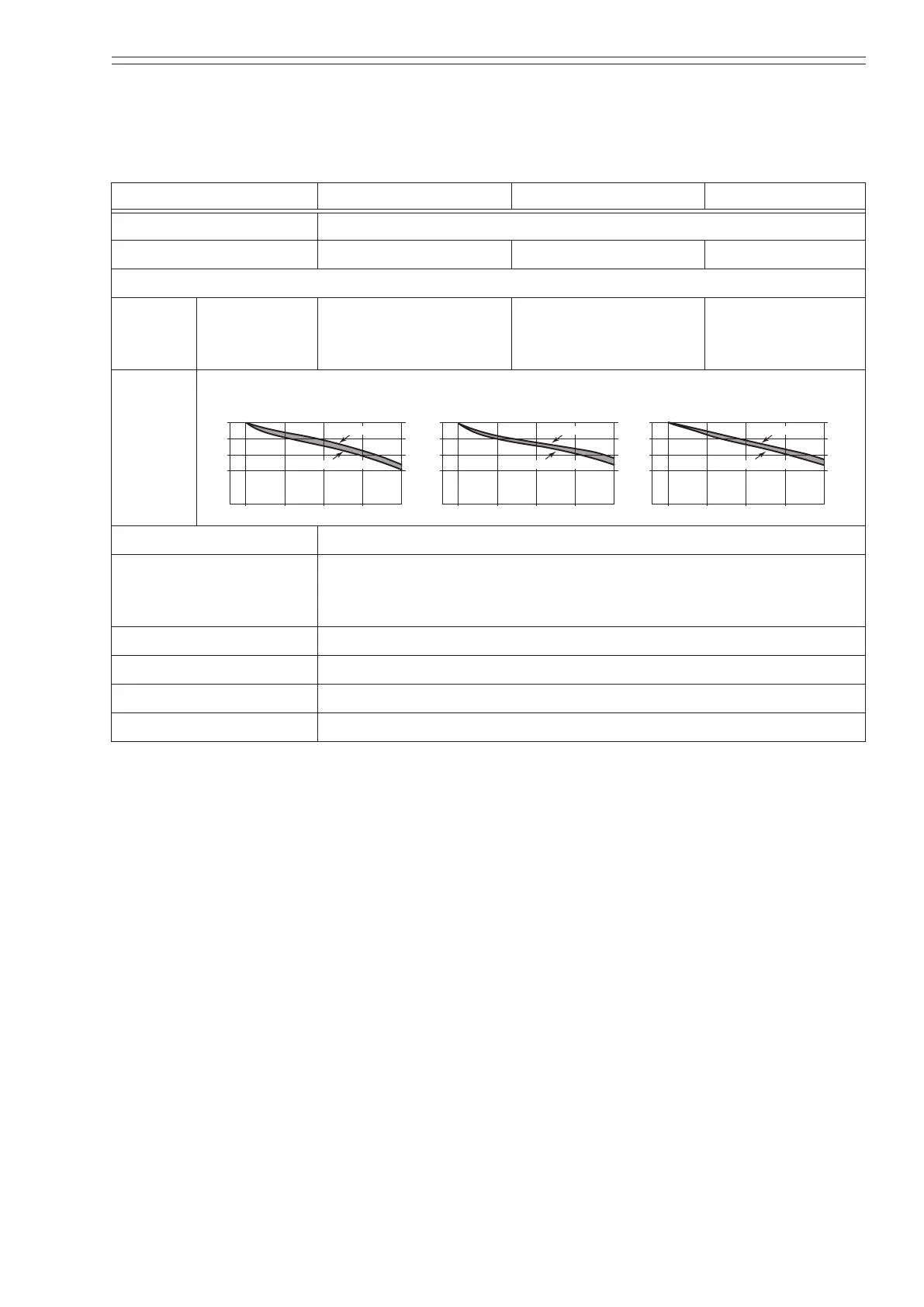

4 : Standard Specications
The Pressure Regulators with Air Filter control the air pressure so each point of use
o the air line is supplied with constant air pressure.
Type KZ03-1 KZ03-2 KZ03-3
Primary pressure (kPa) Secondary pressure + more than 50 (970 max.)
Secondary pressure (kPa) 140 ± 4 (constant) 12 - 400 (variable) 12 - 700 (variable)
Characteristics
Pressure
character-
istic
Change in
secondary
pressure (kPa)
For every 200 - 970
primary pressure: 140±4
For every 450 - 970
primary pressure: 400±4
For every 800 - 970
primary pressure:
700±4
Flow
character-
istic (kPa)
140
130
120
110
050 100 150 200
l/min(N)
Primary pressure 300
Primary pressure 900
400
300
380
370
050 100 150 200
l/min(N)
Primary pressure 500
Primary pressure 900
700
690
680
670
050 100 150 200
l/min(N)
Primary pressure 800
Primary pressure 900
Secondar
y
pressur
e
Secondary
pressure
Secondary
pressure
1) KZ03-1 (primary pressure 300 - 900) 2) KZ03-2 (primary pressure 500 - 900) 3) KZ03-3 (primary pressure 800 - 900)
Amt. of air consumption 0.951 l/min(N) or less
Materials Filter ............ 3 µm Sponge (optional 3 µm stainless steel ber)
Case ............. Aluminum die-cast
External screw and wing bolt (for drain) w/o drain: stainless
Temp. of environ. -30 to +80°C (-20 to 176°F)
Air pressure connection Rc1/4 or 1/4NPT internal screw
Draining capacity 22 cm
3
Weight 0.7 kg
5 : Maintenance
1) Loosen the wing bolt (12) periodically to drain
2) When the air lter becomes dirty, replace it with a new one. Do not attempt to
wash it with water and detergent.
