7 AB-6650

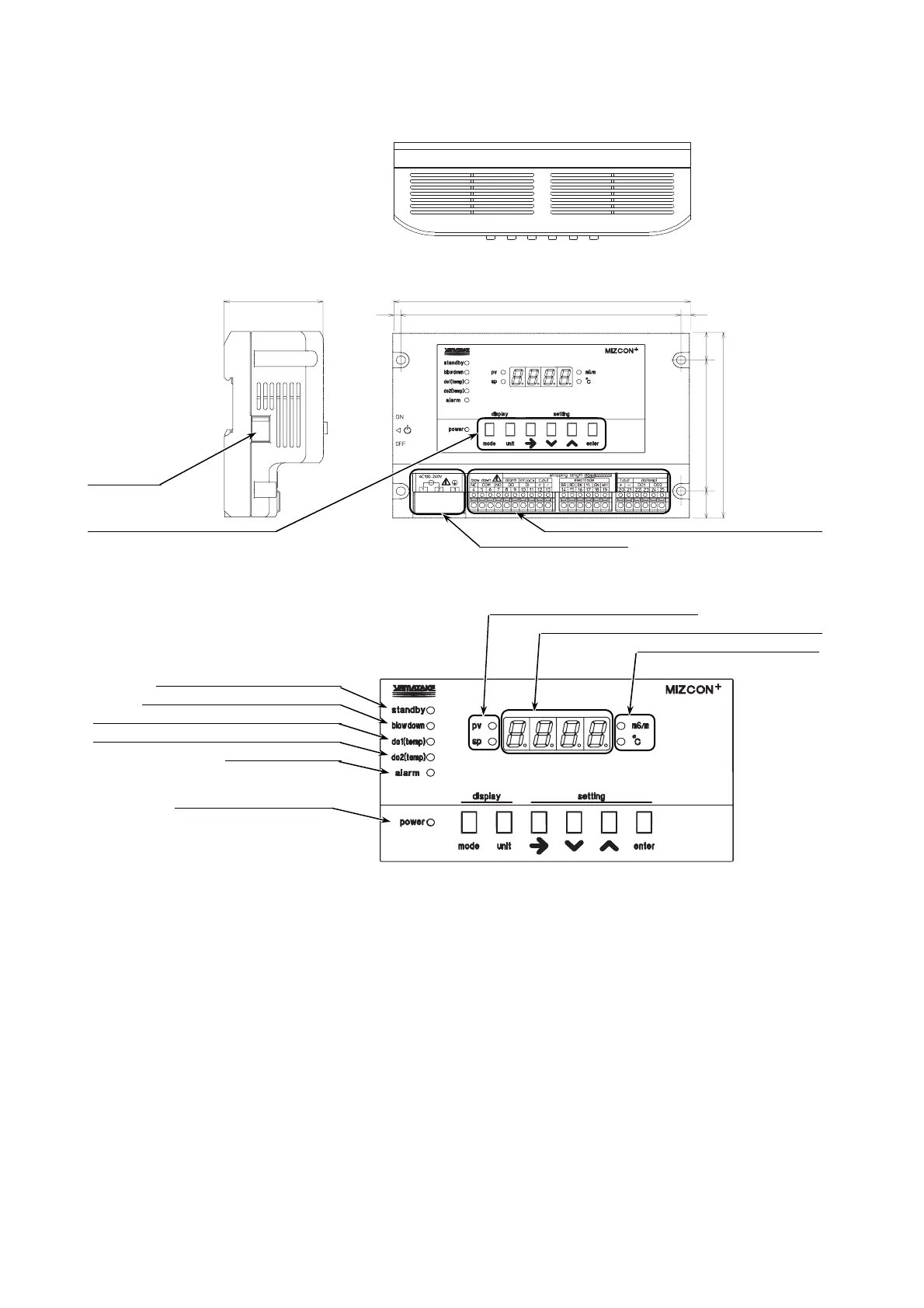

Dimensions and Parts Identifications
Controller (main unit): Model R7010W
60 180
5 170 5
Power switch
Display and setting operation keys
Terminal block (for except power supply terminals)
Terminals for power supply
Figure 1. Dimensions and parts identification: Controller (mm)
Process value/setpoint indication LED
Control value indication window (to set and display)
Unit (mS/m or °C) indication LED
Operation standby indication LED
Blow-down operation indication LED
Temperature control output 1 indication LED*
Temperature control output 2 indication LED*
Alarm indication LED
Power supply indication LED
Note:
Temperature control outputs 1 and 2 LEDs are
optional depending on the model numbers.
Figure 2. LEDs of the controller
17.5 85 17.5
120
