3-13
Chapter 3. MOUNTING AND WIRING

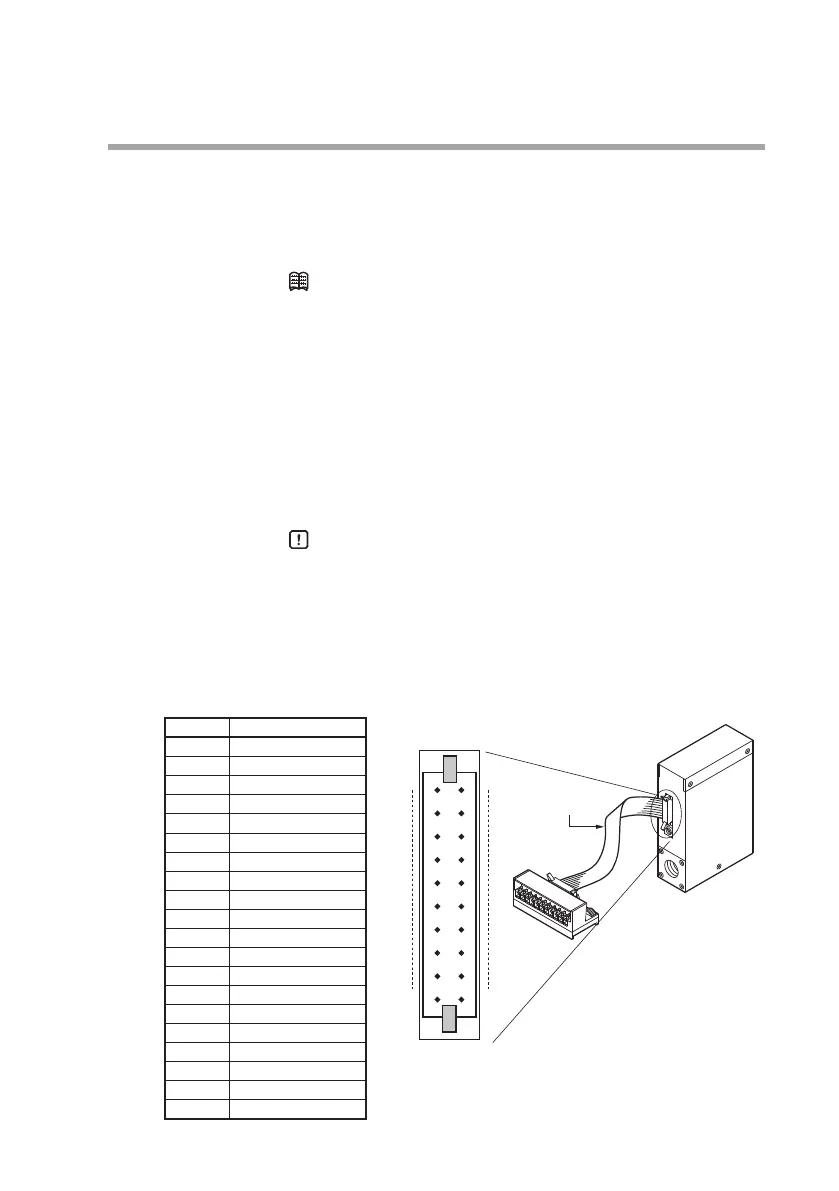

z Connector terminal block
Sometimes two or more connections must be made to the same pin
during wiring. In this case, use a connector terminal block. If you
need a 20-core cable for the connectors on the device and connector
terminal block, contact the azbil Group or your dealer.
Note
•
Recommended connector terminal block
Manufacturer: Toyo Giken
Model: PCN-1H-20
Mounting connector
HIROSE ELECTRIC CO., LTD., HIF3BA-20PA-2.54DSA
Compatible connector (other side)
HIROSE ELECTRIC CO., LTD., HIF3BA-20D-2.54R
This terminal block can be mounted directly on a DIN rail.
The following table shows the correspondence between connector
pin Nos. and terminal block Nos:
Handling Precautions
•
For details regarding the cable with connector on both ends,
contact the azbil Group.(The optional 81446681-001 and
81446951-001 connectors cannot be used to connect to the
connector terminal block.)
•
The specifications of the recommended connector terminal
block are subject to change. Contact the manufacturer before-
hand for details.
Pin No. Terminal block No.
20 B-10
19 A-10
18 B-9
17 A-9
16 B-8
15 A-8
14 B-7
13 A-7
12 B-6
11 A-6
10 B-5
9 A-5
8 B-4
7 A-4
6 B-3
5 A-3
4 B-2
3 A-2
2 B-1
1 A-1
20
19
2
1
MQV
Connector terminal
block
Cable with connector
on both ends
To Next Page
