Azbil PTG60 - Maintenance; Calibration of Analog Outputs

Operation with Field Communication software (CFS100) Azbil Corporation
6-14 Model PTG60/70/71/72 - Smart Pressure Transmitter
6-4 : Maintenance
7KLVFKDSWHUH[SODLQVKRZWRFDOLEUDWHWKHDQDORJVLJQDOVRIWKHSUHVVXUH
transmitter, how to calibrate the measurement range, and how to reset a
FDOLEUDWHGYDOXHWRWKHGHIDXOWYDOXH,WDOVRH[SODLQVKRZWRFKHFNWKHSUHVVXUH
transmitter’s self-diagnostic messages.
Calibration of Analog Outputs
By connecting to an ammeter and comparing measured values, you can calibrate
the 0% and 100% analog outputs.

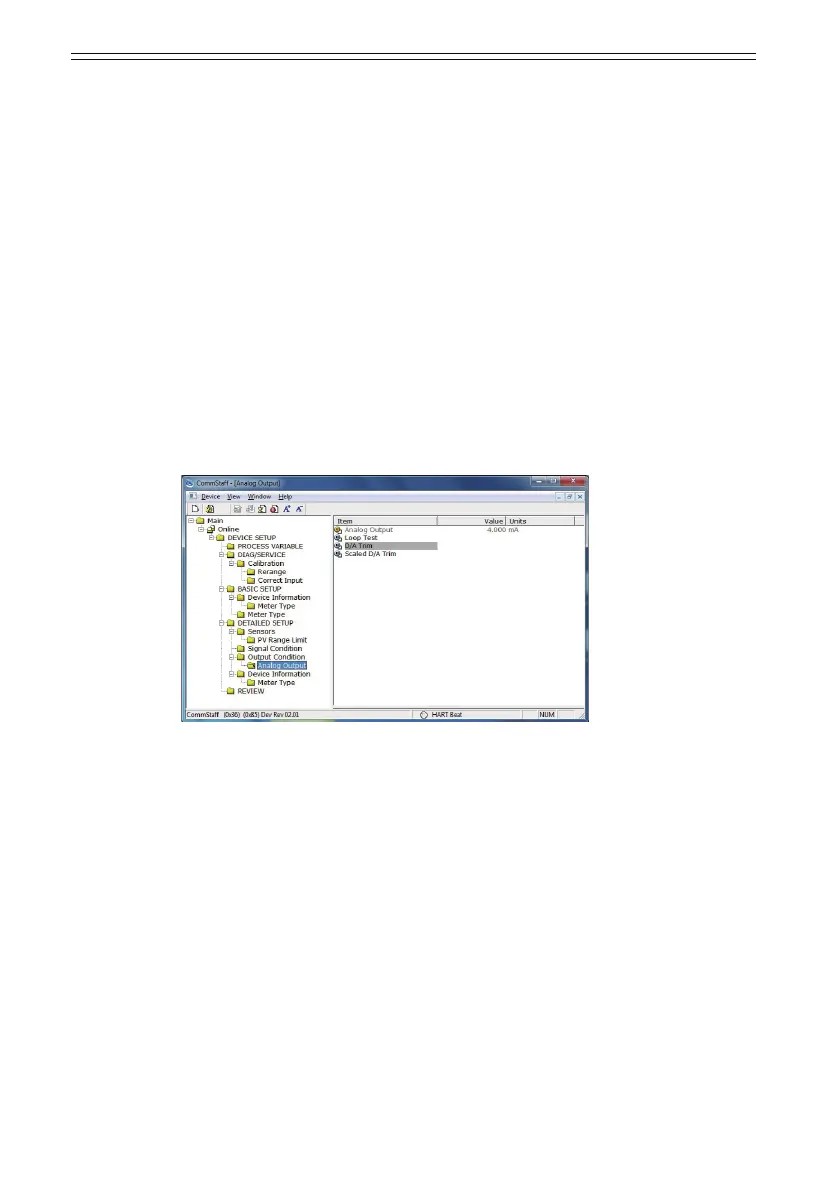

Select DEVICE SETUP oDETAILED SETUP o Output Condition o Analog
Output o D/A Trim.
CAUTION: If this operation is performed while the pressure transmitter process
is under automatic control, outputs may uctuate, making pressure
transmitter operation dangerous. Before performing this operation,
make sure that you switch the process control loop to manual
control.
