Model PTG60/70/71/72 - Smart Pressure Transmitter 2-5
Direct mounting onto the process line
Handling precautions
• When mounting the Transmitter directly onto the process line, full consideration
must be given as to its weight, the temperature at the wetted part and to vibration.
• The method of connecting the Transmitter to the process line must be appropriate
for each given process.
• )LJXUHVKRZVDQH[DPSOHRIWKHGLUHFWPRXQWPHWKRG
Gas Liquid
1
10

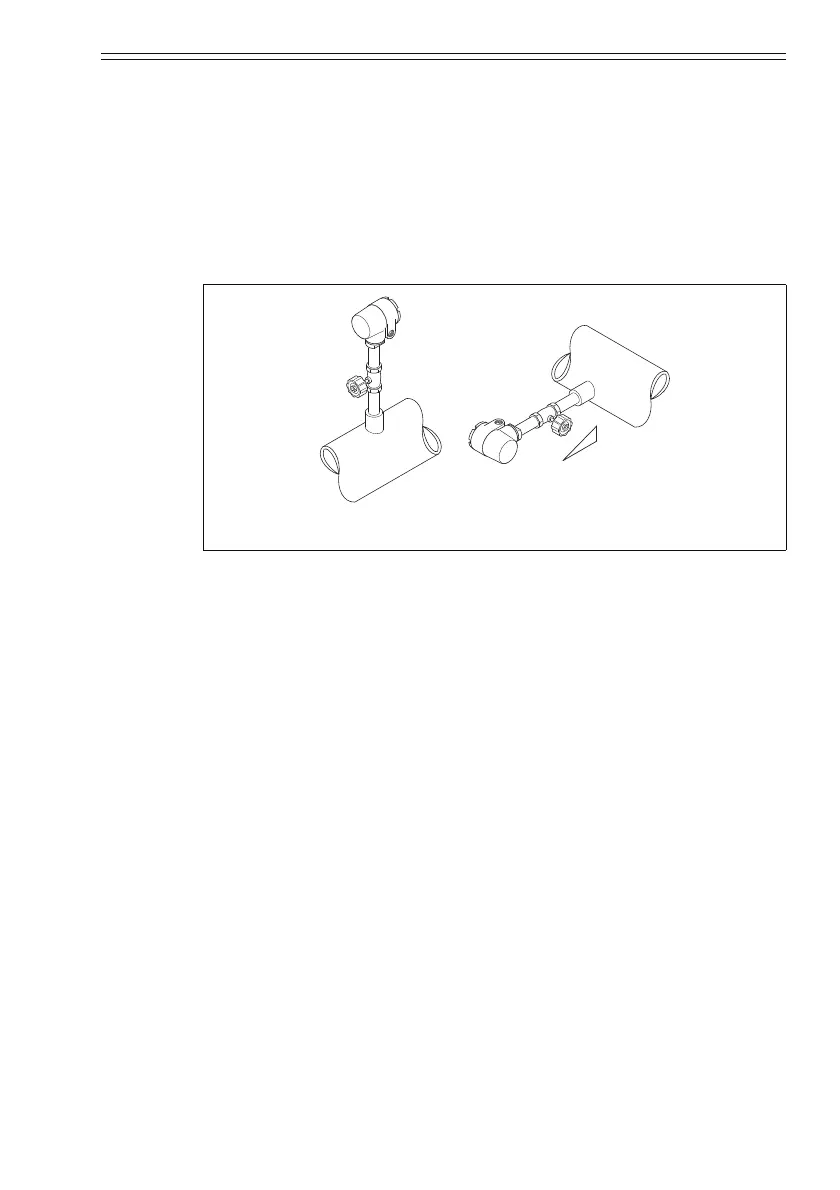

Figure 2-4 An example of the direct-mount method
