Installation Azbil Corporation
2-4 Model PTG60/70/71/72 - Smart Pressure Transmitter
Vertical connection
Screwing on the transmitter with
the connecting pipe filled with
liquid will damage the transmitter.
Be sure to establish a vapor
phase portion.
300 mm or longer
portion where air
is contained

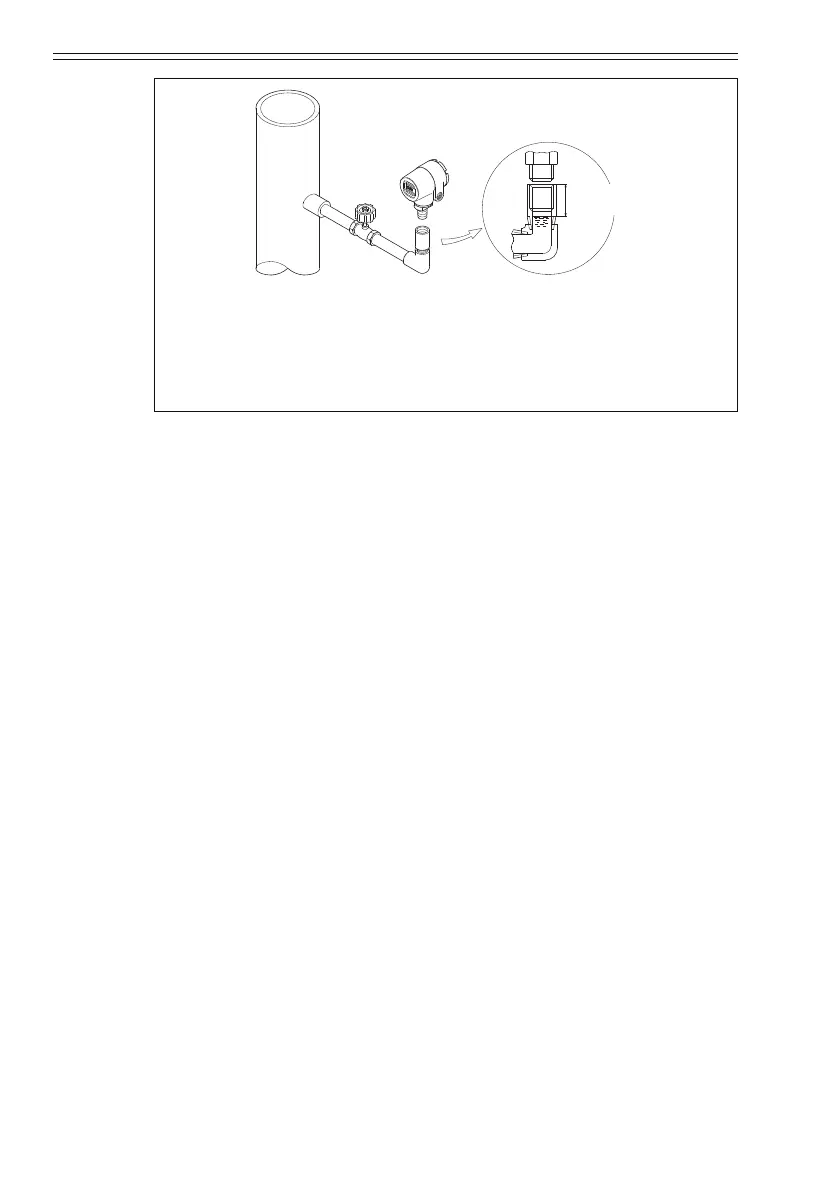

Figure 2-3 Installation precaution 2
