ADSL2+ Ethernet USB Combo Router - User Guide
Page 10 of 42
3.2 ADSL Router Overview
3.2.1 Front Indicators

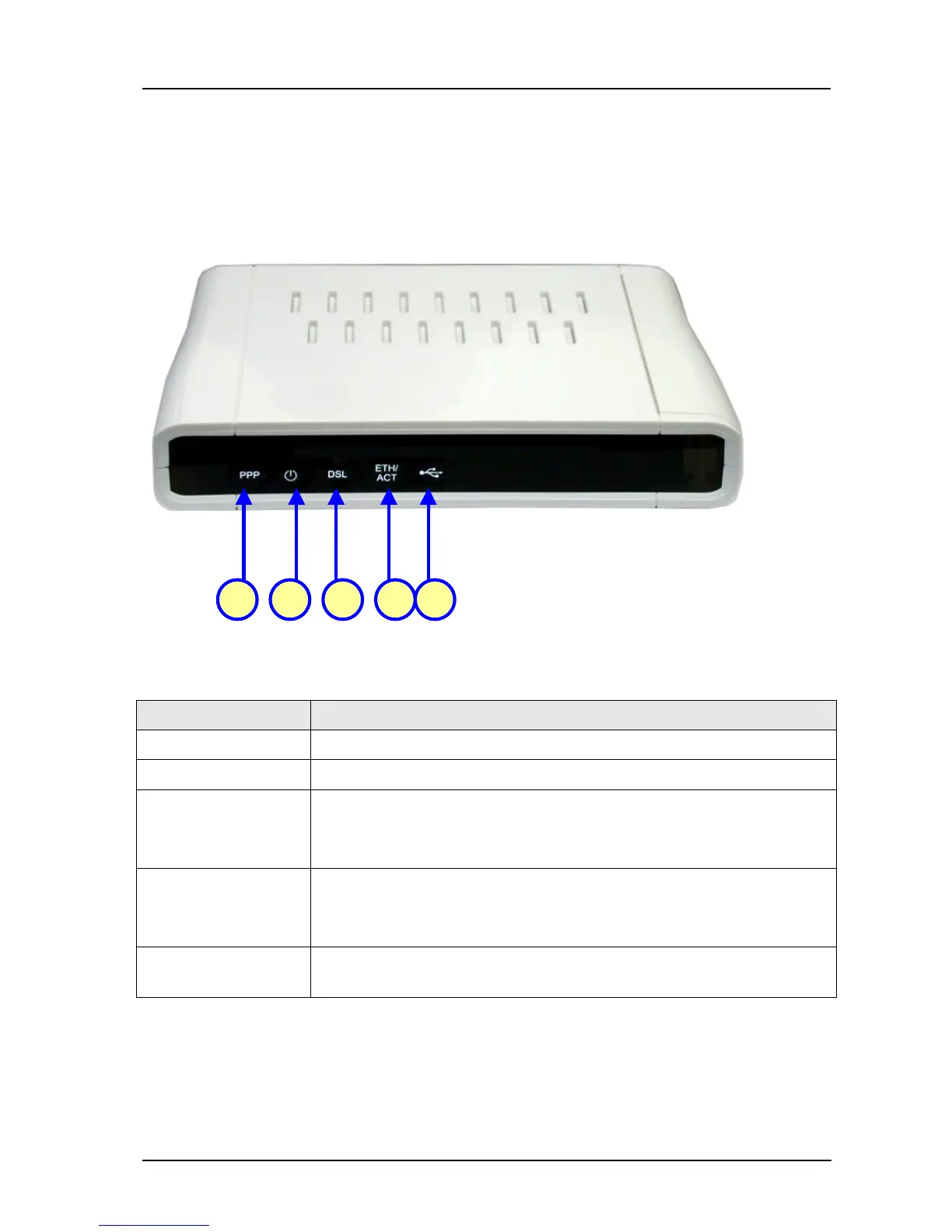

Fig 1-2 shows the front indicators of the ADSL Router.
Figure 1-2 : Front Panel Indicators (For Ethernet USB Combo Router)
LED Name Status & Meaning
1 PPP
Lights up when the PPP connection is established.
2 PWR
Lights up when power is supplied to the Router.
3 DSL
Lights up when the ADSL connection is established.
Flickers when the ADSL Router is trying to establish a connection with
the ADSL Service Provider.
4 ETH/ACT
Lights up
when the Ethernet cable is properly connected from your
ADSL Router to the Ethernet Card.
Flickers
when the ADSL is transmitting / receiving data.
5 USB Lights up
when the USB device driver is successfully installed in your
Computer/ Notebook.
1 3 52 4
