Aztech ADSL2+ Ethernet Router User Manual

ADSL2+ Ethernet USB Combo Router - User Guide
Page 19 of 42
3.7.2 New Connection
A new connection is a virtual connection. Your ADSL Router can support up to 8 different
(unique) virtual connections. If you have multiple different virtual connections, you may need to
utilize the static and dynamic routing capabilities of the modem to pass data correctly.

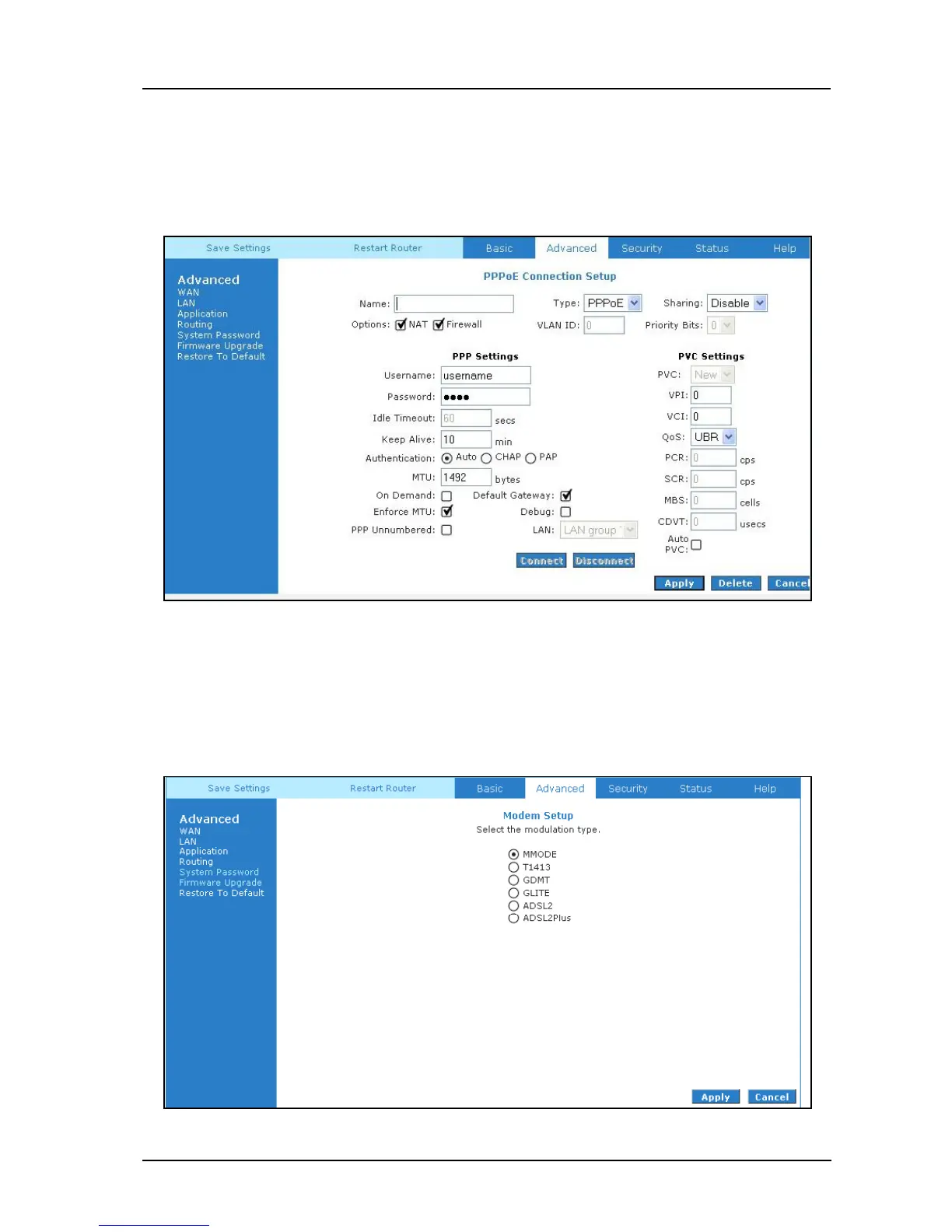

Figure 1-13 : New Connection (PPPOE Connection Setup)
3.7.3 ADSL Modulation
To configure the DSL modulation type, Click WAN, ADSL Modulation. This will bring up the
modem setup screen. Leave the default value if you are unsure or the DSL/ISP did not provide
this information. In most cases, this screen should not be modified.
Figure 1-14 : ADSL Modulation (Modem Setup)
