Aztech ADSL2+ Ethernet Router User Manual

ADSL2+ Ethernet USB Combo Router - User Guide
Page 31 of 42
3.7.14 Access Control
Access control allows you to open the access from the Internet LAN to the following
management ports of the DSL800EU:
• Telnet
• Web
• FTP
• TFTP
•
Secure Shell (SSH)
• SNMP
Fig 1-25 shows the default Access Control screen. The Access Control is disabled by default,
remote management from the WAN side IP addresses is denied, most services from the LAN
side IP addresses is enabled. Remember to:
1. Check
Enable Access Control to enable this feature. (This will enable the IP Access
List field).
2. You can select an IP from the IP Access List, or enter a new IP and check
ADD.
3. Change the LAN and / or WAN configurations of the IP address.
4. Click
Apply.

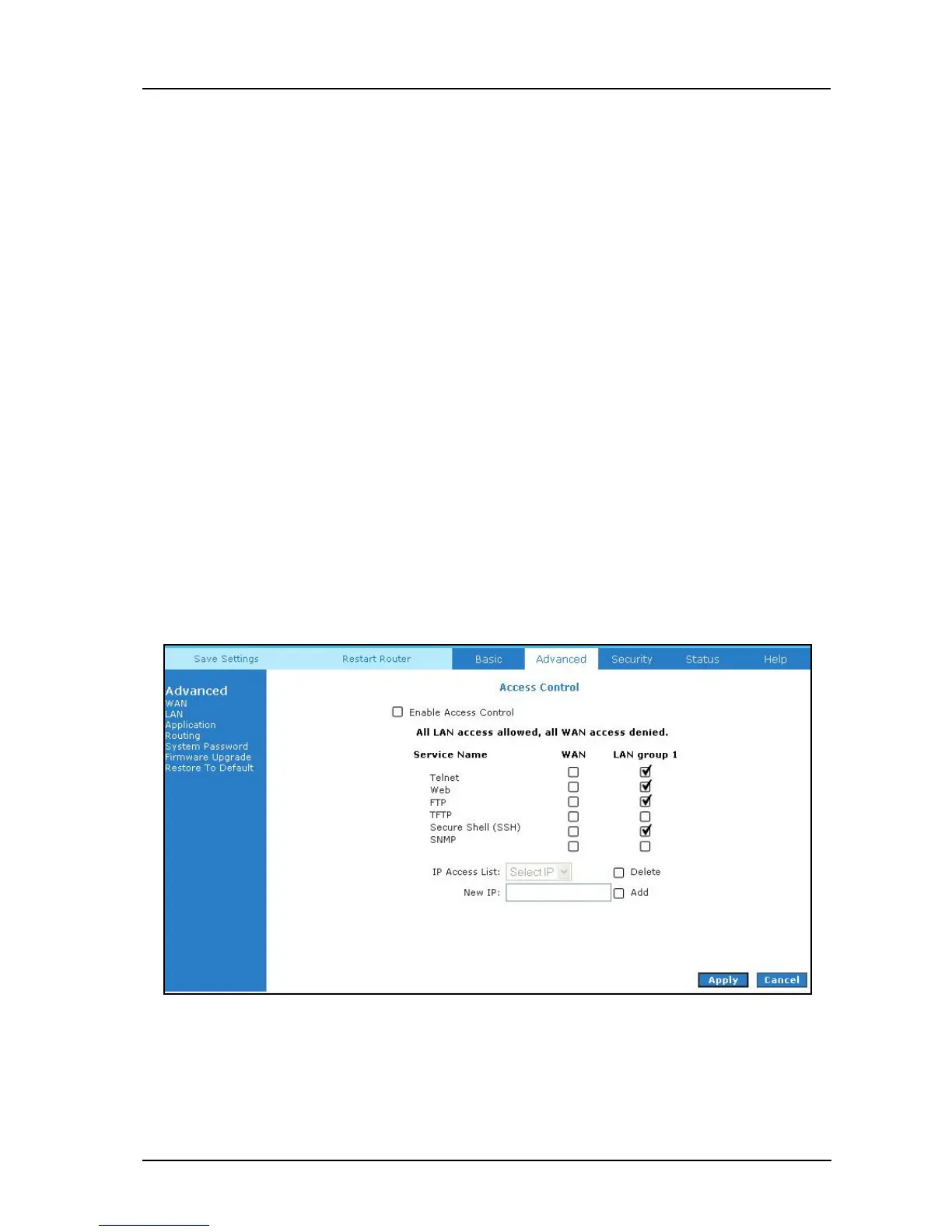

Figure 1-25 : Access Control
