ADSL2+ Ethernet USB Combo Router - User Guide
Page 11 of 42
3.2.2 Back Panel

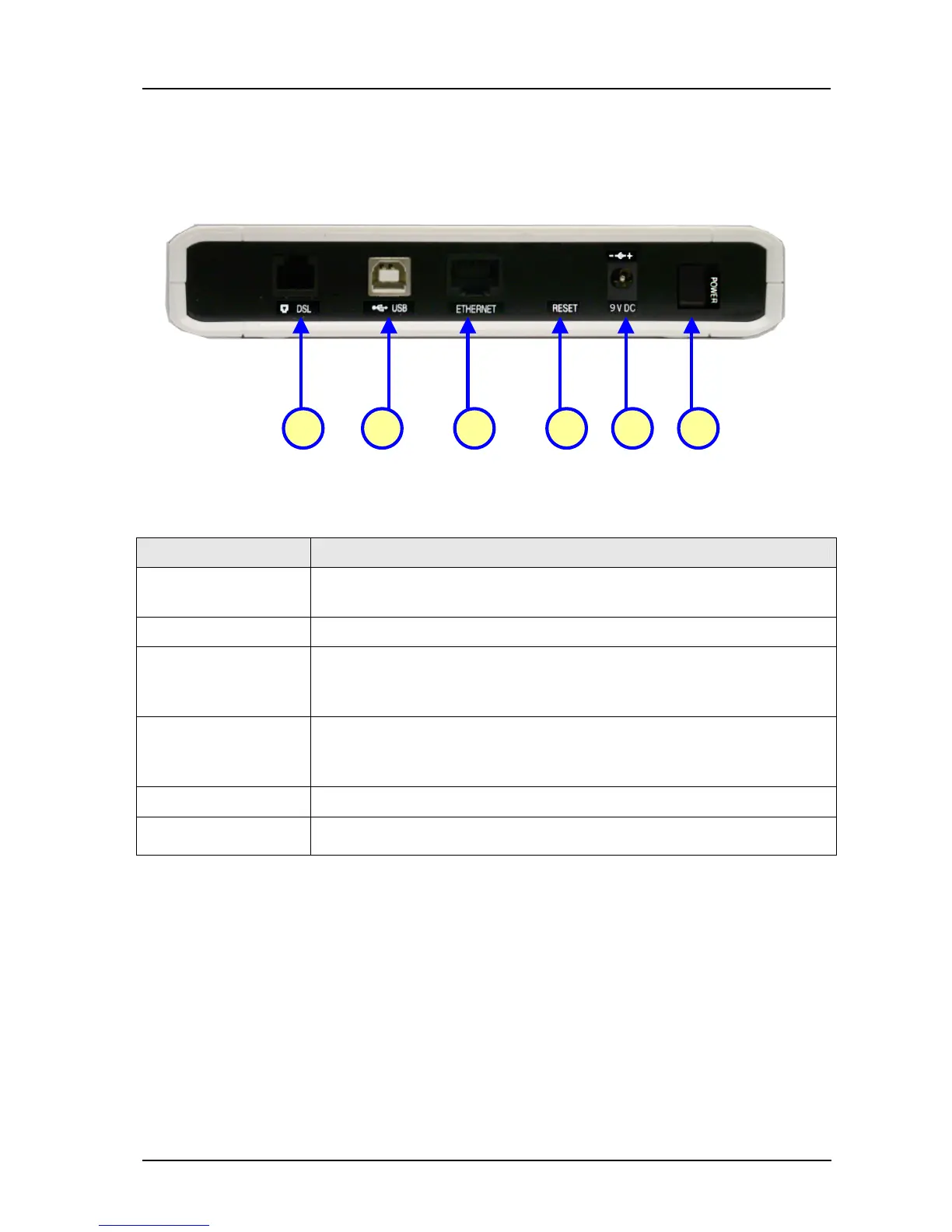

Fig 1-3 shows the back panel indicators of the ADSL Router
Figure 1-3 : Back Panel Indicators (For Ethernet USB Combo Router)
Label Description
1 DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket
(ADSL line).
2 USB
USB Port to connect to the USB port on your Computer/Notebook.
3 ETHERNET
10/100 Base-T Auto-MDI/MDIX (allows either cross or straight
cable) Ethernet jack (RJ-45) to connect to your Ethernet Network
card or Ethernet Hub/Switch.
4 RESET
To reset the ADSL Router, simply press the reset button for about
10 seconds (all customised settings that you have saved will be
lost!).
5 DC 9V
To connect to the Power Adapter that comes with your package.
6 On/Off Switch
Switch to power up and shutdown the modem
1 3 52 4 6
