ADSL2+ Ethernet USB Combo Router - User Guide
Page 16 of 42
3.6 Diagnostic Test
Diagnostic Test is used for investigating whether the ADSL Router is properly connected to the
WAN Network. See
Fig 1-8.
This test may take a few seconds to complete. To perform the test,
select your connection from the list and press the Test button. Before running this test, make
sure you have a valid DSL link.

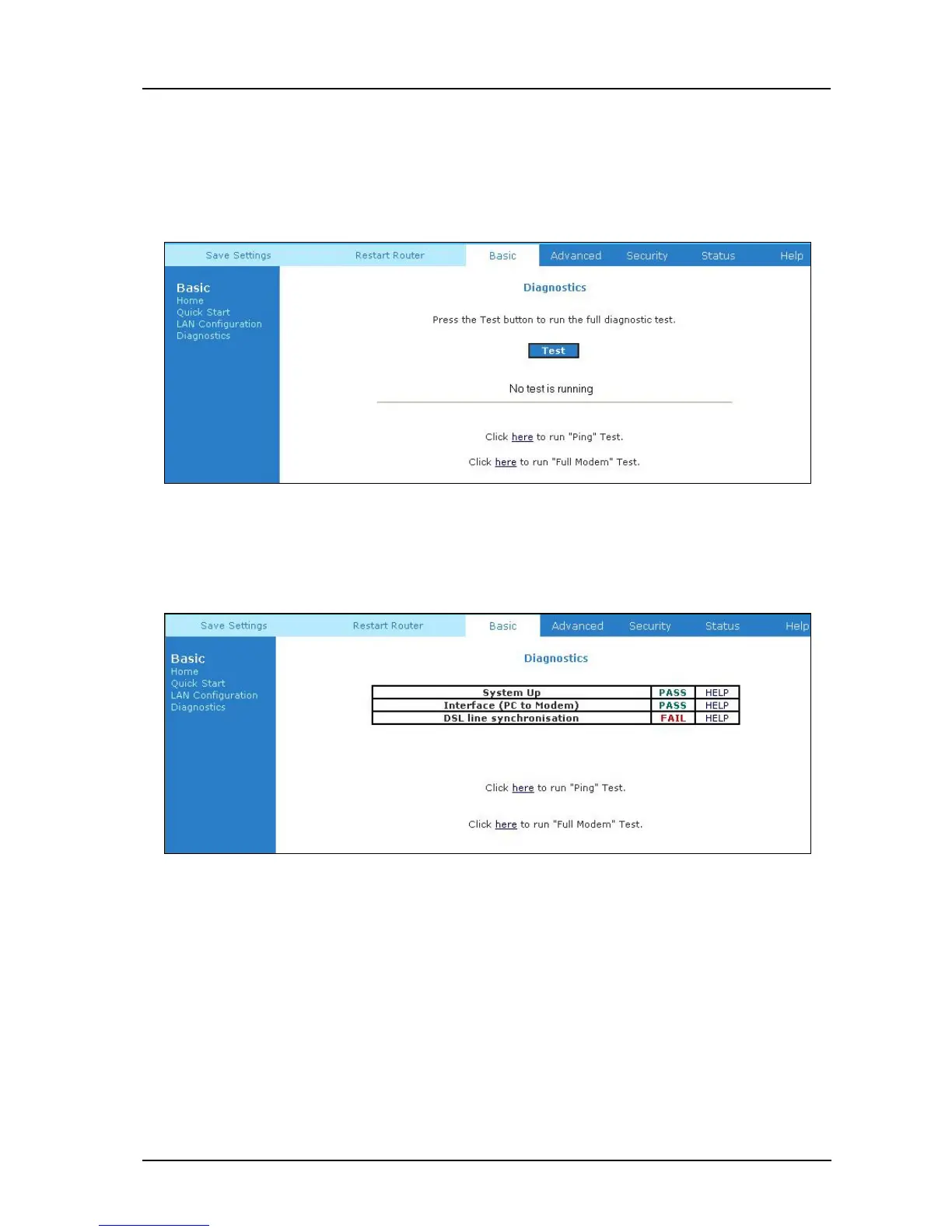

Figure 1-8 : Diagnostics Test Screen
After running the Diagnostic Test, the screen will indicate that the portion which pass or fail the
test. See
Fig 1-9. Please click on the Help links, which will provide remedy to the problem.
Figure 1-9: Diagnostic Test Result screen
