User Manual
Page 10 of 43
Pairing the Device
Your HomePlug AV devices by default are preconfigured to have a common Private Network Name.
Setting up your HomePlugAV network is as easy as 1,2 and 3.
1. Plug in your HomePlugAV devices side by side to easily observe the LED behavior. Wait until
the Power and PL-ACT LED turns ON to confirm that the connection has been established.

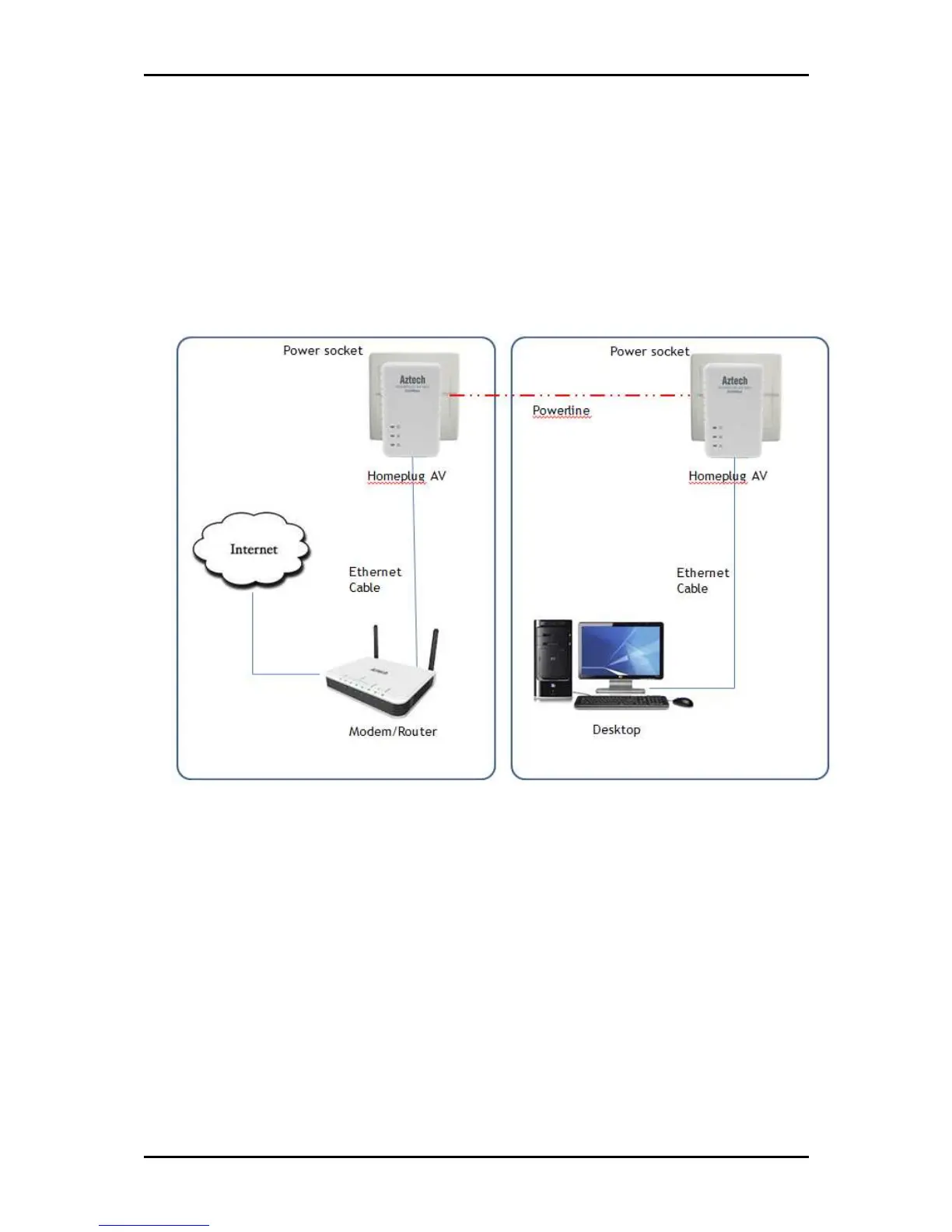

Location A Location B
2. In Location A plug in your HomePlugAV into the wall socket then connect it to your
Modem/Router’s Ethernet LAN port using an Ethernet cable.
3. In Location B plug in your HomePlugAV into the wall socket then connect it to your
computer’s Ethernet Port using an Ethernet cable. Your HomePlugAV is now ready to use.
