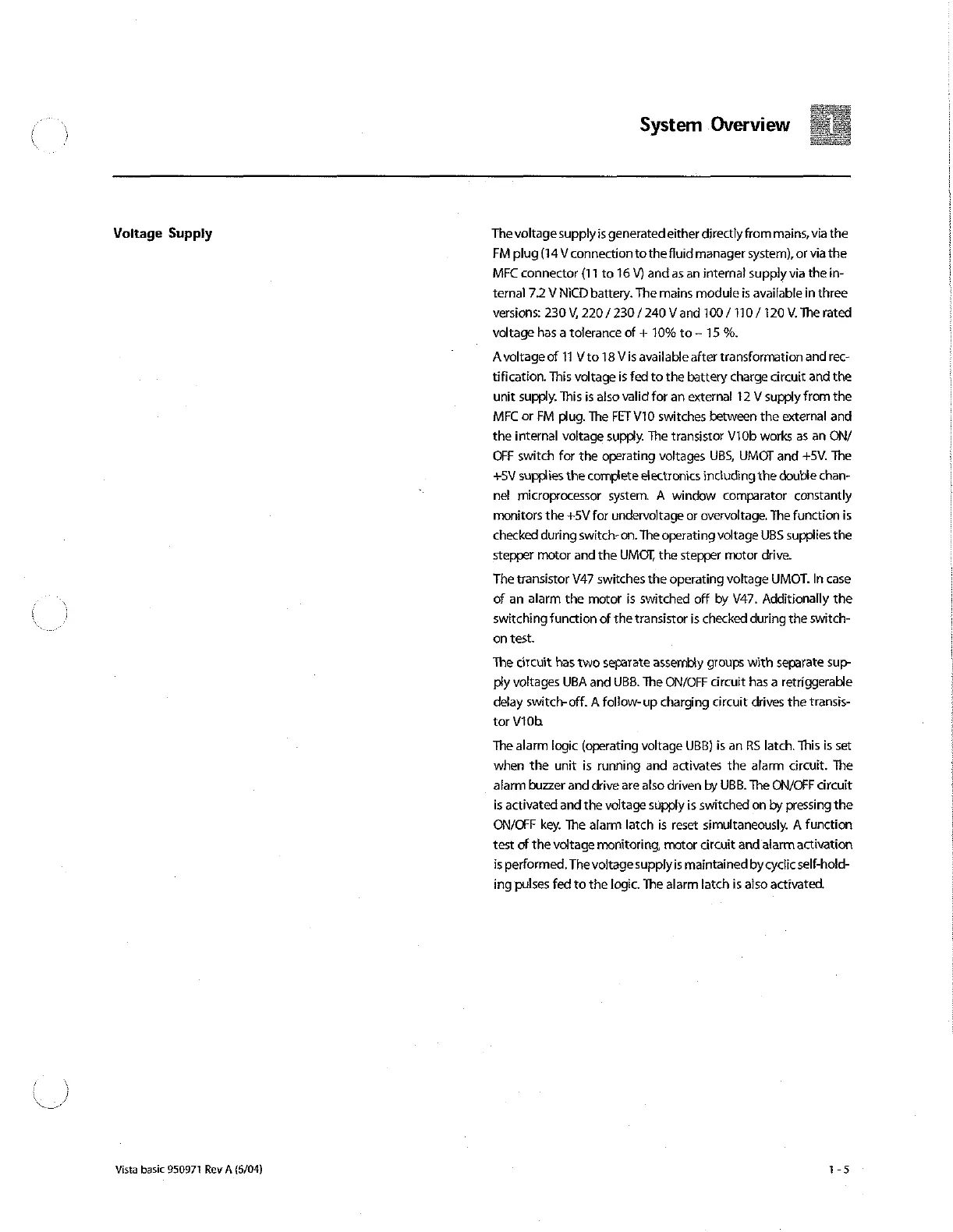

System
Overview
Voltage
Supply
The
voltage
supply
is
generated
either
directly
from
mains,
via
the
FM
plug
(14
V
connection
to
the
fluid
manager
system),
or
via
the
MFC
connector
(11
to
16
V)
and
as
an
internal
supply
via
the
in-
ternal
7.2
V
NiCD
battery.
The
mains
module
is
available
in
three
versions:
230
V,
220
/
230
/
240
V
and
100
/
110
/
120
V.
The
rated
voltage
has
a
tolerance
of
+
10%
to
15
%.
Avoltage
of
11
Vto
18
Vis
available
after
transformation
and
rec-
tification.
This
voltage
is
fed
to
the
battery
charge
circuit
and
the
unit
supply.
This
is
also
valid
for
an
external
12
V
supply
from
the
MFC
or
FM
plug.
The
FET
V10
switches
between
the
external
and
the
internal
voltage
supply.
The
transistor
VIOb
works
as
an
ON/
OFF switch
for
the
operating
voltages
UBS,
UMOT
and
+5V.
The
+5V
supplies
the
complete
electronics
including
the
double
chan-
nel
microprocessor
system.
A
window
comparator
constantly
monitors
the
+5V
for
undervoltage
or
overvoltage.
The
function
is
checked
during
switch-
on.
The
operating
voltage
UBS
supplies
the
stepper
motor
and
the
UMOT,
the
stepper
motor
drive.
The
transistor
V47
switches
the
operating
voltage
UMOT.
In
case
of
an
alarm
the
motor
is
switched
off
by
V47.
Additionally
the
switching
function
of
the
transistor
is
checked
during
the
switch-
on
test.
The
circuit
has
two
separate
assembly
groups
with
separate
sup-
ply
voltages
UBA
and UBB. The
ON/OFF
circuit
has
a
retriggerable
delay
switch:
off.
A
follow-up
charging
circuit
drives
the
transis-
tor
V10b.
The
alarm
logic
(operating voltage
UBB)
is
an RS
latch.
This
is
set
when
the
unit
is
running
and
activates
the
alarm
circuit.
The
alarm
buzzer
and
drive
are
also
driven
by
UBB.
The
ON/OFF
circuit
is
activated
and
the
voltage
supply
is
switched
on
by
pressing
the
ON/OFF
key.
The
alarm
latch
is
reset
simultaneously.
A
function
test
of
the
voltage
monitoring,
motor
circuit
and
alarm
activation
is
performed,
The
voltage
supply
is
maintained
by
cyclic
self-hold-
ing
pulses
fed
to
the
logic.
The
alarm
latch
is
also
activated.
Vista
basic
950971
Rev
A
(5/04)
1-5
