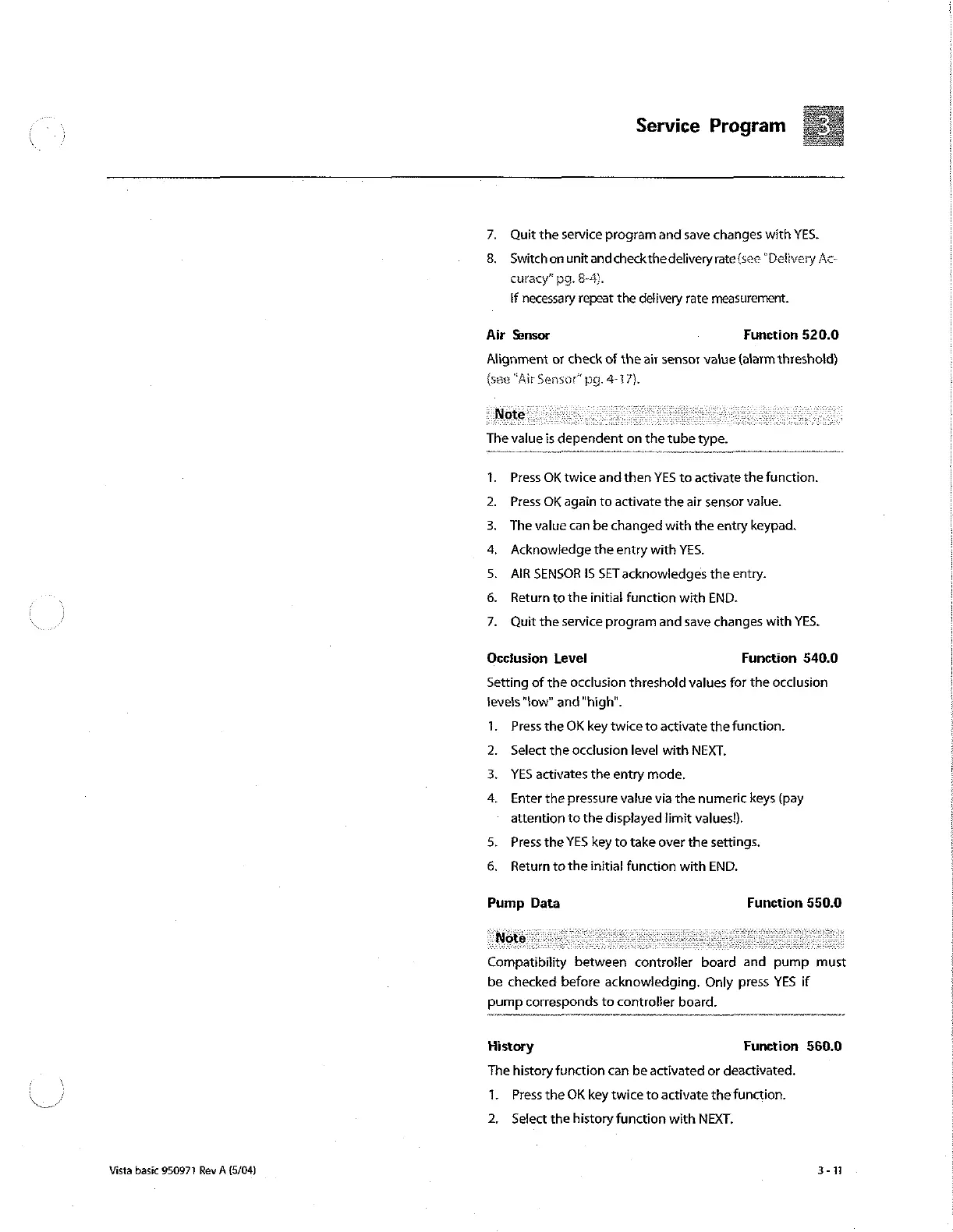

Service Program
Vista basic 950971 Rev A (5/04)
7. Quit the service program and save changes with YES.
8. Switch onunit and check the delivery rate (see “Delivery Ac-
curacy” pg. 8-4},
KH necessary repeat the delivery rate measurement.
Air Sensor Function 520.0
Alignment or check of the air sensor value (alarm threshold)
{see “Air Sensor” pg. 4-17).
“Not
The value is dependent on the tube type.
Press OK twice and then YES to activate the function.
Press OK again to activate the air sensor value.
The value can be changed with the entry keypad.
Acknowledge the entry with YES.
AIR SENSOR IS SET acknowledges the entry.
Return to the initial function with END.
NPD
M
ES
WN
>
Quit the service program and save changes with YES.
Occlusion Level Function 540.0
Setting of the occlusion threshold values for the occlusion
levels "low" and "high".
Press the OK key twice to activate the function.
Select the occlusion level with NEXT.
YES activates the entry mode.
PWN Enter the pressure value via the numeric keys (pay
attention to the displayed limit values!).
Y Press the YES key to take over the settings.
Return to the initial function with END.
Pump Data Function 550.0
Compatibility between controller board and pump must
be checked before acknowledging. Only press YES if
pump corresponds to controller board.
History Function 560.0
The history function can be activated or deactivated.
1. Press the OK key twice to activate the function.
2. Select the history function with NEXT,
