B. Braun Vista basic - Pump Housing

Unit Elements

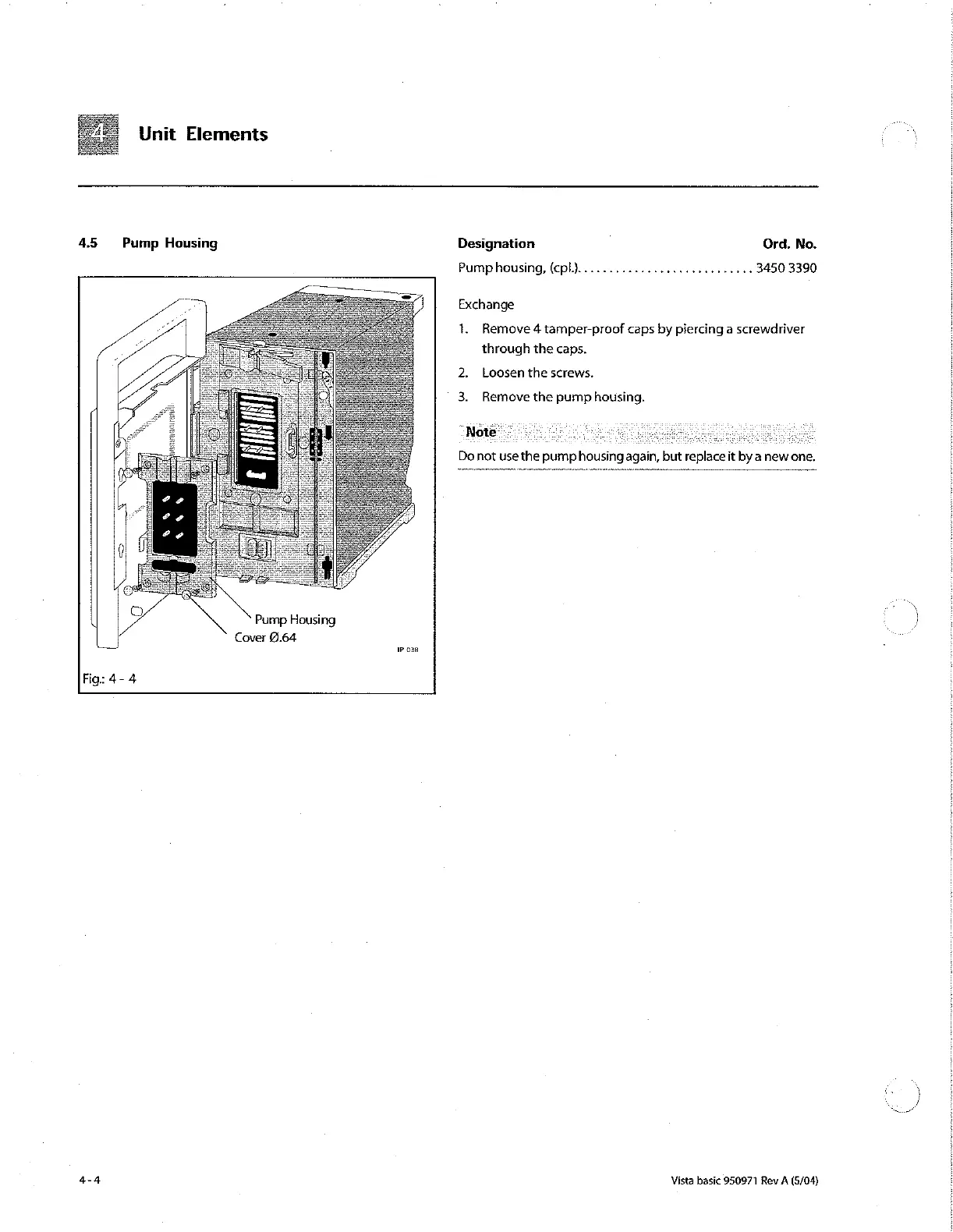

4.5 Pump Housing
Pump Housing
Cover 2.64
1P 038
Fig: 4-4
Designation Ord. No.
Pump housing, (cpt.}..............,..,,,..,..,,, 3450 3390
Exchange
1. Remove 4 tamper-proof caps by piercing a screwdriver
through the caps.
2. Loosen the screws.
3. Remove the pump housing.
Note.
Do not use the pump housing again, but replace it by a new one,
Vista basic 950971 Rev A (5/04)
~
