System Overview
Design The Vista basic is a compact volumetric peristaltic infusion pump.
Standard delivery rate range 0.1 to 999.9 ml/h with Intrafix and
0.1 to 800.0 ml/h with Vista Pump Set.
The unit is operated via a membrane keypad. It is equipped with
an LCD (liquid crystal display) for the display of the delivery rate
and the operating support of the user. Two control LEDs display
alarms, and the running of the infusion pump.
Guide for Short Pole Clamp ete
Drop
Sensor
Peristaitic
Pump
Handle na
Flow Inhibitor
MFC-Socket
Door Lock
LCD Display
Softkeys
Optical
Interface
P
Keypad fm Recessed lug
Potential Equalization
D Sol sock Air Sensor
won
Barcode Label Top sensor Socket
Control LEDs Mains Connection

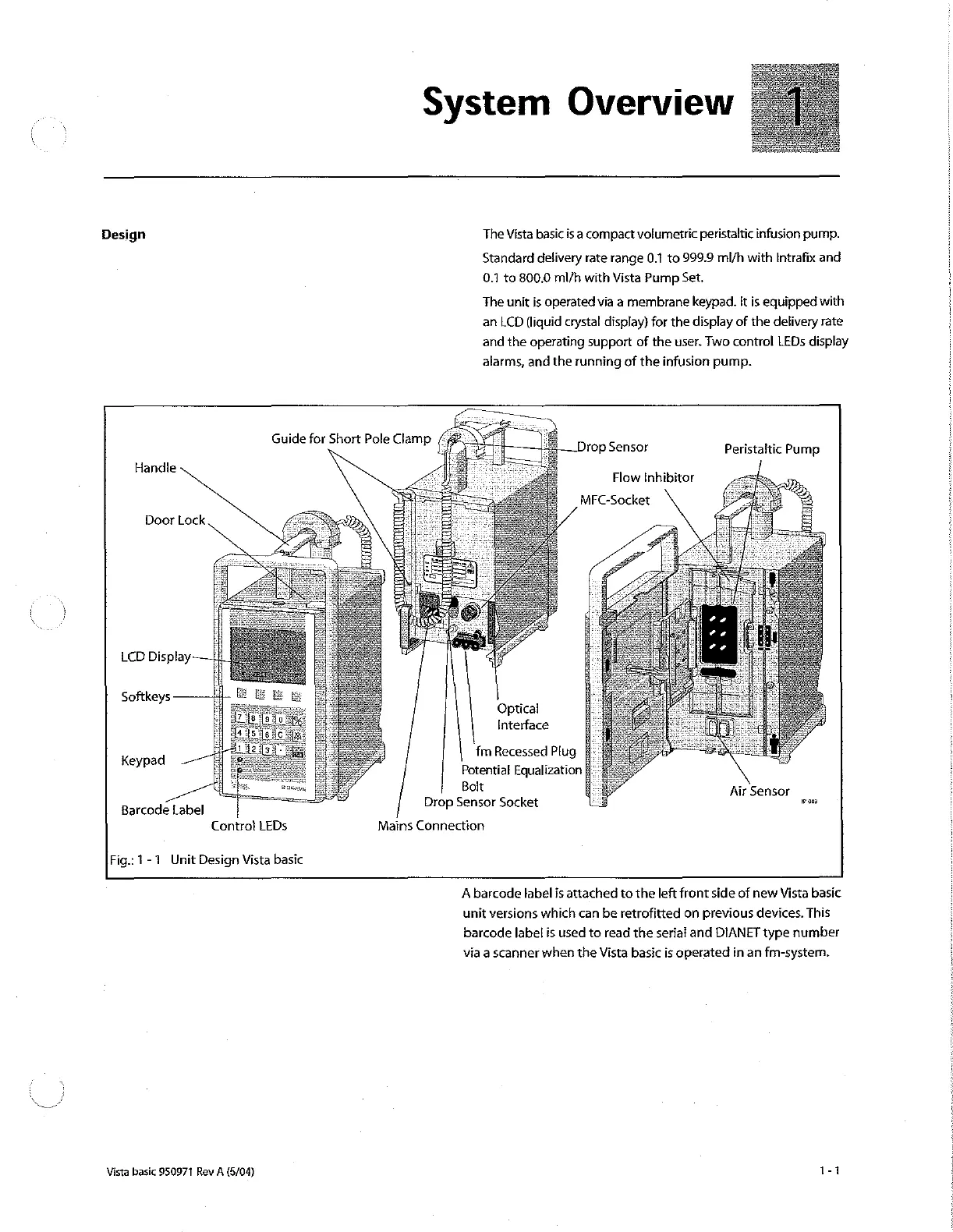

Fig.: 1-1 Unit Design Vista basic
Vista basic 950971 Rev A (5/04)
A barcode label is attached to the left front side of new Vista basic
unit versions which can be retrofitted on previous devices. This
barcode label is used to read the serial and DIANET type number
via a scanner when the Vista basic is operated in an fm-system.
