B2 HVA34 - 3.3 External Interlock and Control

3
General Description
© b2 electronic GmbH
DHV0078 b2 EN
17

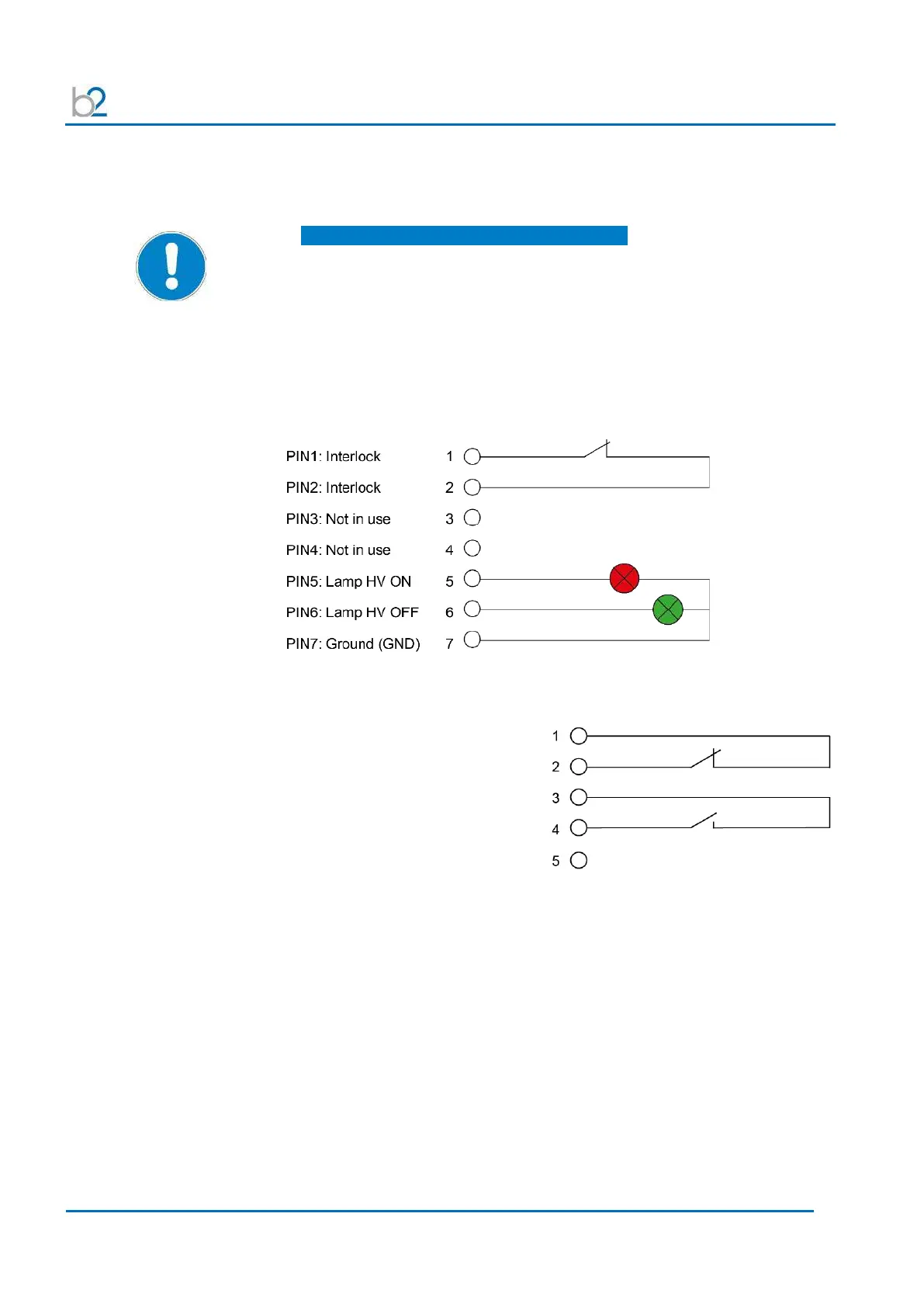

3.3 External Interlock and Control
PINOUT connection (optional)
PINOUT connection for EXTERNAL HV ON/OFF (HVA54-5)
NOTICE
Equipment
NOT included
Cables for remote
control and external lamps are not supplied by b2!
External
lamp requirements:
•
Rating: Max 1.2 W
•
Recommended colors: red, green
PIN 1: Normally closed contact (NCC)
PIN
2: Normally closed contact (NCC)
PIN 3: Normally open contact (NOC)
PIN 4: Normally open contact (NOC)
PIN 5: Ground (GND)
