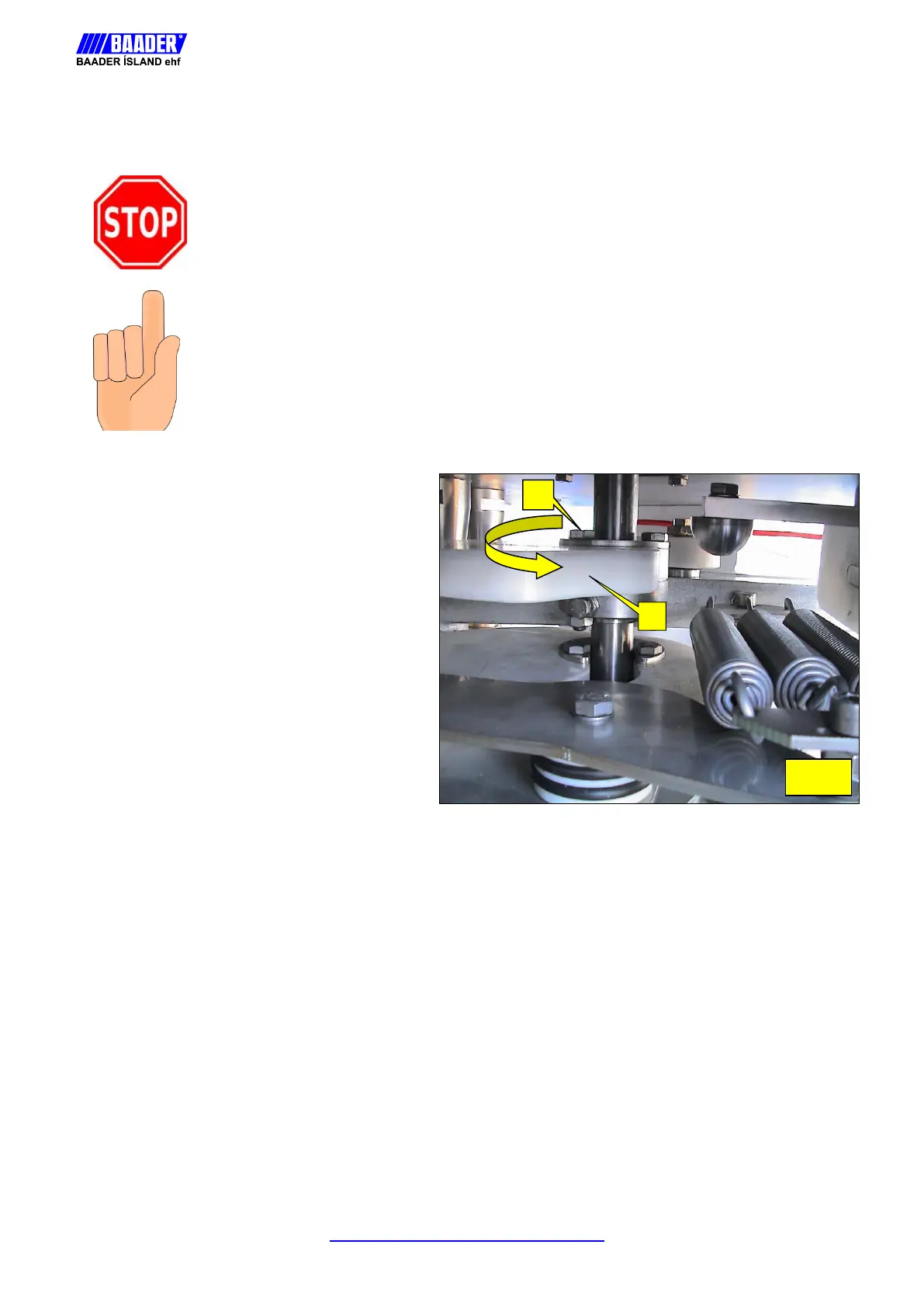

Fig 6
1
2
Adjustment of cycle start position
Prior to working on the machine switch the main electrical switch to the 0
position and lock it. Failure to comply may result in serious personal injury or
death.
Note:
The setting of the locking arm stop must be completed prior to adjusting the
cycle start position.
Loosen (do not remove) the 3 hexagon
head bolts (fig.6 item 1).
Turn the cam (fig.6 item 2) as far possible
anti-clock wise.
Re-tighten the 3 hexagon bolts
(fig.6 item 1)
(continued on next page)
