Adjustment of the transport fork setting distance.
Prior to working on the machine switch the main electrical switch to the 0
position and lock it. Failure to comply may result in serious personal injury or
death.
Manually rotate the machine as
described on page 13 to move the
transport fork as close as possible to the
knife.

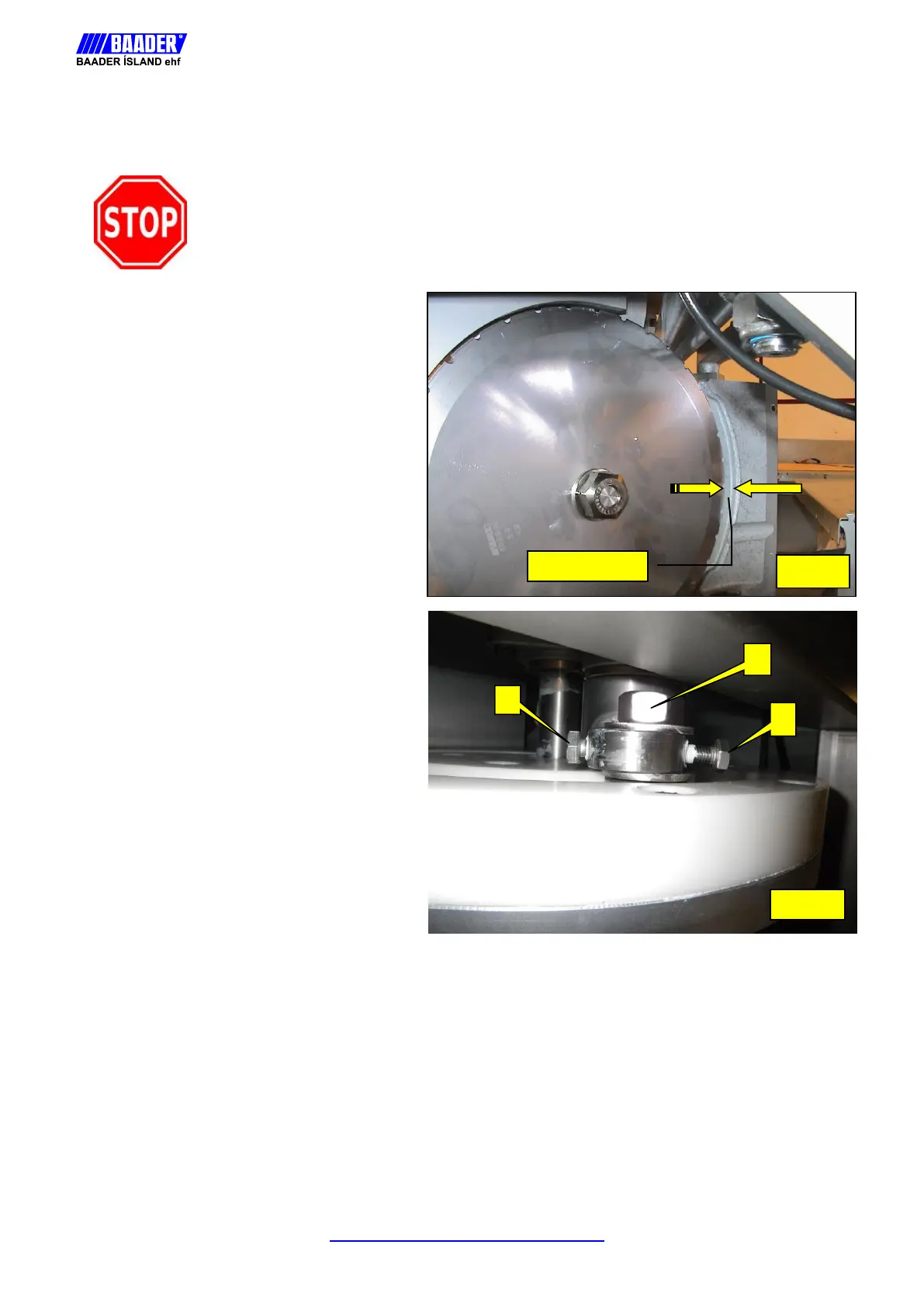

The transport fork should be 15 to
20mm from the circular knife, see
(fig.11). For adjustment see (fig.13).
Slacken the hexagon nut (fig.13 item 1)
and using the 2 adjusting bolts adjust
(fig.13 items 2 and 3) the position of the
transport fork.
It is important to ensure that the bolts
(fig.13 items 2 and 3) are re-tightened
after adjustment.
When complete re-tighten the hexagon
nut.
Fig 12
15 – 20 mm
1
2
3
Fig 13
